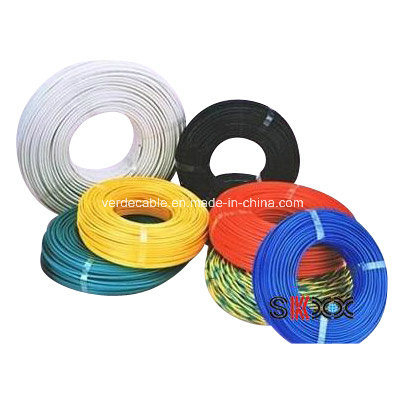

Flame Resistance PVC Insulated Electric cables House Wiring for building Light
Rated voltage 300/500V,450/750V Electric Wiring
Standard:GB 5023.1, IEC 60227 ,BS6004,B S6242Y 3
Structure:
Conductor:Solid or Stranded Copper
Insulation:PVC
Sheathing:PVC
Specification:
0.5mm2, 0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2,6.0mm2........185mm2
| Nominal section | wire diameter | Nominal thickness | Overall Diameter | Ref. weight |
| mm2 | mm | of Insulation (mm) | Max.(mm) | kg/km |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 19.2 |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 20.6 |
| 2.5 | 1/1.76 | 0.8 | 3.9 | 30.8 |
| 4 | 1/2.25 | 0.8 | 4.4 | 45.5 |
| 6 | 1/2.76 | 0.8 | 4.9 | 65 |
| 10 | 7/1.35 | 1.0 | 6.4 | 110 |
| 16 | 7/1.70 | 1.0 | 8.0 | 170 |
Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request
Packing:
100Meter per Roll, then put into PP Plastic bags or into Cartons.
Drum or According to the customer's request

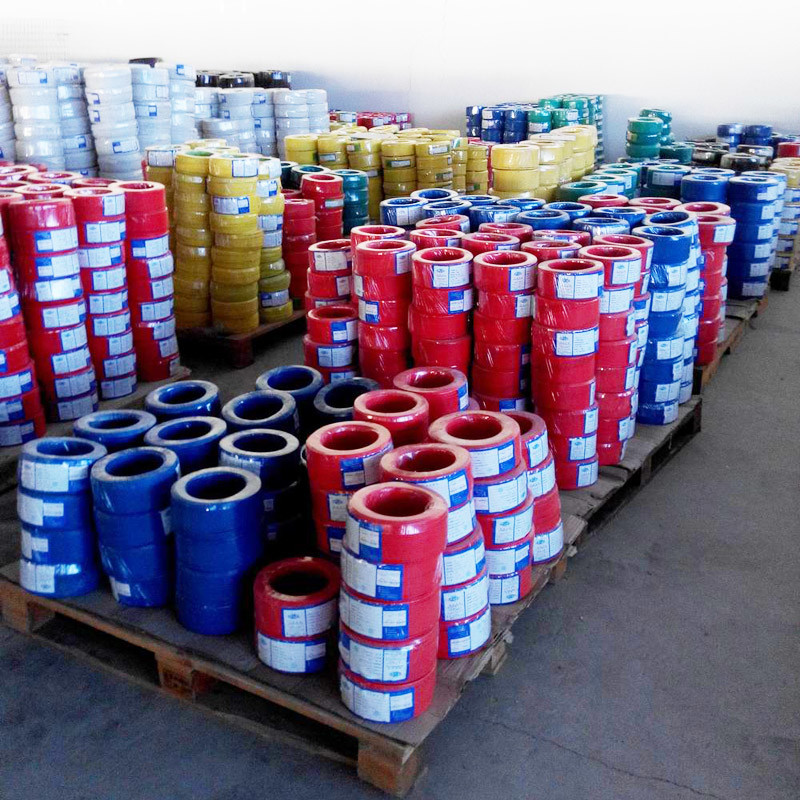

Stock in the Storage:

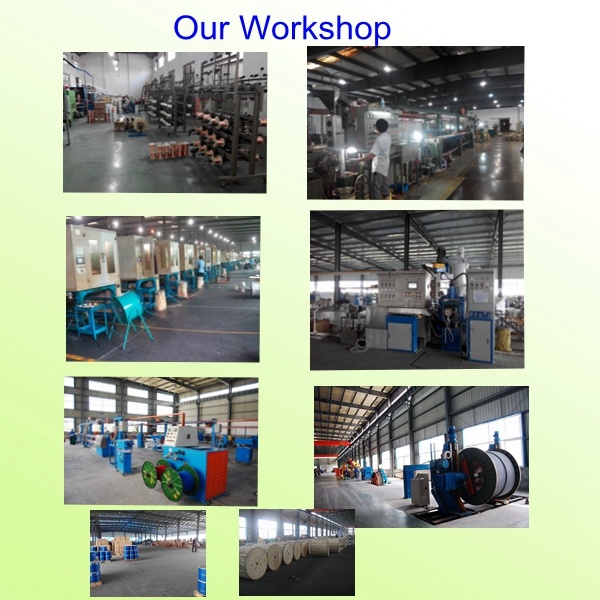

Our workshop
