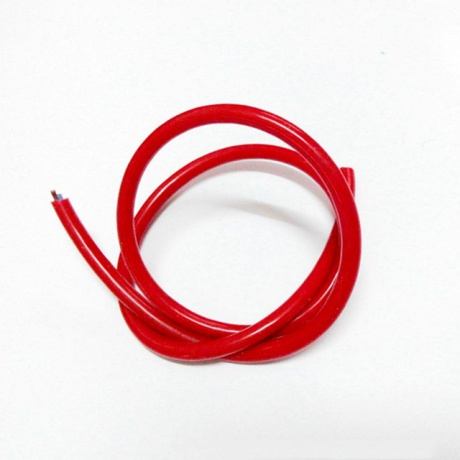

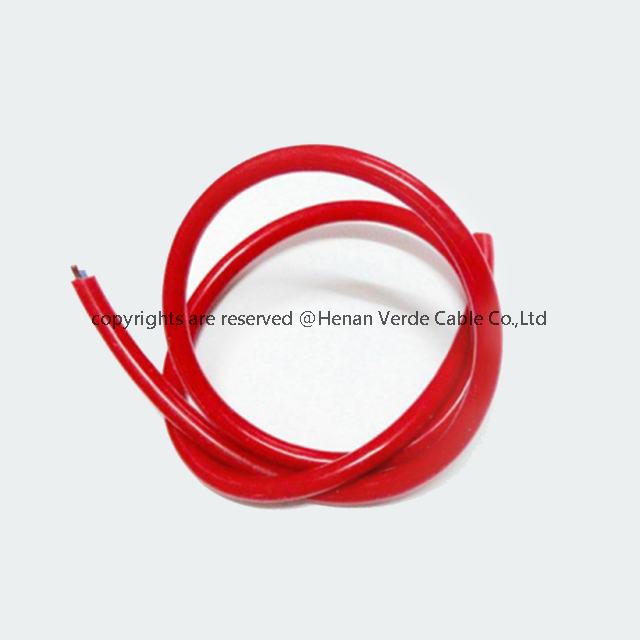

1.Description:High Temperature Resistant Flexible Silicone Wire with Low voltage and High Voltage
2.Cable Structure:
Conductor: Stranded Tinned Copper wire
Insulation: Silicone Rubber
Sheath: Non-sheath or Silicone sheath
Unshield or Tinned coper wire braided Shield
If need as per customer's request,Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber
3.Specification:
0.35mm2,0.5mm2, 0.75mm2, 1.0mm2, 2.0mm2,2.5mm2, 4.0mm2,6mm2...10mm2
AWG Size:AWG10,AWG12,AWG14,AWG16, AWG18, AWG20,....AWG26...till to AWG32
4.Main Property and Technical Data
Rated Voltage:Low voltage(DC):300/500V,450/750V, 0.6/1kV,
High voltage(DC):6KV, 10KV, 20KV ,30KV, 45KV, 50KV HV Silicone wire
Temperature Ratings: -100ºC~+250ºC
If you want to know more technical specification, pls directly contact us.
Conductor | Insulation | |||||||||||
3KV | 6KV | 10KV | 20KV | 50KV | ||||||||
AWG | Conductor construction NO. *φ mm | Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm |
26 | 7*0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 2.5 | 5.49 |
24 | 7*0.20 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 2.5 | 5.6 |
22 | 7*0.26 | 0.78 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.78 | 1.3 | 3.36 | 2.5 | 5.76 |
20 | 7*0.30 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 2.5 | 5.91 |
18 | 7*0.40 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 2.5 | 6.17 |
16 | 7*0.50 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 2.5 | 6.5 |
14 | 43*0.25 | 1.83 | 0.6 | 3.03 | 0.8 | 3.43 | 1.2 | 4.23 | 1.5 | 4.83 | 3 | 7.83 |
