In industrial automation, even minor signal issues can disrupt an entire production line.
Noise, unstable transmission, or cable wear often lead to system failures and unplanned downtime.

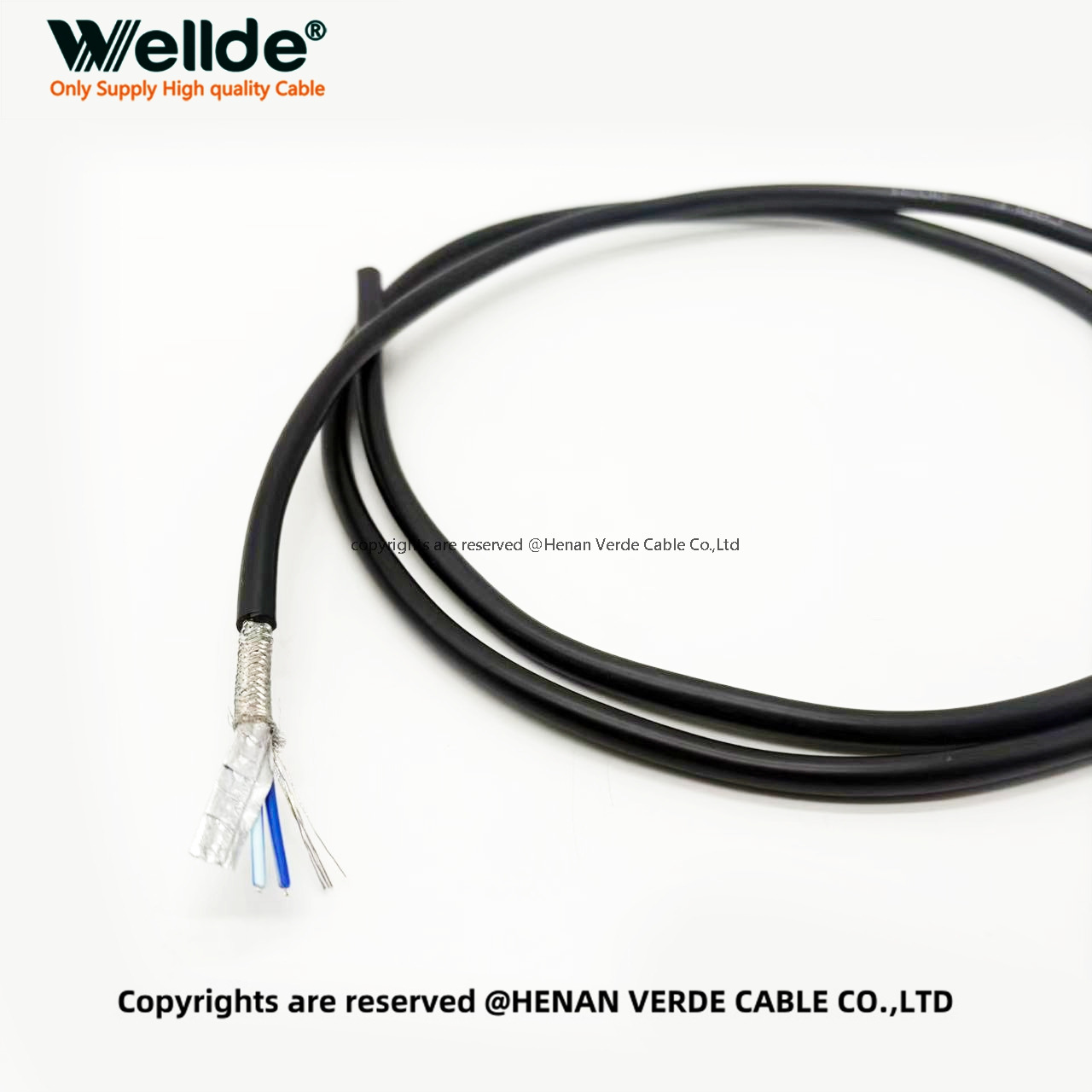

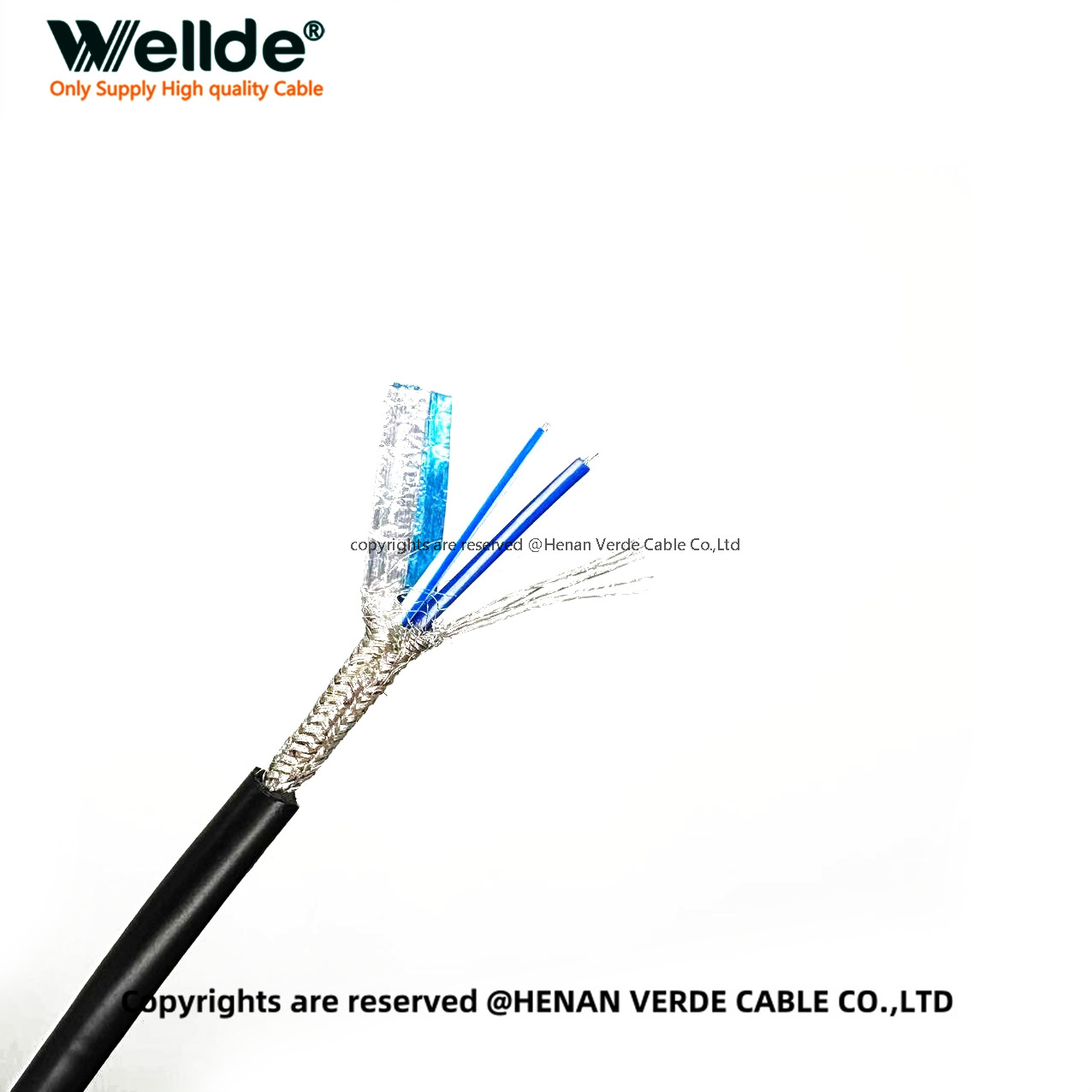

Therefore, we designed our two-core 24 AWG signal control cables to provide stable, low-noise, and long-lasting signal performance in any control environment.
They ensure precise communication between sensors, controllers, and PLC systems, keeping your operations running smoothly.
We've compiled answers to some of our customers' pre-order questions.
Customer 1:
Our signal cables are extremely unstable whenever our equipment is running at full power.
Solution:

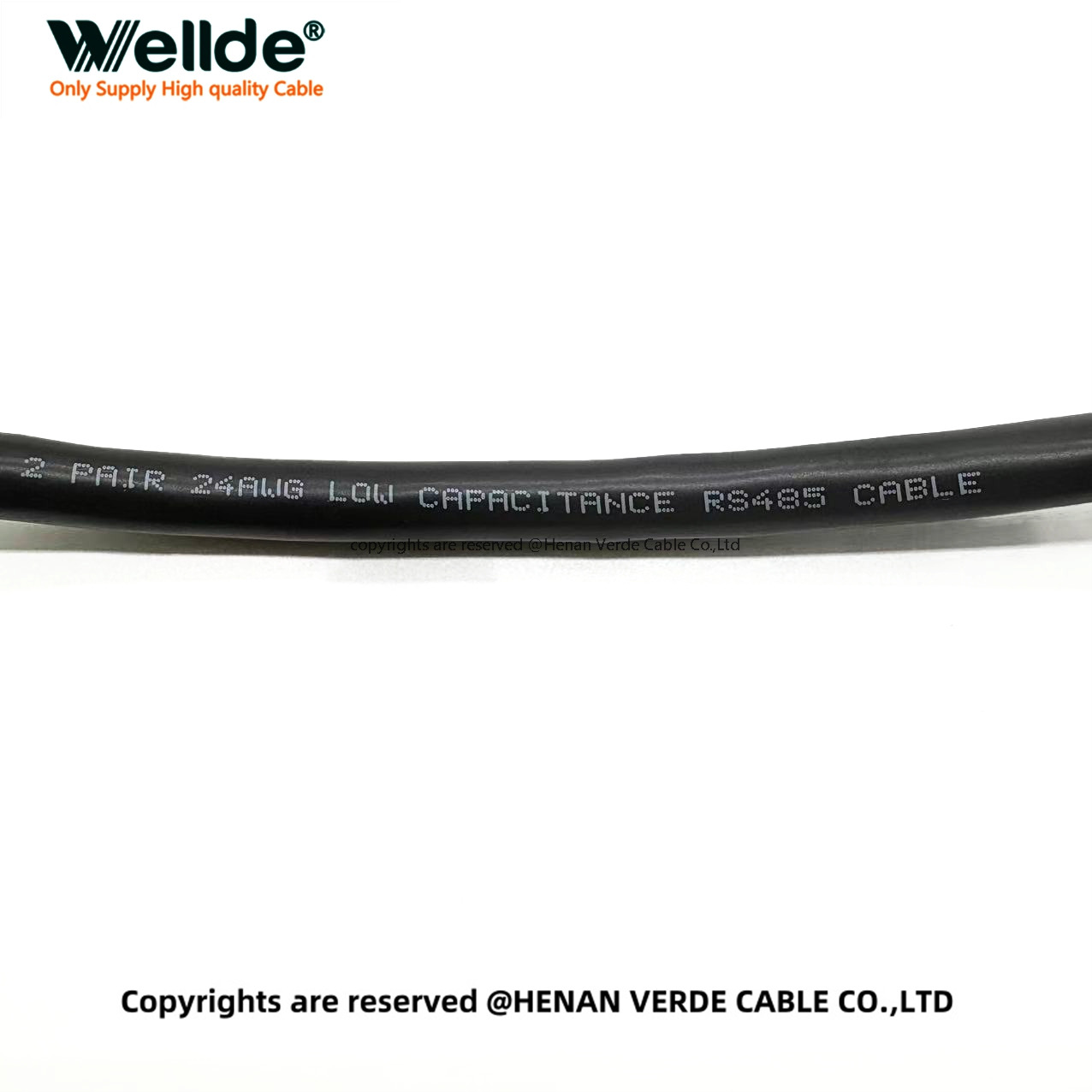

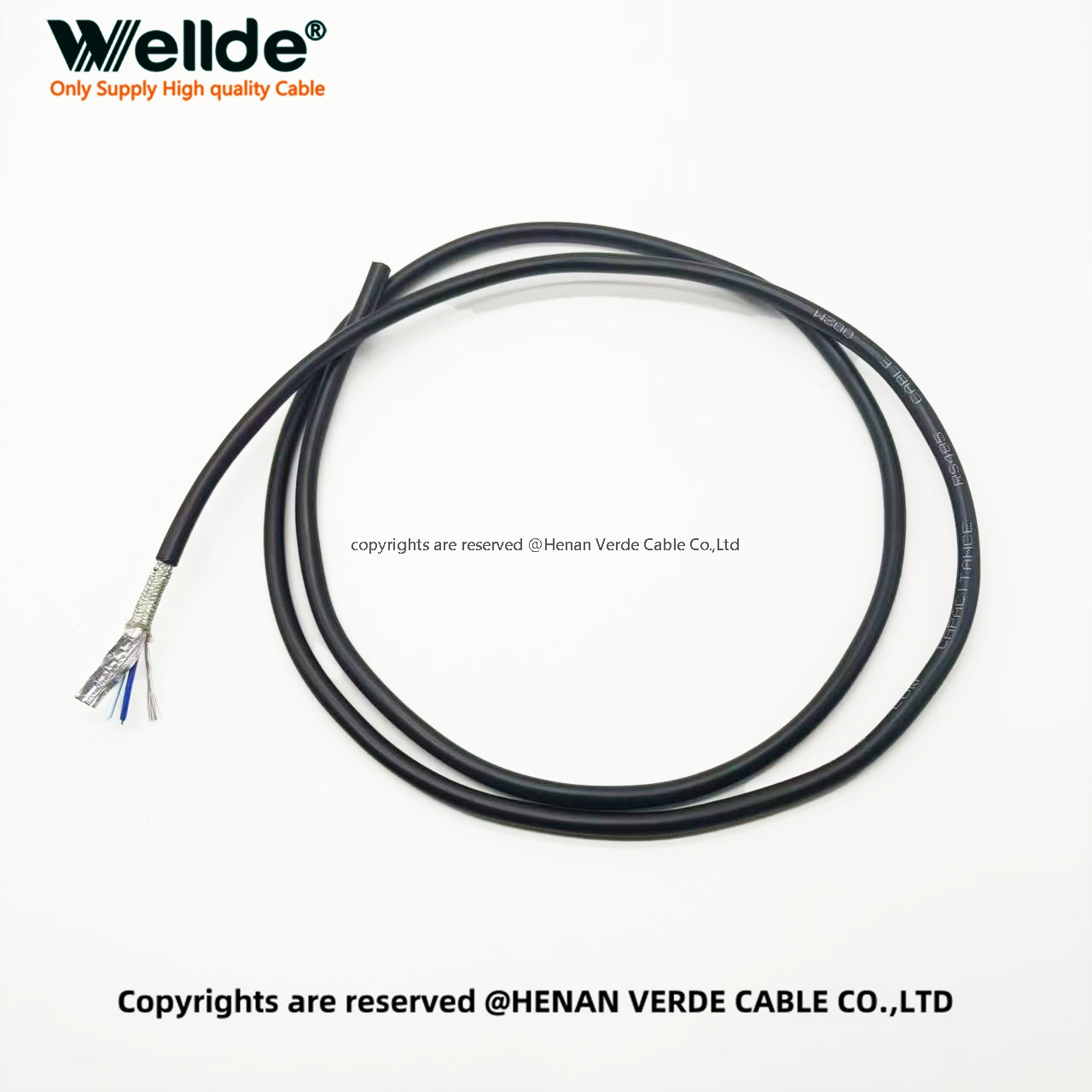

This shielded RS485 cable features tinned copper conductors and twisted-pair construction to minimize crosstalk and signal loss. Your control signals remain clear and accurate, even under high electrical loads, reducing susceptibility to electrical noise.
Customer 2:
Electromagnetic interference from nearby machinery is significant.
Solution:
Select shielded cables with either an aluminum foil or copper braid. It effectively blocks electromagnetic interference, ensuring clear, interference-free communications in industrial automation and sensor networks.
Customer 3:
We want cables that can last longer in harsh environments.
Solution:
Our PVC or LSZH jackets are heat-resistant, oil-resistant, and abrasion-resistant, while maintaining flexibility.
They are ideal for applications requiring extreme durability, such as factory automation, instrumentation, and control cabinets.
The cable impedance approaches 120 Ω.
Customer 4:
Can we customize cables for different projects?
Solution:
Yes.

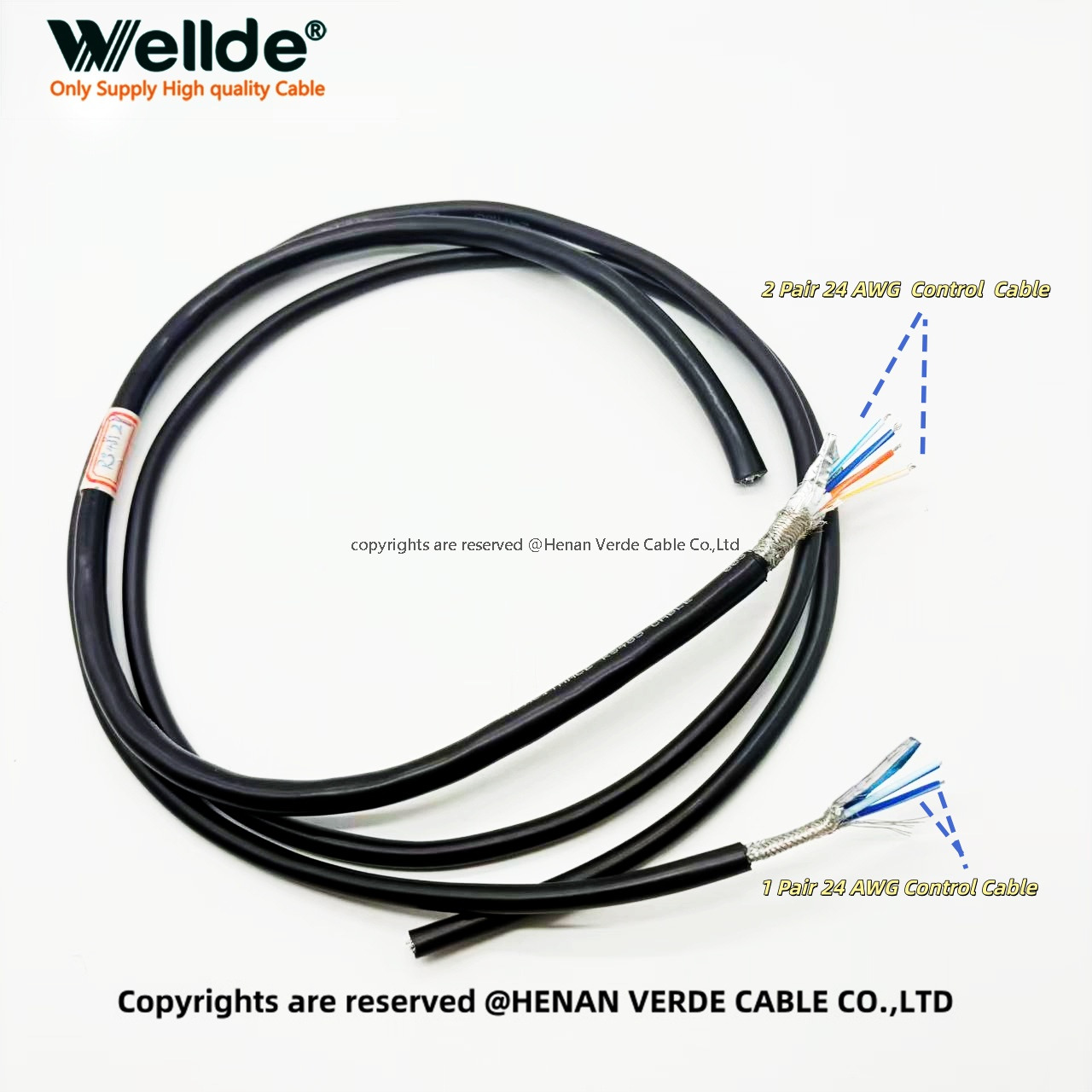

We offer signal and control cables in various specifications: 22AWG/24AWG/18AWG/28AWG, 2core/4core/3 pair.
We offer custom lengths, colors, and shielding options to meet your wiring layout and identification needs.

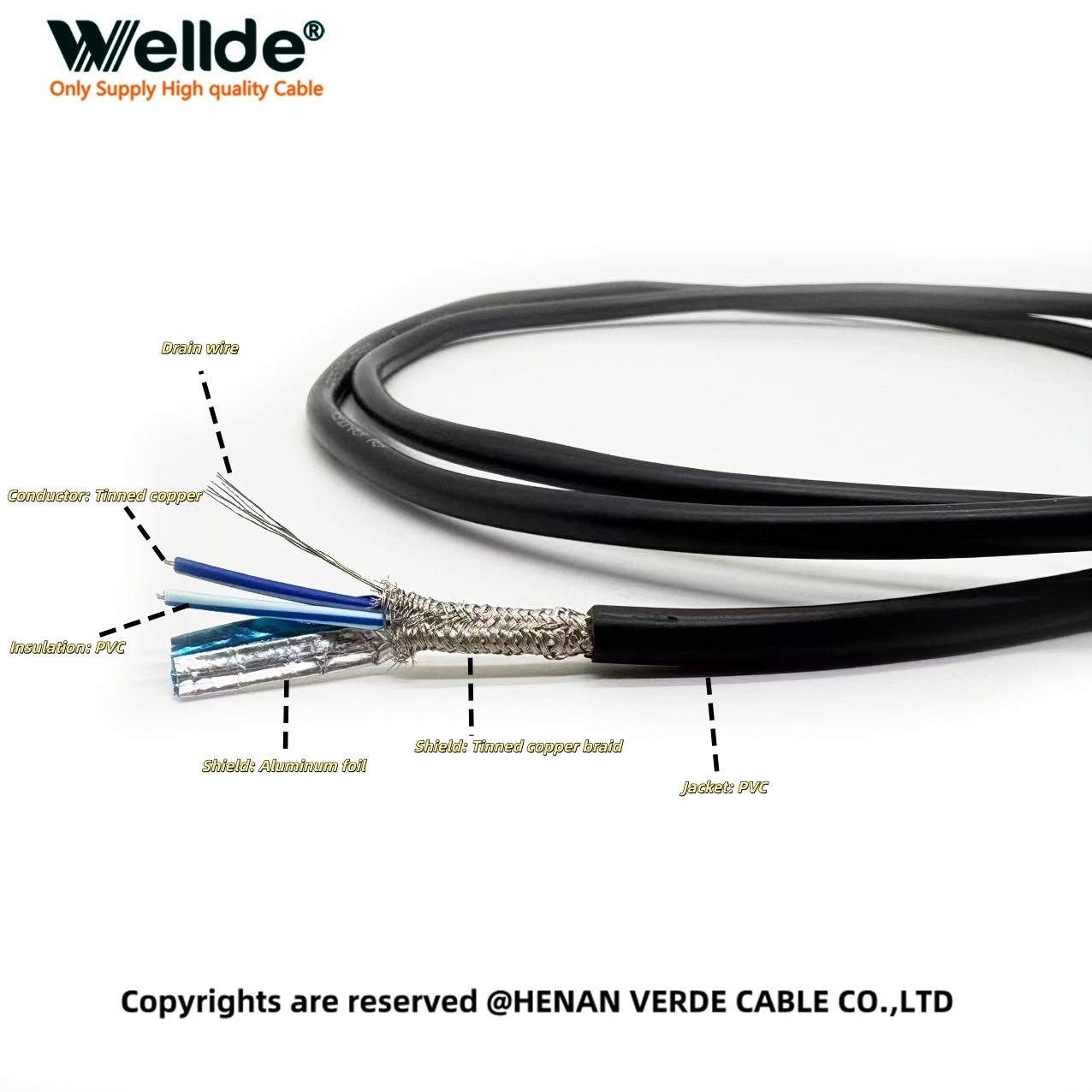

| Category | Item | Description |
|---|---|---|
| Construction | Number of Cores | 2 |
| Conductor Material | Tinned Copper | |
| Conductor Size | 24 AWG | |
| Insulation Material | PVC (Light Blue, Dark Blue) | |
| Shielding | Aluminum Foil + Tinned Copper Braided Shield | |
| Outer Sheath Material | PVC (Black) | |
| Insulation Outer Diameter | 1.69 mm | |
| Sheath Outer Diameter | 6.11 mm | |
| Sheath Thickness | 1.63 mm / 1.46 mm / 1.42 mm | |
| Electrical Properties | Rated Voltage | 300 V |
| Conductor Resistance (20°C) | ≤ 89 Ω/km | |
| Insulation Resistance | ≥ 100 MΩ·km | |
| Capacitance (core to core) | Approx. 70 pF/m | |
| Test Voltage | 2000 V / 1 min | |
| Mechanical Properties | Operating Temperature Range | -20°C to +80°C |
| Minimum Bending Radius | 10 × Cable OD | |
| Flame Retardant Rating | IEC 60332-1 | |
| Jacket Hardness | 90±5 Shore A | |
| Application | Signal transmission, automation control, sensor wiring, instrumentation |
