High Temperature Resistance HV Flexible Rubber Cable SiliconeWire
Different Specifications can be Customized according to your special requirement.
1.Description:
Voltage:10KV 20KV 30KV 50KV HV Silicone wire
Temperature Ratings: -100ºC~+250ºC

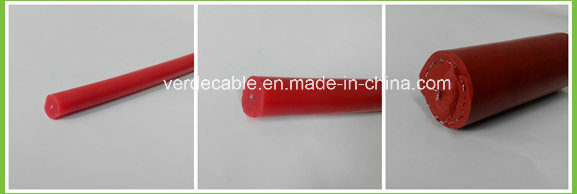

2.Cable Structure:
Conductor: Annealed Copper,Tinned Copper
Insulation: Silicone Rubber
If need as per customer's request,Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber
3.Standard:
1).UL ,IEC60502 BS ASTM
2).Different specification and standard can be customized.
4. Main Technical Data
| Conductor | Insulation | |||||||||||
| 3KV | 6KV | 10KV | 20KV | 50KV | ||||||||
| AWG | Conductor construction NO. *φ mm | Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm |
| 26 | 7*0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 2.5 | 5.49 |
| 24 | 7*0.20 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 2.5 | 5.6 |
| 22 | 7*0.26 | 0.78 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.78 | 1.3 | 3.36 | 2.5 | 5.76 |
| 20 | 7*0.30 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 2.5 | 5.91 |
| 18 | 7*0.40 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 2.5 | 6.17 |
| 16 | 7*0.50 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 2.5 | 6.5 |
| 14 | 43*0.25 | 1.83 | 0.6 | 3.03 | 0.8 | 3.43 | 1.2 | 4.23 | 1.5 | 4.83 | 3 | 7.83 |
5.Type Description &Specification Range we produce
| Type & Description we can supply | Core Number | Nominal cross section area (mm2) |
| Tinned copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~to500 for single core 1.5 ~240 for multi-core |
| Copper conductor Silicone Rubber Insulation and sheathed cable with Steel Tape Armoring | 3, 4, 5, 3+1,3+2, 4+1 | 1.5~240 |
| Flame Retardant Flexible Type Copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
| Flame Retardant Copper conductor Silicone Rubber Insulation and sheathed rubber cable With Copper wire Braided Shielding Type | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
| Copper conductor Silicone Rubber Insulation and sheathed rubber cable For Moving usage | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |

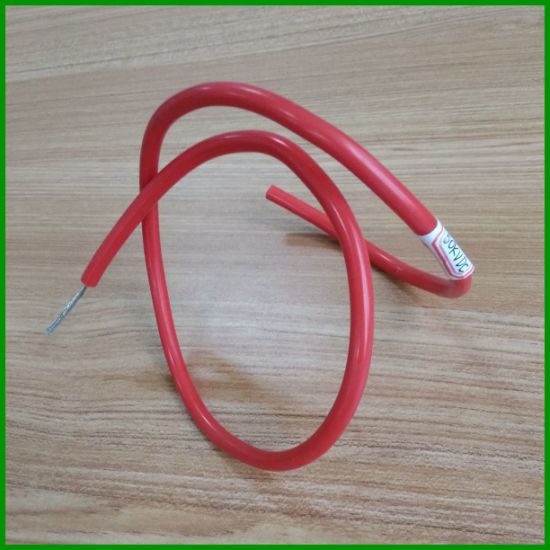

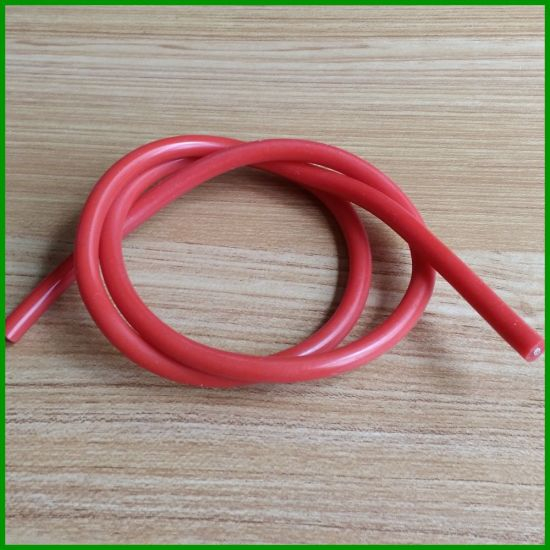

Silicone Cable with 10KV 20KV ~ 50KV
