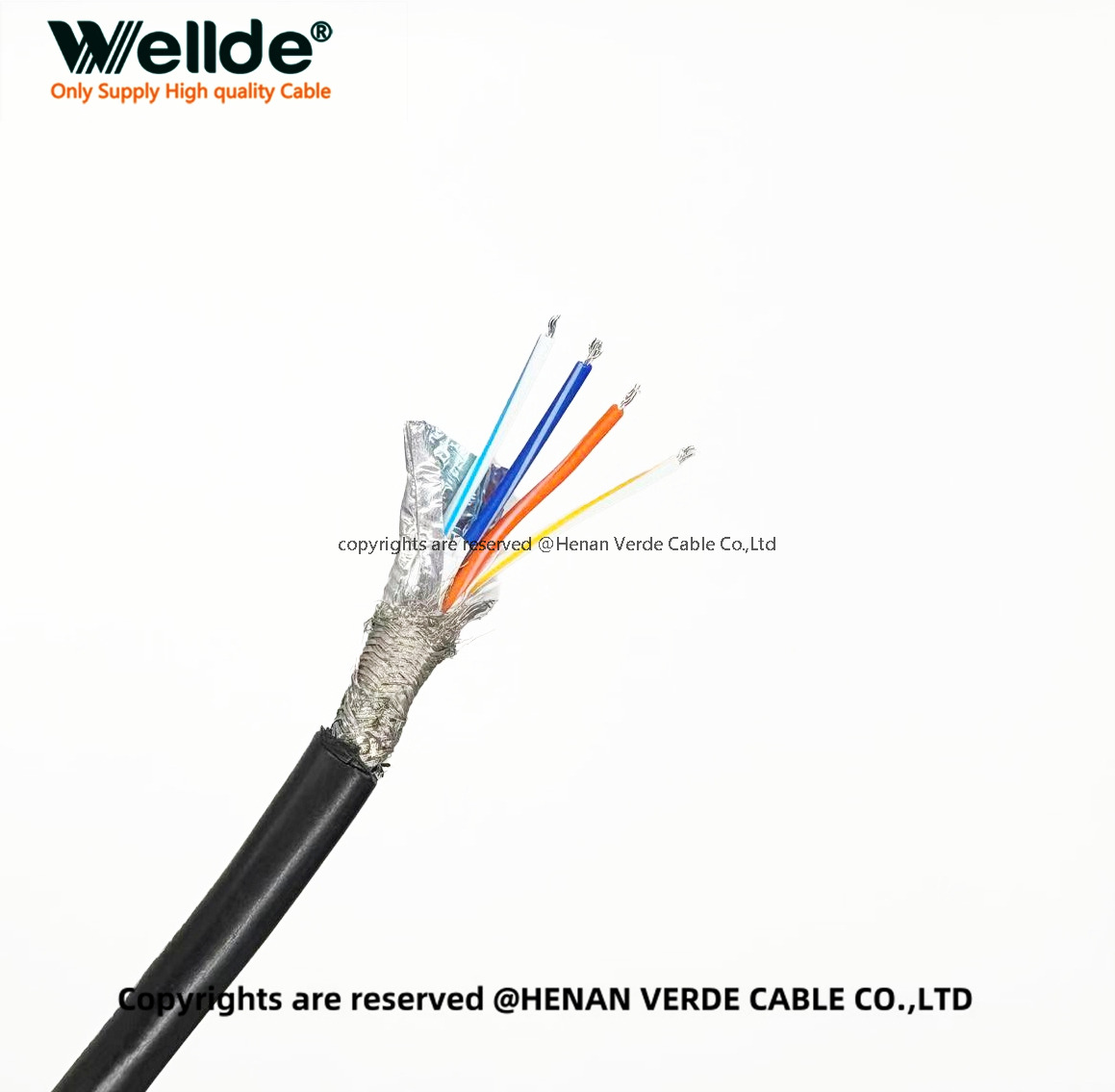

The 2 Pair 0.2mm RVSP 485 Shielded Cable is designed to deliver stable signal transmission with lower installation and maintenance costs.
Made with tinned copper conductors and PVC insulation, it ensures durability and flexibility for a wide range of RS485 and control wiring applications.
This twisted pair shielded cable offers excellent EMI and RFI protection, providing clean data communication in environments where reliability and performance matter most.
High-quality materials extend service life, reduce replacement frequency, and save maintenance and overall costs.
The flexible, easy-strip design saves installers time on complex cabling tasks, enabling fast and efficient installation.
The aluminum foil and tinned copper braid shield ensures accurate, interference-free signal transmission in industrial and transportation systems.
Ideal for heating systems, air conditioning control, access control, and industrial communication.
Also used in trains, subways, and aircraft wiring, where stable RS485 data signals and vibration resistance are essential.
Complies with RoHS, CE, and UL1685 standards, ensuring safety, environmental compliance, and flame resistance for global use.
We also support a wide range of customized specifications to meet different installation and system requirements.
Available options include:
2×0.2mm² (24AWG) – ideal for short-distance RS485 signal transmission
2×0.5mm² (20AWG) – suitable for control and communication wiring
2×0.75mm (18AWG) – designed for higher current or long-distance use
4×0.2mm / 2 Pair 0.2mm² – for multi-channel RS485 and sensor connections
4×0.5mm / 2 Pair 0.5mm² – for industrial automation and data control systems
Custom shielding types, jacket materials (PVC, PE, LSZH, PUR), and printing options are also available.
Contact us for your custom RS485 shielded cable or twisted pair control wire requirements - we can produce cables tailored to your specific project and performance needs.
| Item | Specification |
|---|---|
| Product Type | 2 Pair 0.2mm RVSP 485 Shielded Cable |
| Conductor Material | Tinned Copper |
| Number of Cores | 4 (2 Pairs) |
| Insulation Material | PVC |
| Insulation Colors | Yellow/White, Orange, Blue, Blue/White |
| Shielding Structure | Aluminum Foil + Tinned Copper Braid |
| Sheath Material | PVC (Black) |
| Insulation Outer Diameter | 1.69 mm |
| Sheath Outer Diameter | 8.05 mm |
| Sheath Thickness | 1.3 / 1.42 / 1.17 mm |
| Certifications | RoHS, CE, UL1685 |
| Typical Applications | Heating, Air Conditioning, Access Control, Train, Subway, Aircraft |
