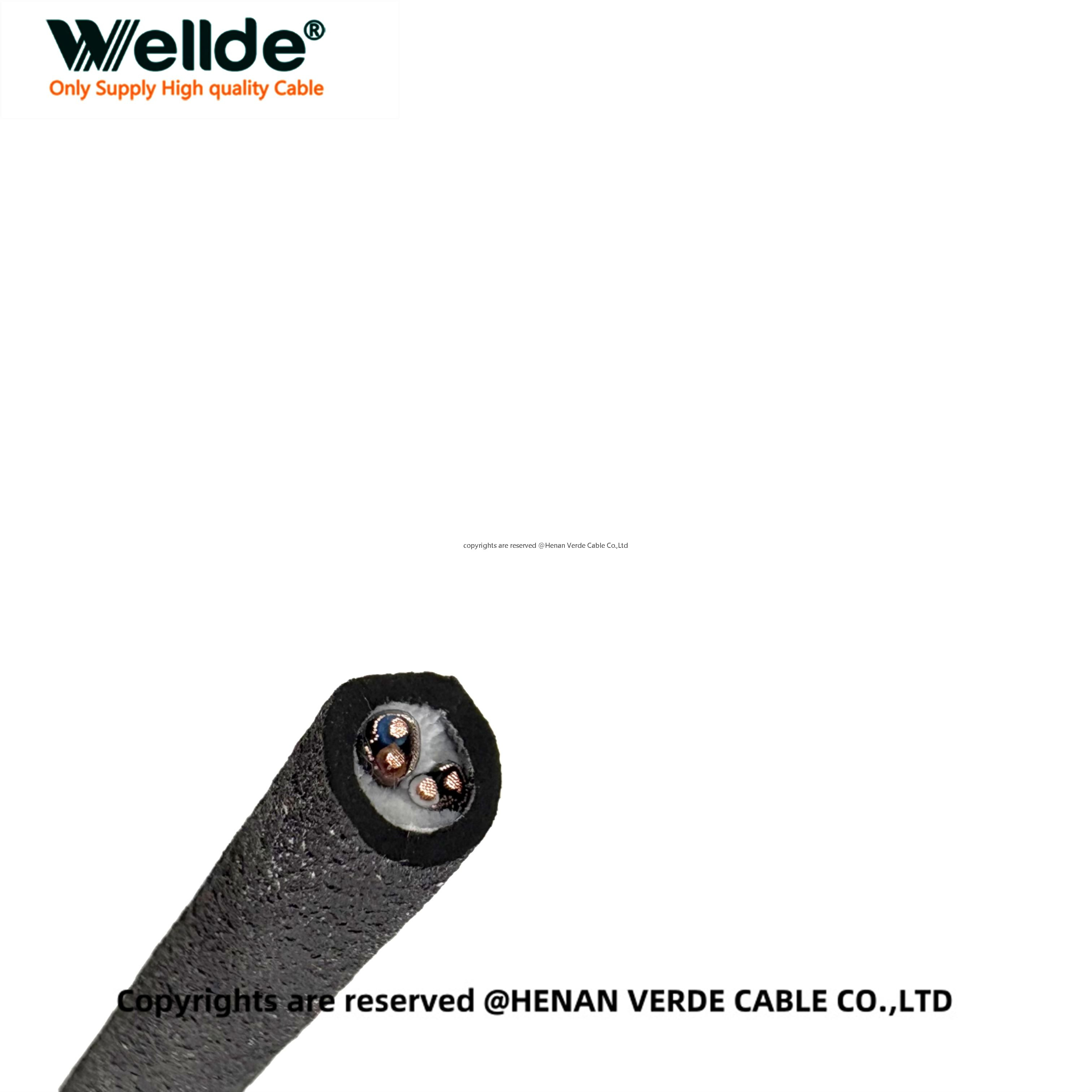

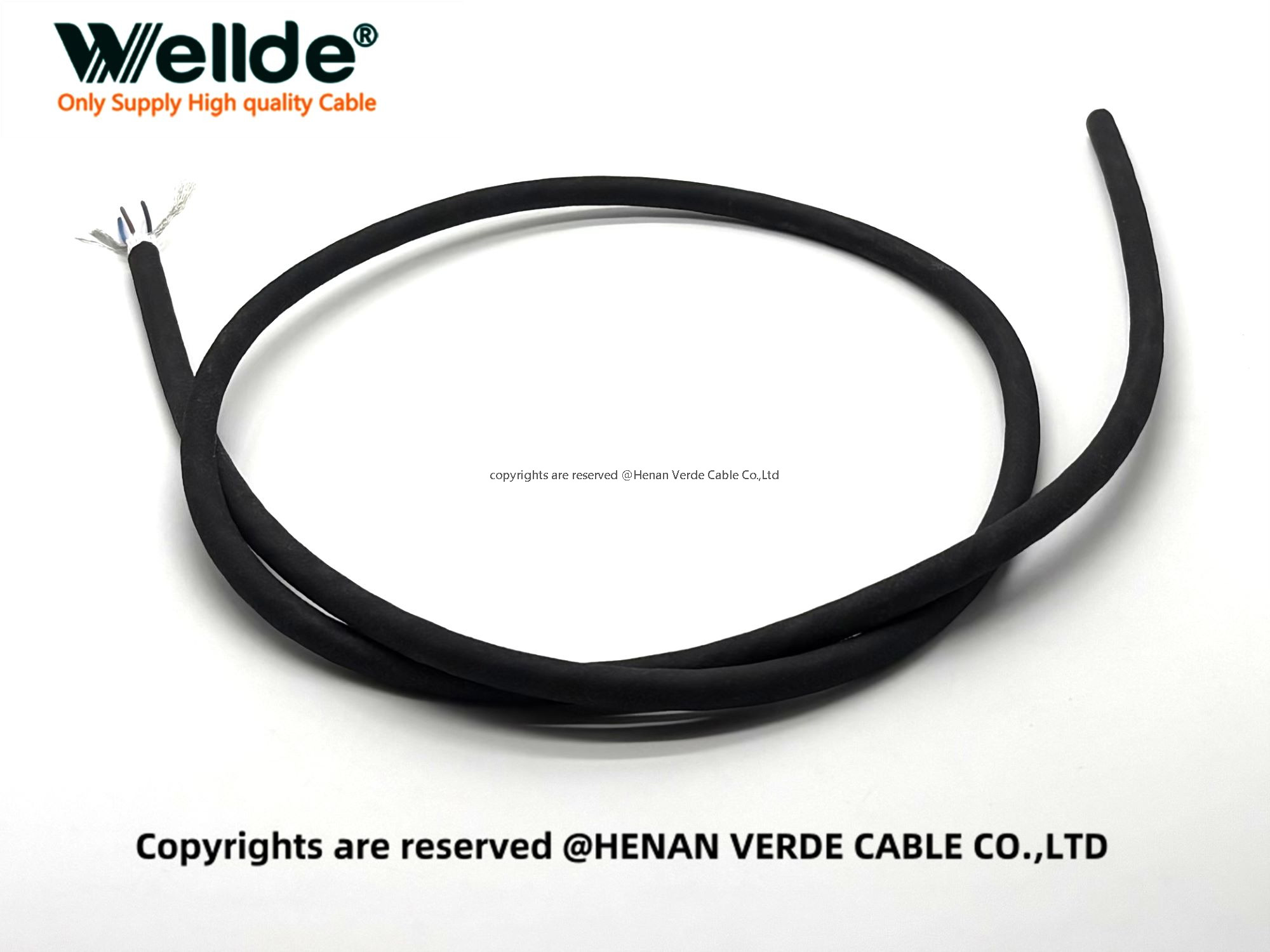

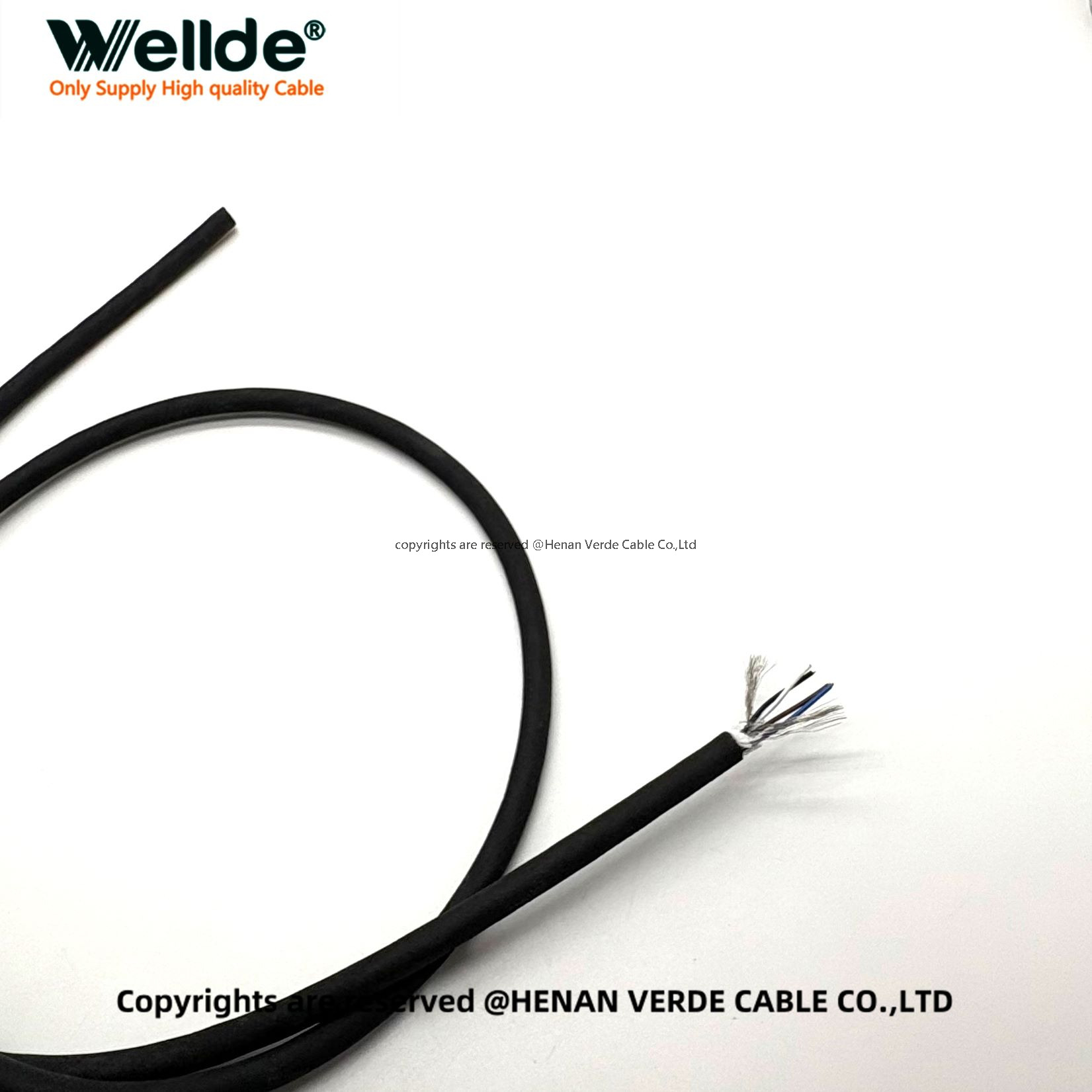

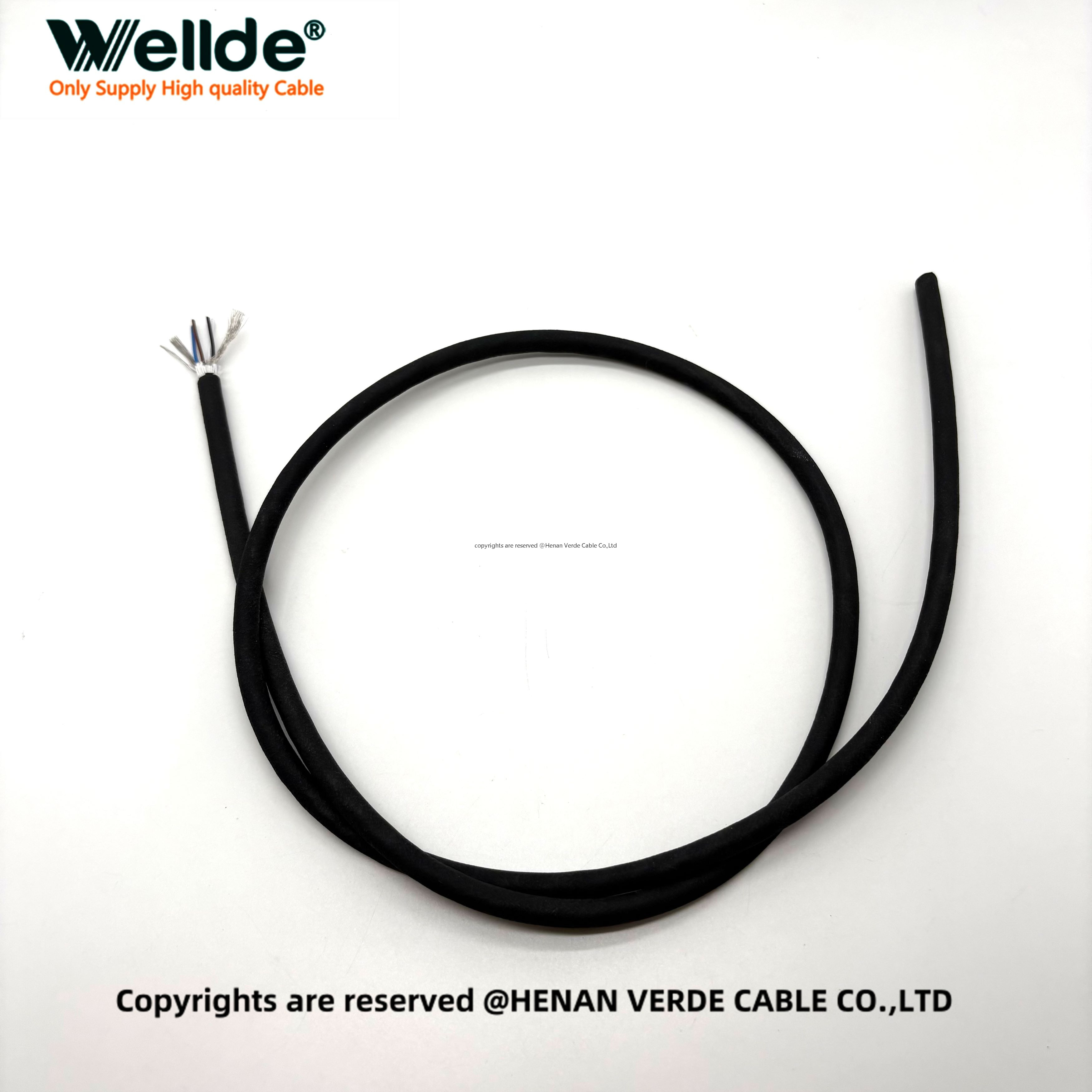

This 2 Pair 2 Core 0.2mm² Matte PUR Straight Cable is designed for dynamic environments where flexibility, durability, and electrical performance are essential.
It features bare copper conductors (4 cores, each with 26 strands), offering low resistance and stable signal transmission.

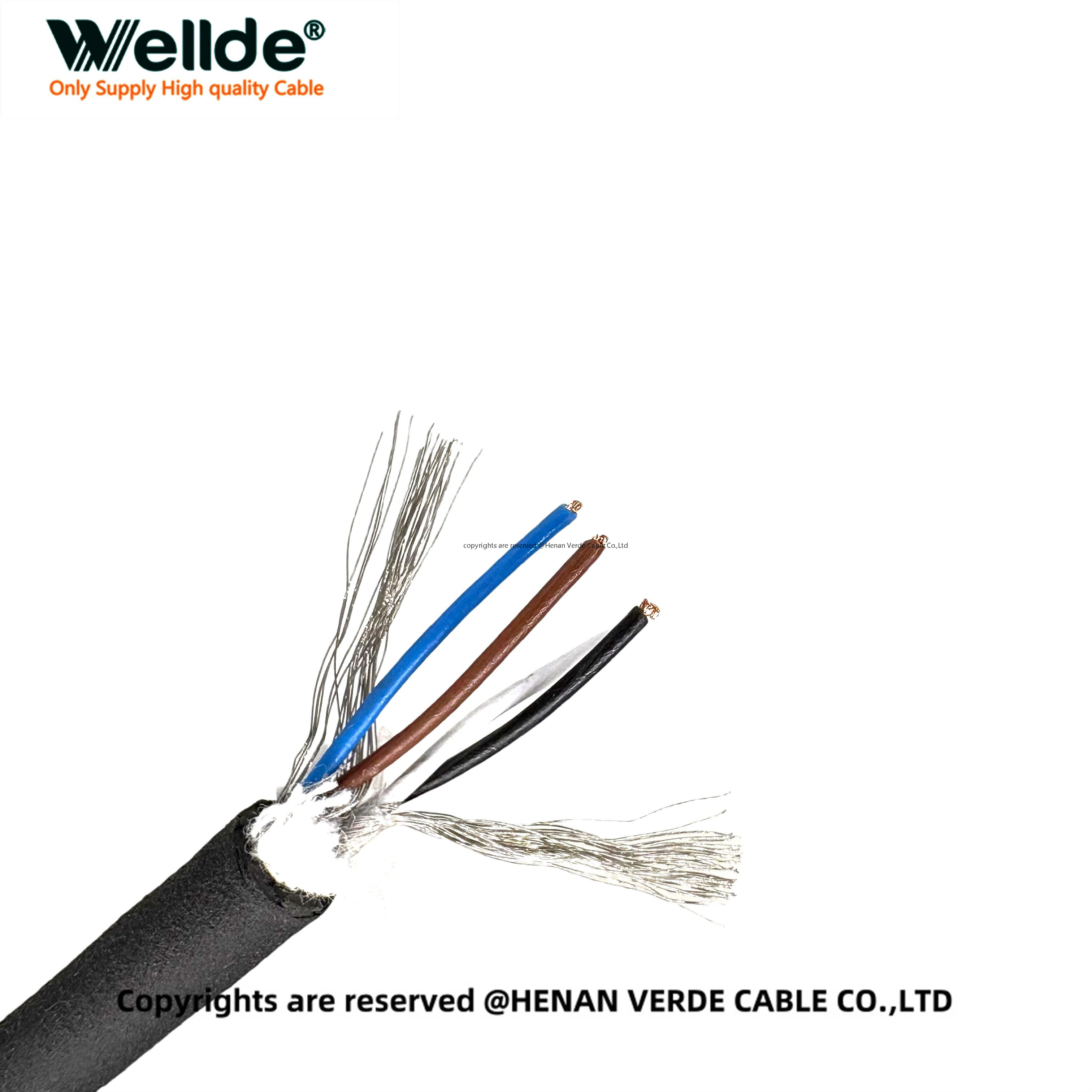

The cores are insulated with PP (polypropylene) in four distinct colors (black, white, brown, blue) for easy wiring.
With a core wire diameter of 1mm and overall cable diameter of 6.35mm, this cable remains compact yet strong.
Its matte PUR (polyurethane) outer sheath is highly resistant to abrasion, oil, UV, and chemicals, making it ideal for indoor and outdoor use.
The cable is rated for 300V, with conductor resistance of 93.5 Ω/km at 20°C, ensuring reliable performance in demanding conditions.
Structure: 2 Pair 2 Core (4 wires), each 0.2mm², bare copper (26 strands/core)
Insulation: PP (polypropylene), color-coded: black, white, brown, blue
Core Wire Diameter: 1mm | Overall Diameter: 6.35mm
Sheath: Matte PUR – resistant to wear, chemicals, oil, and UV
Voltage Rating: 300V | Conductor Resistance (20°C): 93.5 Ω/km
RoHS compliant, halogen-free, environmentally friendly
This cable is widely used in:
Industrial automation systems
Robotic arms and drag chain systems
Sensor and encoder connections
Flexible signal and control wiring
Machine tools, conveyors, and motion control
Factory automation and electronic assembly lines
Mobile equipment and tight-space installations
Medical devices and laboratory instruments
