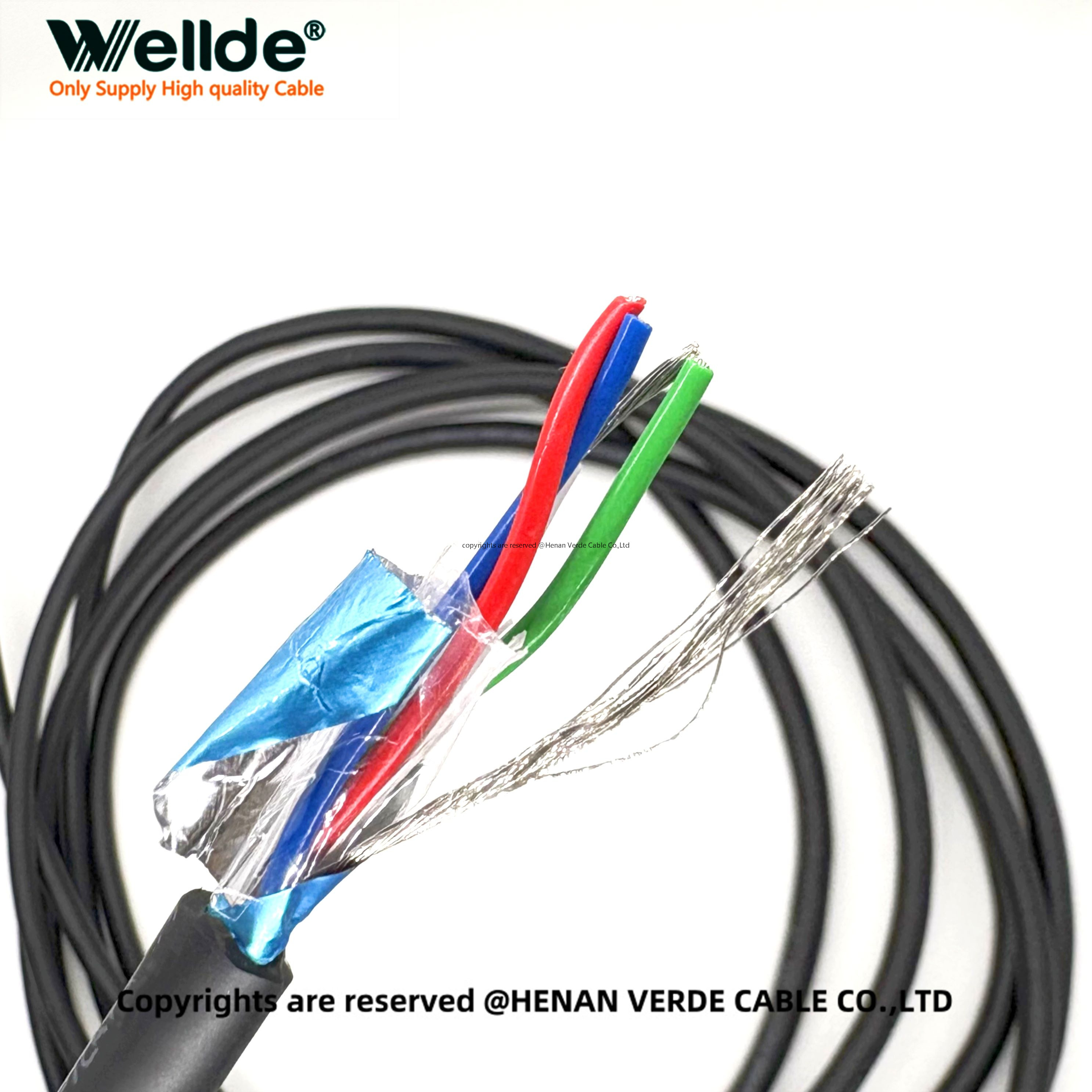

1: Twisted pair structure, effectively reducing crosstalk, stable during long-distance transmission, and strong anti-interference ability.
2: Aluminum foil shielding to prevent external electromagnetic waves from interfering with control signals
3: Tinned copper conductor, strong oxidation resistance, no need to worry about moisture and harsh environment
4: PVC sheath, anti-wear, anti-corrosion, anti-ultraviolet
5: Drainage line: can further improve the shielding effect
Stage Lighting Control
DMX512 Digital Lighting Control System
Building Automation Lighting
Film & TV Studio Lighting
Entertainment Venues Lighting Engineering
| Item | Specification |
|---|---|
| Conductor Material | Tinned Copper |

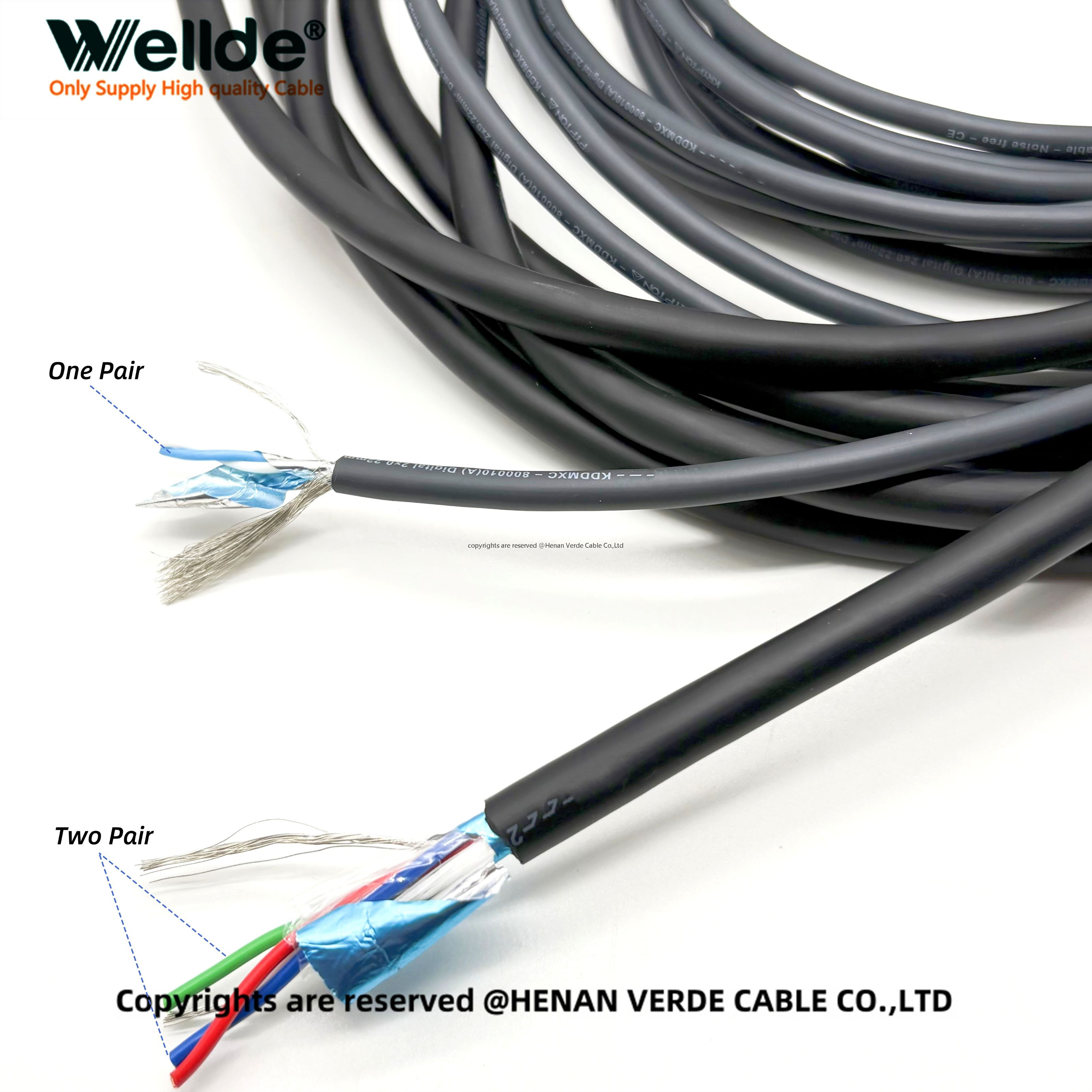

| Number of Cores | 2 Pairs (4 Cores) |
| Structure | Twisted Pair |
| Shielding | Aluminum Foil |
| Jacket Material | PVC |
| Insulation Diameter | Approx. 2.07 mm |
| Overall Cable Diameter | Approx. 8.27 mm |
| Drain Wire | 16 Strands |
| Rated Voltage | 300V ~ 500V |
| Characteristic Impedance | 110 Ohm (DMX512 Standard) |
| Operating Temperature | -30°C to +80°C |
| Bending Radius | ≥10× Cable Diameter |
| Color of Jacket | Black (Custom colors available) |
| Certification | CE, RoHS |
