22AWG 24AWG Spiral Cable

1:Wide Size Choices
2:Flexible Custom Orders
3:Fast Support Service
Availability:
Quantity:
  • Wellde

  • Support

  • Support

Flexible PUR Spiral Cable – Multi-Specification Coiled Wire For Industrial Use

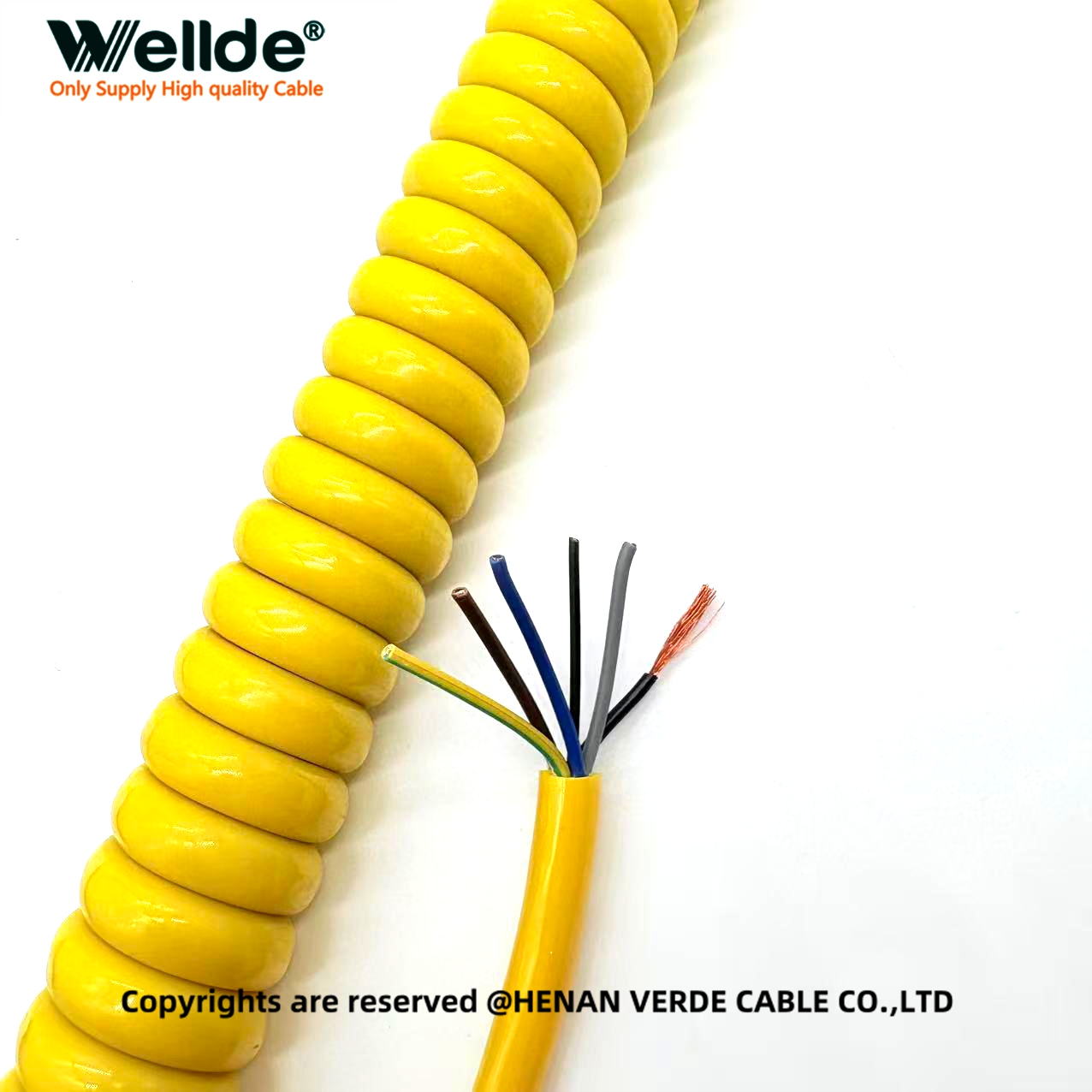

PUR sheathed 5 core coiled cable for industrial use

Spiral Cable Introduction:

Our PUR spiral cable offers flexible, strong and reliable performance for industrial and automation systems.

This spiral cable is made with high-quality copper conductors and protected by a durable PUR sheath.

Key Benefits Of PUR Spiral Cable:

1:Multiple sizes available – 0.25mm² / 0.5mm² / 0.75mm² / 1.0mm² / 1.5mm² / 2.5mm² and more.

2:Various cores supported – 3 core, 4 core, 5 core and custom options.

3:Flexible and durable – ideal for moving equipment, robotics, sliding doors and automation lines.

4:OEM & ODM service – custom length, packaging and labeling available.

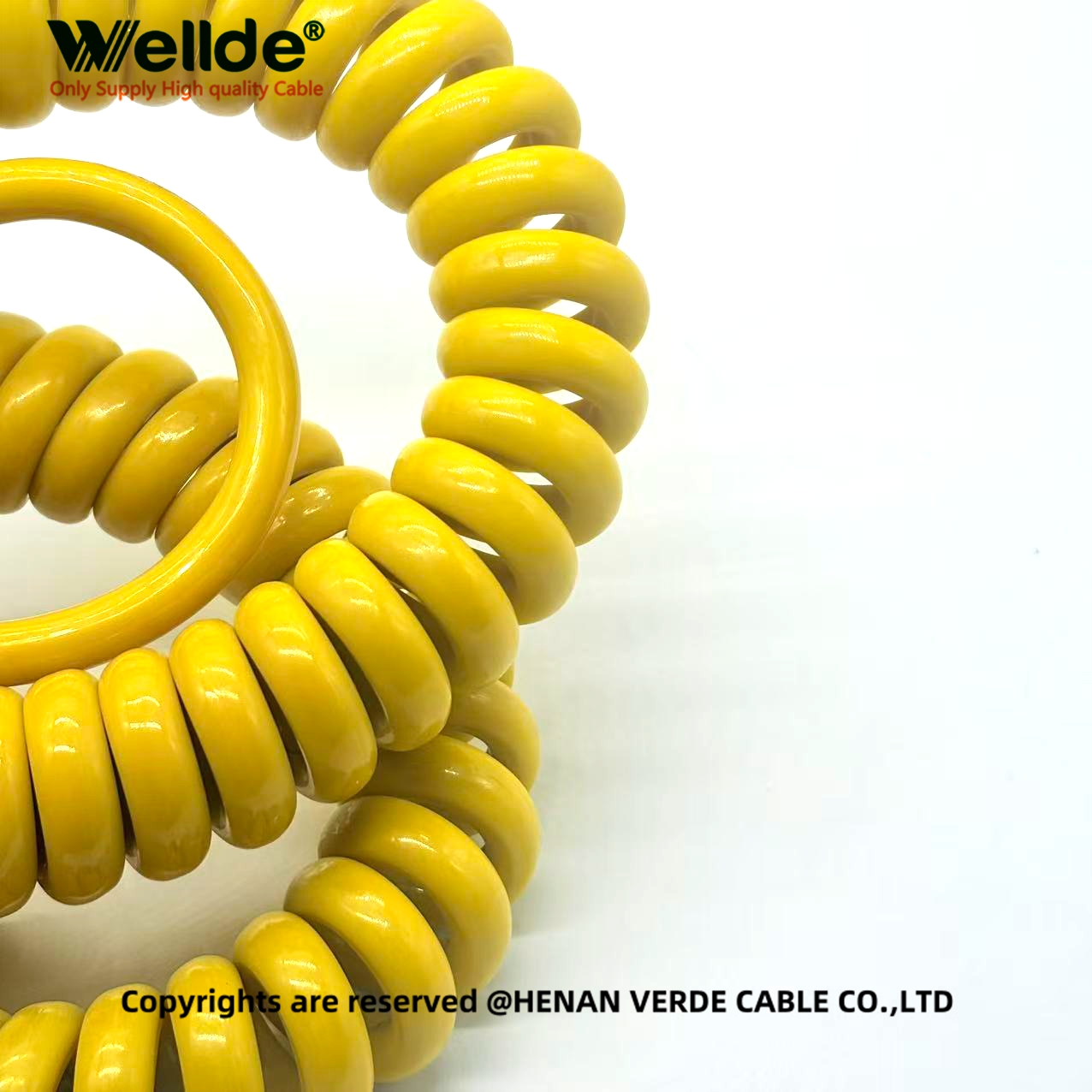

26 AWG 1.5mm coiled cable

Spiral Cable Applications:

This PUR spiral cable is designed for industrial machines, robotics, sensors and other systems that need reliable power or signal transmission.
Its spiral design saves space and allows smooth movement.

FAQ :

Q1: Can you supply custom sizes and cores?
A1: Yes, we support many sizes and cores, including 0.25mm² to 2.5mm² and 3 core to 5 core or more, as well as custom lengths.


Q2: Do you provide samples before bulk order?
A2: Yes, free samples are available for testing, and we also offer OEM & ODM services for your projects


product-769-554


product-959-613


Item Specification
Conductor Material Pure Copper
Sheath Material PUR
Insulation Material PVC
Available Cross Sections 0.25 mm² / 0.5 mm² / 0.75 mm² / 1.0 mm² / 1.5 mm² / 2.5 mm² (custom sizes available)
Available Core Numbers 3 Core / 4 Core / 5 Core / Custom options
Coil Outer Diameter 28.5 mm (customizable)
Cable Diameter 8.07 mm (typical)
Insulation Diameter 1.477 mm (typical)
Single Wire Diameter 0.146 mm (typical)
Length (Natural) 55 cm (custom lengths available)
Length (Extended) 2.2 m (custom lengths available)
Tail Length L1: 27 cm / L2: 22 cm (customizable)
Design Vertical tail, spiral structure, OEM & ODM supported
