This flat ribbon cable is ideal for routing internal signals.
It provides stable performance even in compact spaces.
The cable features a low-profile PVC jacket with uniform conductor spacing.
Both ends are equipped with IDC connectors for quick installation.
It is suitable for industrial systems and electronic equipment.

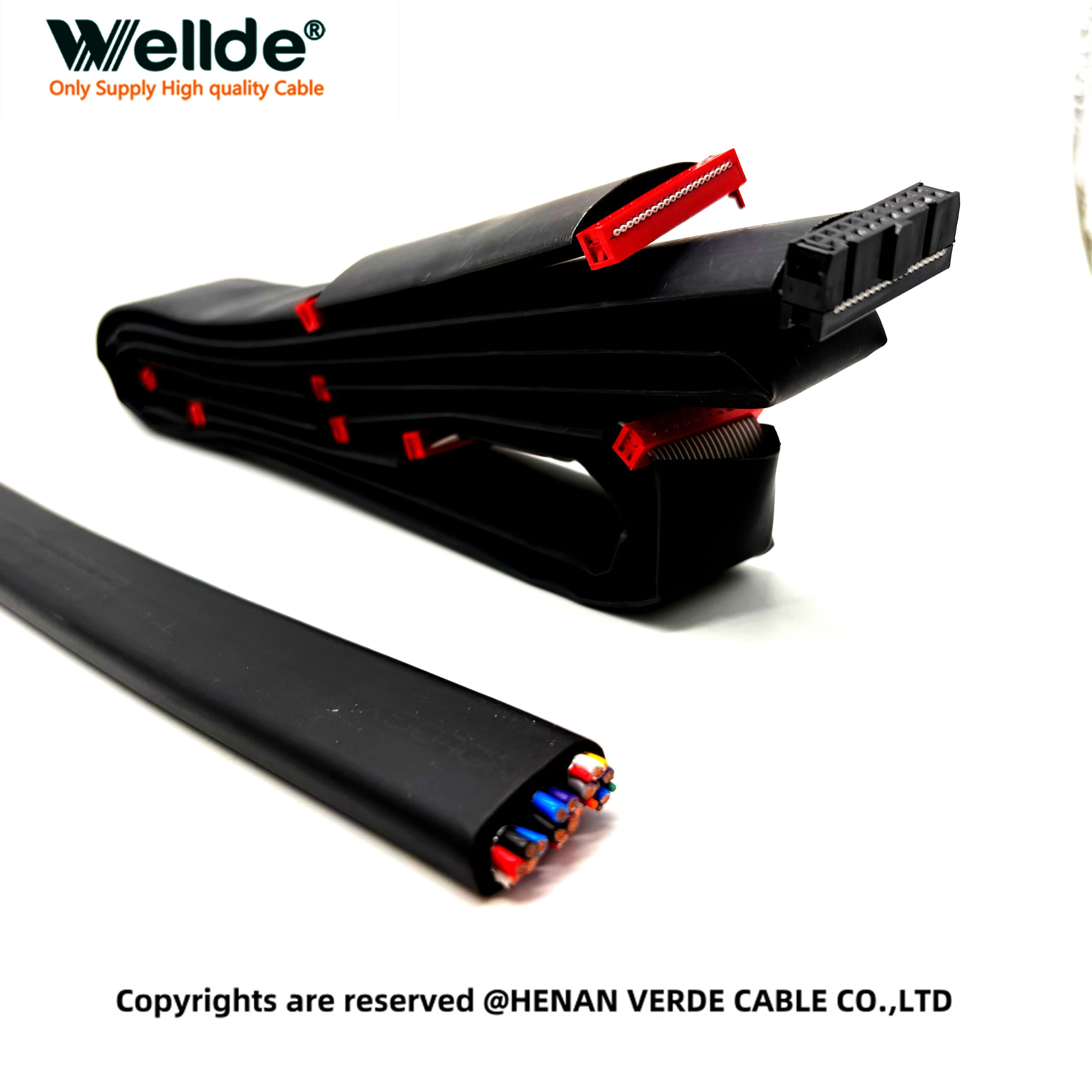

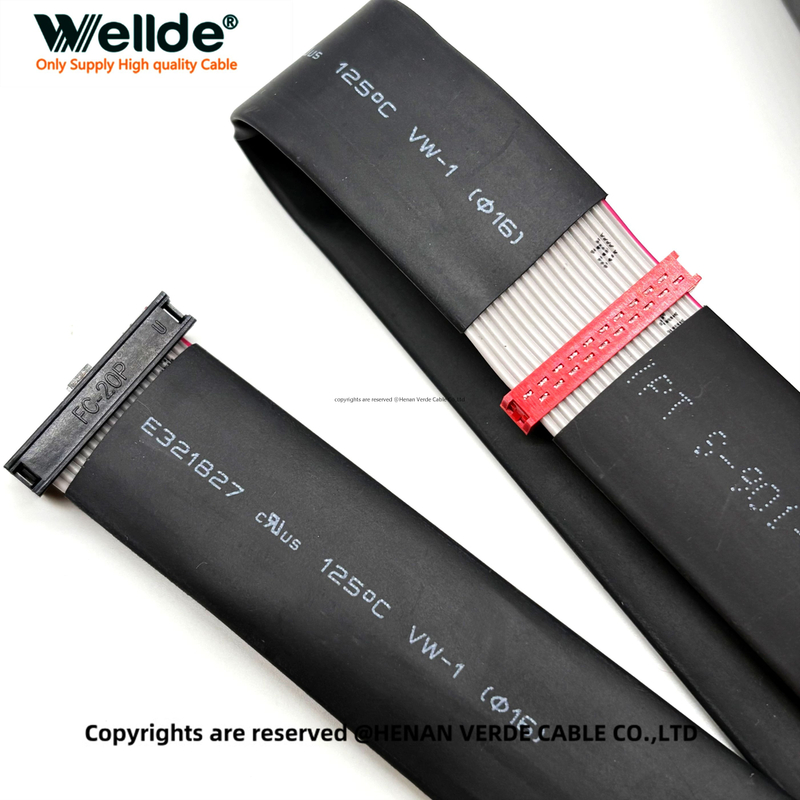

Flat cable with IDC connector
1.27 mm pitch for stable signals
Flexible PVC insulation
Stranded bare copper conductors
Operating temperature: -20°C to +105°C
RoHS and UL-certified
PCB to PCB flat cable connection
Flat ribbon cable for industrial electronic equipment
Data routing in printers, CNC machines, and instruments
Product Advantages:
Flat cables save more space than round cables
Easy to bend for compact internal layouts
Suitable for harsh environments
| UL Specification | Maximum use temperature | Maximum operating voltage | Number of conductors | Conductor | Finished outer diameter | ||
| Size | Wire number/wire diameter | Thickness mm±0.05 | Width Wmm±0.2 | ||||
| AWG | No./mm±0.05 | ||||||
| 2651 | 105ºC | 300V | 8 | 28 | 7/0.127 | 0.90 | 10.16 |
| 9 | 28 | 7/0.127 | 0.90 | 11.43 | |||
| 10 | 28 | 7/0.127 | 0.90 | 12.70 | |||
| 12 | 28 | 7/0.127 | 0.90 | 15.24 | |||
| 14 | 28 | 7/0.127 | 0.90 | 17.78 | |||
| 16 | 28 | 7/0.127 | 0.90 | 20.32 | |||
| 20 | 28 | 7/0.127 | 0.90 | 25.40 | |||
| 26 | 28 | 7/0.127 | 0.90 | 33.02 | |||
| 30 | 28 | 7/0.127 | 0.90 | 38.10 | |||
| 34 | 28 | 7/0.127 | 0.90 | 43.18 | |||
| 40 | 28 | 7/0.127 | 0.90 | 50.80 | |||
| 50 | 28 | 7/0.127 | 0.90 | 63.50 | |||
| 60 | 28 | 7/0.127 | 0.90 | 76.20 | |||
| 64 | 28 | 7/0.127 | 0.90 | 81.28 | |||
