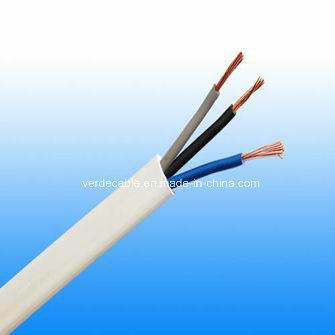

Copper Conductor PVC insualted Flat Cable
Application: Suitable for Electrical appliances, switch, lighting, distribute, surface wiring, indoor or outdoor
Rated voltage 300/500V PVC Insulated 3core Flat Cable
Standard:GB 5023.1, IEC 60227 ,BS6004,6193Y
Structure:
Conductor:Solid or Stranded Copper wire
Insulation:PVC
Sheathing:PVC
Specification:
1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2,6.0mm2, 10mm2,16mm2
Color:
Insulation:Red,Yellow, Blue or Black,Or customize as per the customer's request
Outer Sheathing: White or Grey
Packing:
100Meter per Roll, then put into PP Plastic bags or into Cartons.
Drum or According to the customer's request
Technical Data:
| Nominal cross-sectional area of conductor | Thickness of Insulation | Thickness of Sheath | Mean overall diameter | |
| Lower limit | Upper limit | |||
| mm 2 | mm | mm | mm | mm |
| 2X0.75 | 0.6 | 0.9 | 3.8X5.9 | 4.6X7.1 |
| 2X1.0 | 0.6 | 0.9 | 3.9X6.1 | 4.8X7.4 |
| 2X1.5 | 0.7 | 0.9 | 4.4X7.0 | 5.3X8.5 |
| 2X2.5 | 0.8 | 1.0 | 5.1X8.4 | 6.2X10.1 |
| 2X4.0 | 0.8 | 1.0 | 5.6X9.2 | 6.7X11.1 |
| 2X4.0 | 0.8 | 1.0 | 5.7X9.5 | 6.9X11.5 |
| 2X6.0 | 0.8 | 1.1 | 6.2X10.4 | 7.5X12.5 |
| 2X6.0 | 0.8 | 1.1 | 6.4X10.8 | 7.8X13.0 |
| 2X10 | 1.0 | 1.2 | 7.9X13.4 | 9.5X16.2 |
| 3X0.75 | 0.6 | 0.9 | 3.8X7.9 | 4.6X9.6 |
| 3X1.0 | 0.6 | 0.9 | 3.9X8.4 | 4.8X10.1 |
| 3X1.5 | 0.7 | 0.9 | 4.4X9.6 | 5.3X11.7 |
| 3X2.5 | 0.8 | 1.0 | 5.1X11.6 | 6.2X14.0 |
| 3X4.0 | 0.8 | 1.1 | 5.8X13.1 | 7.0X15.8 |
| 3X4.0 | 0.8 | 1.1 | 5.9X13.5 | 7.1X16.3 |
| 3X6.0 | 0.8 | 1.1 | 6.2X14.5 | 7.5X17.5 |
| 3X6.0 | 0.8 | 1.1 | 6.4X15.1 | 7.8X18.2 |
| 3X10 | 1.0 | 1.2 | 7.9X19.0 | 9.5X23.0 |
If you want to know more about us and our products,pls contact us.
sending email or telephon us:
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126(Skype.)
Focus on Wires and Cables
Be Your Most Reliable Supplier
