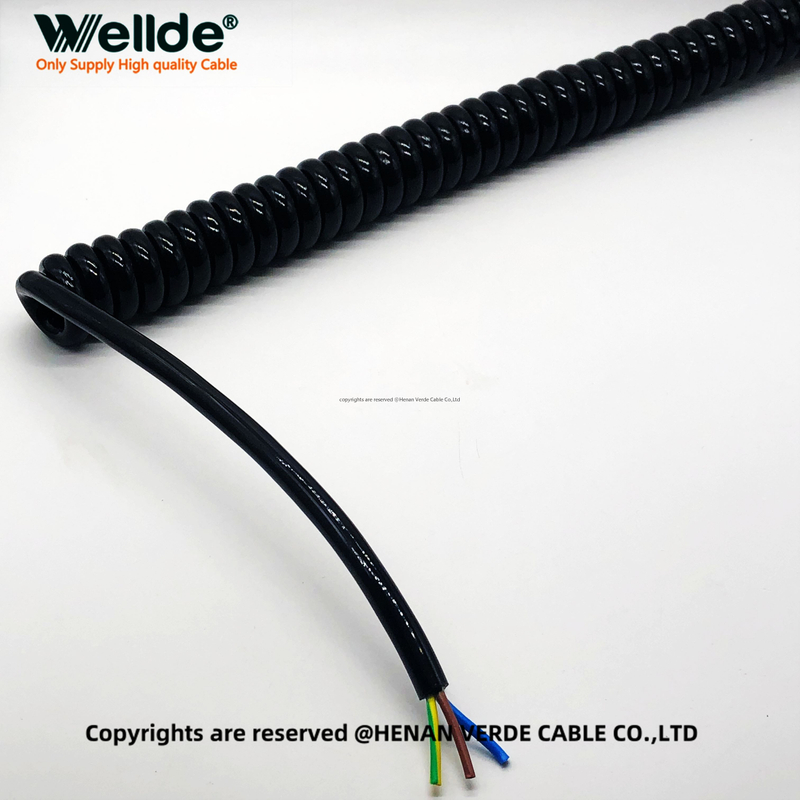

Coiled Cable Product Overview:
This 3*0.25mm² spiral cable is designed for flexible and reliable electrical connections.
It features high-quality tinned copper conductors for stable signal transmission and excellent corrosion resistance.
The spiral cable's flexible construction allows for easy retraction, saves space, and prevents tangling.
The outer PU sheath offers excellent abrasion, oil, and weather resistance, making it ideal for control systems, electronic devices, robotics, and automotive applications.
The cable's flexibility ensures a long service life, even in environments subject to continuous motion.
Applications For Spiral Cable ：
Home appliances
Stairlifts
Railway car connections
Retail displays
Lighting
Automation equipment
Generators
Portable appliances
Advantages Of Retractable Cable:
Flexibility
Extensibility
Good resilience
| Parameter | Details |
| Conductor Material | Tinned Copper |
| Conductor Size | 3*0.25mm² |
| Conductor Stranding | 14/0.15mm |
| Insulation Material | PP |
| Core Colors | Red / Yellow / Blue |
| Sheath Material | PUR |
| Outer Diameter | 5.5mm |
| Spiral Outer Diameter | 20mm |
| Natural Length | 0.5m |
| Working Length | 2.5m |
| Tail Length (Both Ends) | 150mm |
| Operating Temperature | -20°C ~ +80°C |
| Voltage Rating | 300V |
| Application | Control Systems, Electronics, Robotics, Automotive, Signal Transmission |
