Excellent silver-plated copper conductor, PTFE sheath

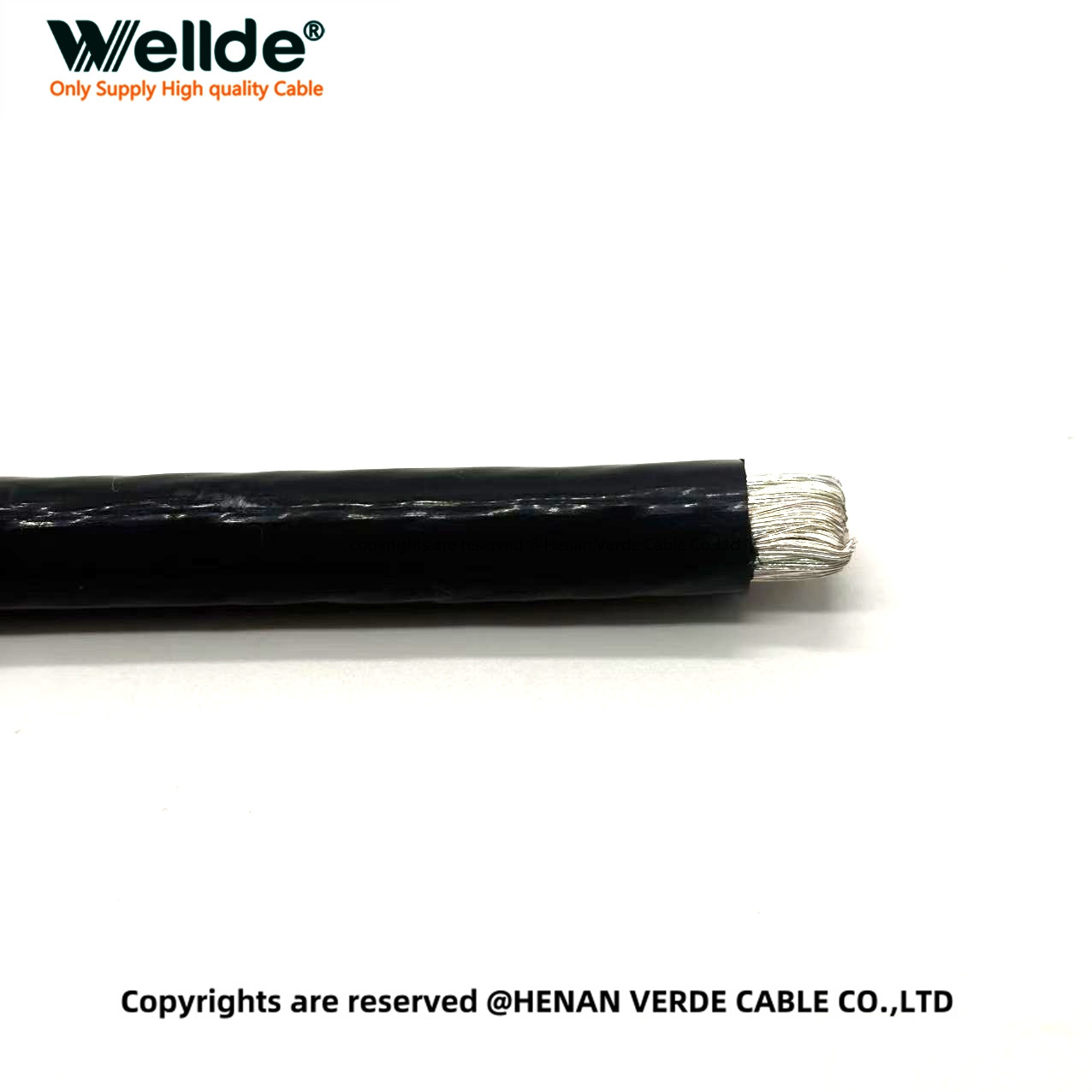

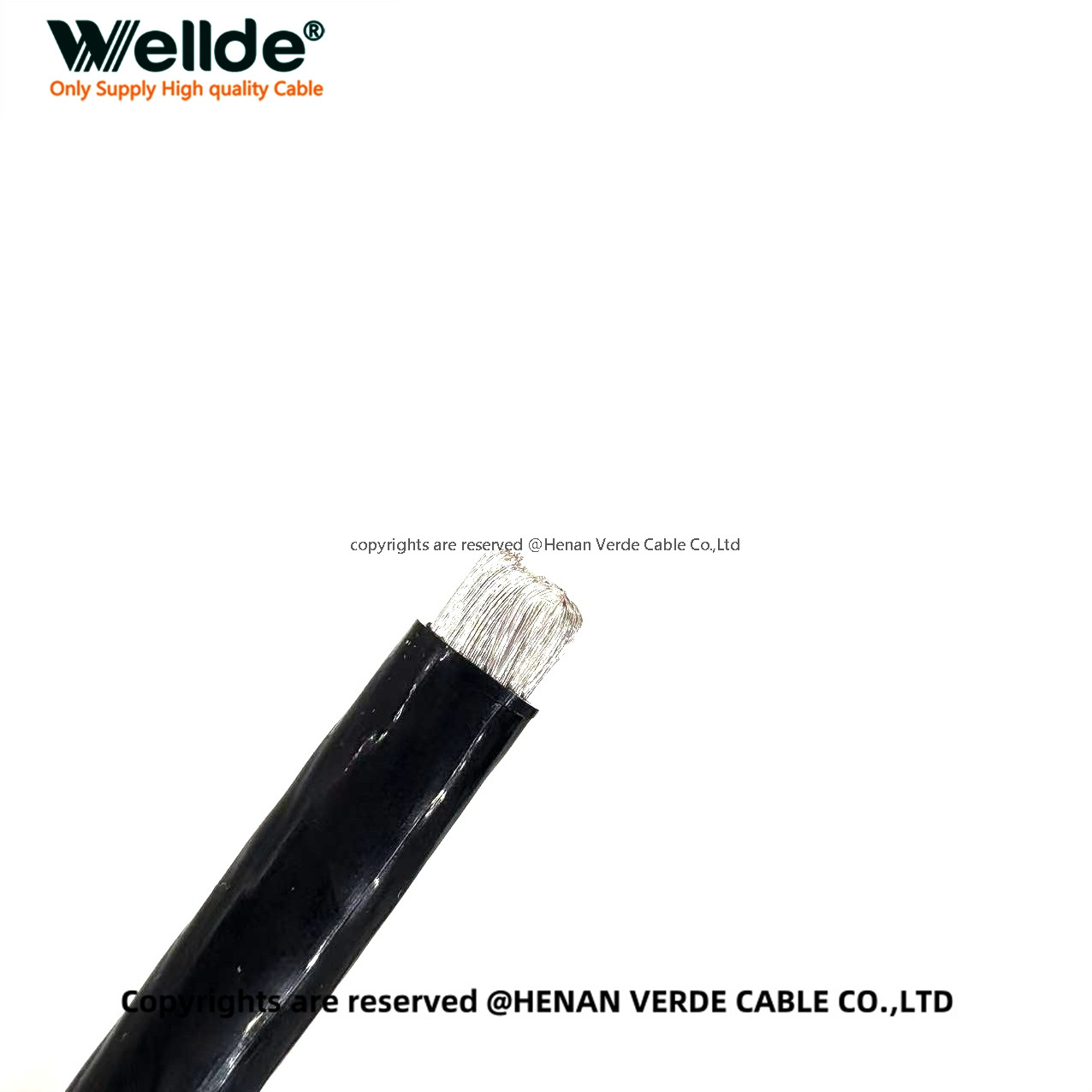

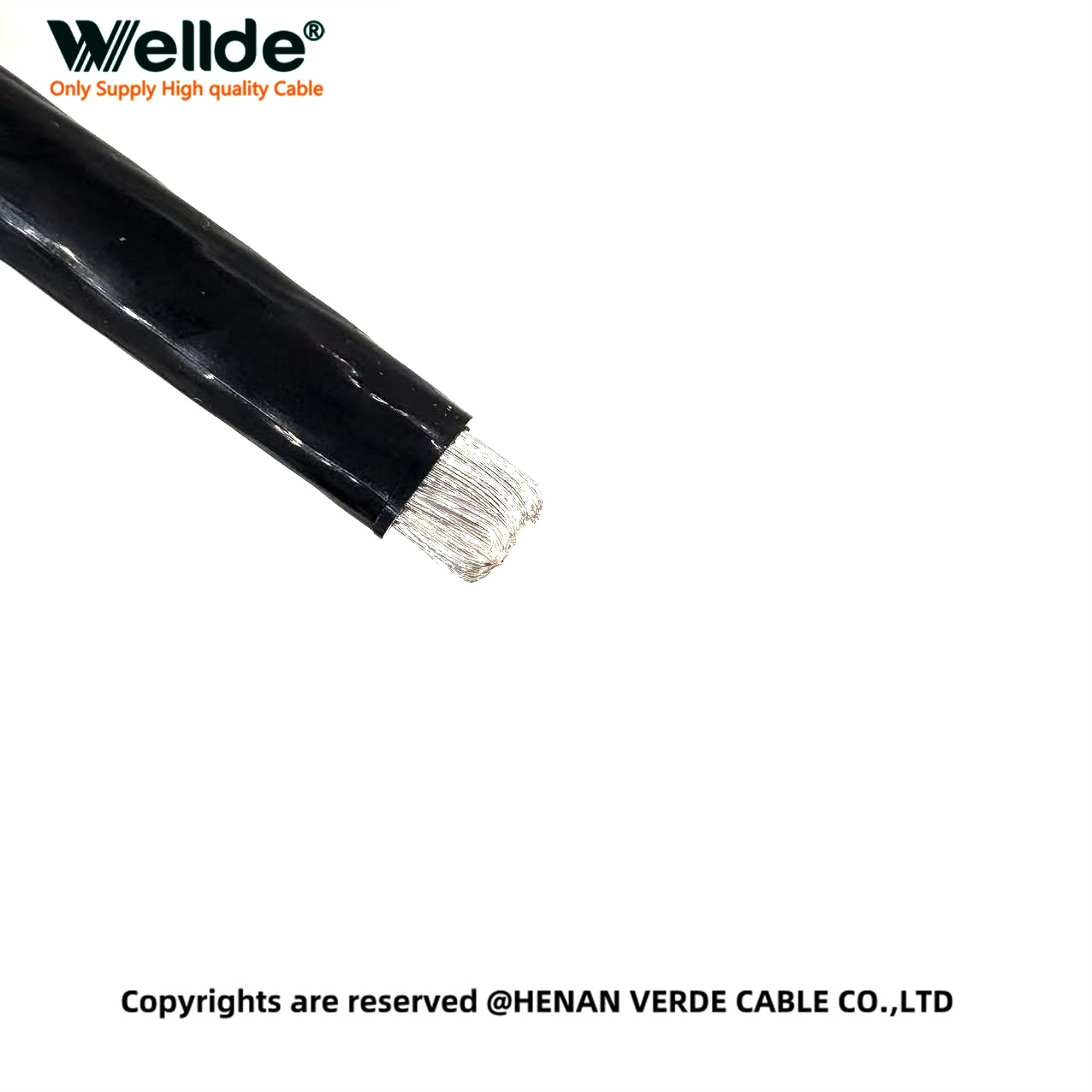

The 35mm High-Temperature PTFE Cable is engineered to perform in the most demanding environments.
Whether you need a single-core or multi-core design, this cable offers exceptional durability and flexibility.
It is designed to withstand extreme temperatures, chemicals, oils, and lubricants while providing excellent dielectric strength, making it ideal for applications where high performance is critical.
Durable Conductors: Choose from alloy, silver-plated, or nickel-plated conductors for optimal conductivity and corrosion resistance.
Superior Dielectric Strength: The PTFE insulation provides outstanding electrical insulation, ensuring reliable signal transmission in harsh conditions.
Military Communication Systems: Essential for secure and high-reliability communications in defense applications.
Aerospace Equipment: Designed to perform under the extreme conditions of the aerospace industry.
High-Temperature Sensors: Ideal for sensors that operate in high-heat environments.
Medical & Scientific Instruments: Trusted for use in precision medical devices and scientific research equipment.
Motors and Transformers: Reliable for power transmission in electric motors and transformers.
| Conductor | Insulation | Electrical Properties | Packing | |||
| Sectional Area (mm²) | Conductor Construction | Diameter (mm) | Insulation Thickness (mm) | Outer Diameter (mm) | Max. Conductor Resistance DC 20°C Ω/km | M/coil |
| 0.05 | 1X0.25 | 0.25 | 0.20 | 0.65 | 376.20 | 500 |
| 0.07 | 1X0.3 | 0.30 | 0.20 | 0.70 | 245.00 | 500 |
| 0.12 | 1X0.4 | 0.40 | 0.23 | 0.85 | 144.10 | 500 |
| 0.16 | 1X0.45 | 0.45 | 0.25 | 0.95 | 126.00 | 500 |
| 0.2 | 1X0.5 | 0.50 | 0.30 | 1.10 | 83.50 | 500 |
| 0.08 | 7X0.12 | 0.36 | 0.25 | 0.86 | 227.00 | 500 |
| 0.15 | 7X0.16 | 0.48 | 0.25 | 0.98 | 126.00 | 500 |
| 0.2 | 7X0.20 | 0.60 | 0.25 | 1.10 | 83.50 | 500 |
| 0.35 | 19X0.16 | 0.80 | 0.30 | 1.40 | 49.50 | 200 |
| 0.5 | 19X0.18 | 0.90 | 0.35 | 1.60 | 36.70 | 200 |
| 0.75 | 19X0.23 | 1.15 | 0.35 | 1.85 | 22.70 | 200 |
| 1.0 | 19X0.26 | 1.30 | 0.35 | 2.00 | 19.00 | 200 |
| 1.2 | 19X0.28 | 1.40 | 0.40 | 2.20 | 15.30 | 200 |
| 1.5 | 19X0.32 | 1.60 | 0.40 | 2.40 | 11.70 | 200 |
| 2.0 | 19X0.37 | 1.85 | 0.45 | 2.75 | 9.45 | 100 |
| 2.5 | 19X0.41 | 2.05 | 0.55 | 3.15 | 6.86 | 100 |
| 4.0 | 37X0.37 | 2.58 | 0.50 | 3.58 | 4.51 | 100 |
