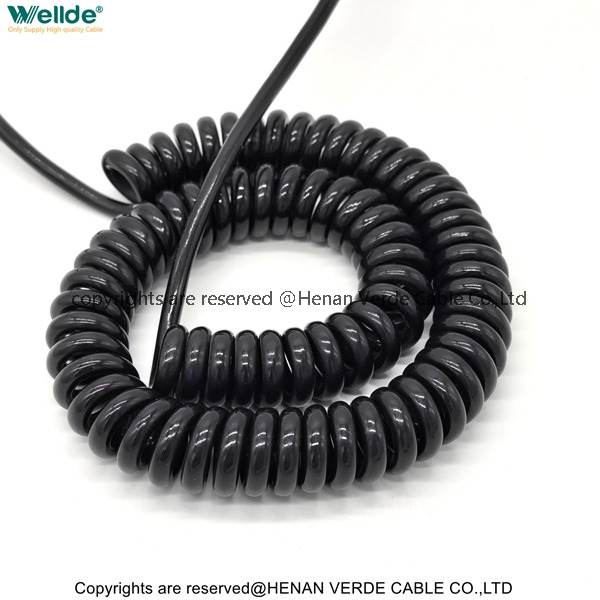

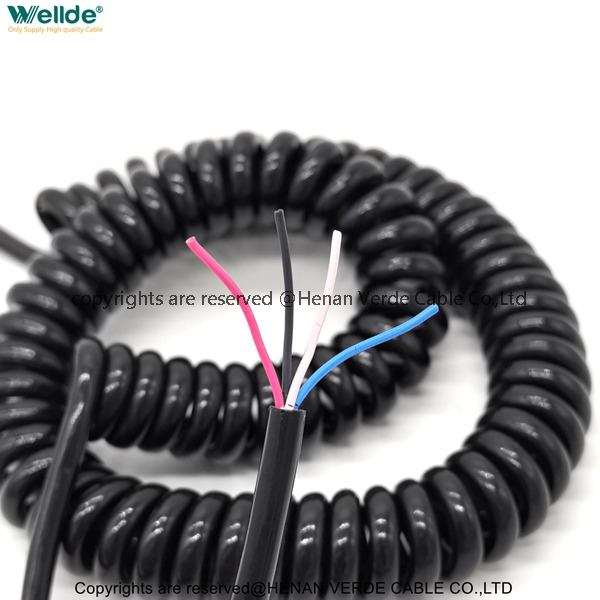

4 Core 0.5mm² Spiral Cable EV Coiled Charging Spiral Cable

Color: Black (customizable)
Model: 4 × 0.5mm
Length: customizable
Sheath: PUR (oil resistant and wear resistant)

Color:	Red/black/white/yellow/grey
Availability:

Quantity:



Inquire Add to Basket

Model:
Spiral Cable 4×0.5mm
Brand:
Wellde
Customized :
Model, color, size, length

Product Description

Product Introduction

The cable adopts high-strength spiral structure and high-quality tpu/pur sheath, which can provide stable power supply and signal transmission, and can withstand harsh industrial conditions. It is an ideal choice for automation, medical and automotive applications.

Core Advantages

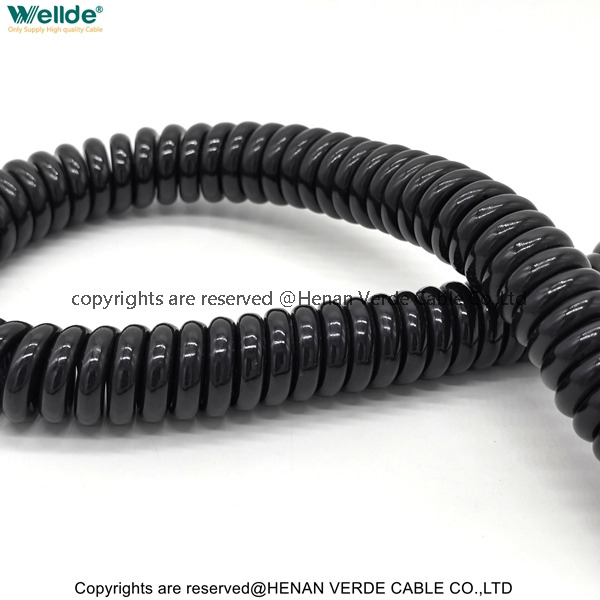

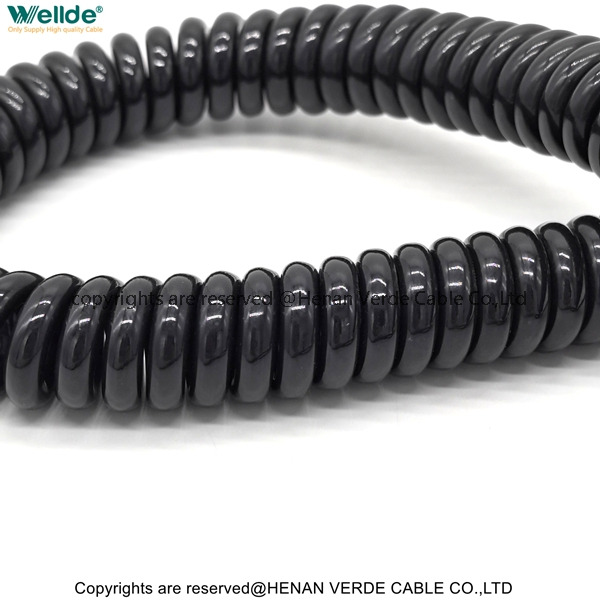

High elasticity spiral design: stretch ratio up to 1:5 (customizable), no fatigue after 10,000+ extension cycles
Premium TPU/PUR jacket: oil-resistant, wear-resistant, waterproof, and anti-aging, suitable for -40°C to +80°C environments

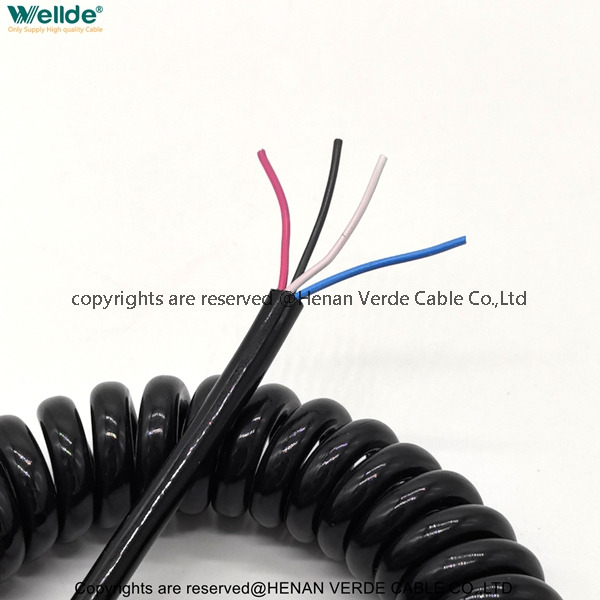

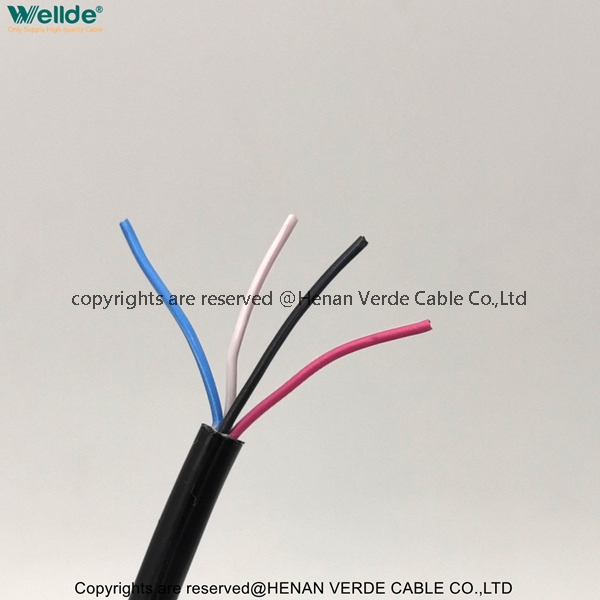

4-core tinned copper conductor: excellent conductivity, corrosion resistance, and simultaneous power/signal transmission
Full customization: length, coil diameter, conductor gauge, core color, and terminal options available
Compliant with CE/ROHS standards, rigorously tested for durability and safety

Material & Construction

Component	Material	Benefit
Conductor	Tinned Copper	Superior conductivity, corrosion resistance, flexible bending
Insulation	PVC	High dielectric strength, stable electrical performance
Jacket	PUR	Oil esistance, anti-aging, wide temperature range
Spiral Structure	Precision Coiled	High elasticity, long service life, space-saving
