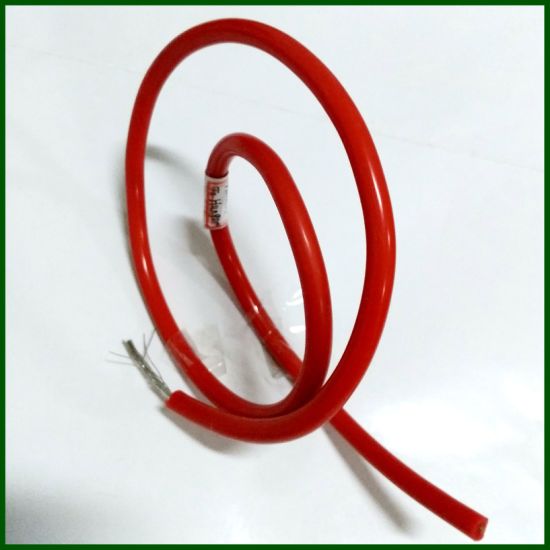

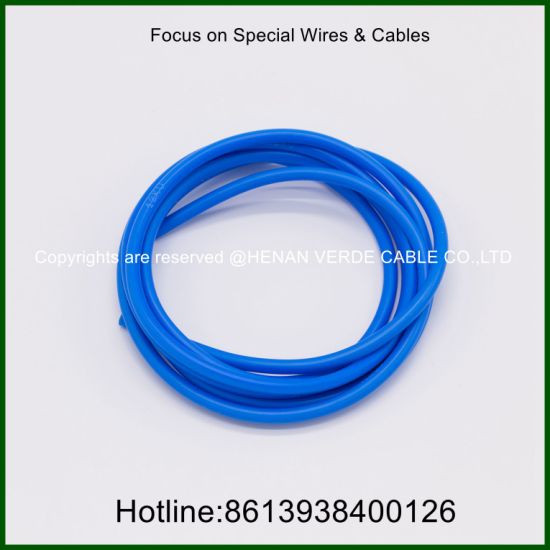

Hot sale to Southeast Asia Australia Flexible PVC Insulated wire
Rated voltage 300/500V,450/750V Flexible Wire cable
Conductor class: class5 class6 Stranded
Conductor material: Stranded Copper or Stranded Tinned Copper
Insulation:PVC, ROHS PVC
Specification:
Core Nos.: 1core 2core 3core 4core.......Customized

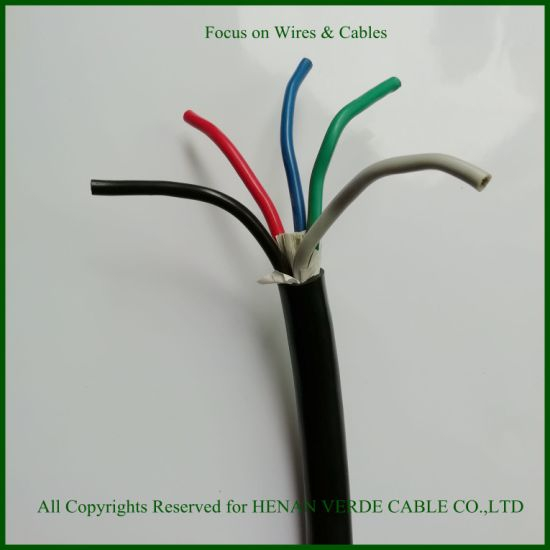

We can also produce multicore including 2core, 3core, 4core, 5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2
more size and specification as per your customized
Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request
Packing:

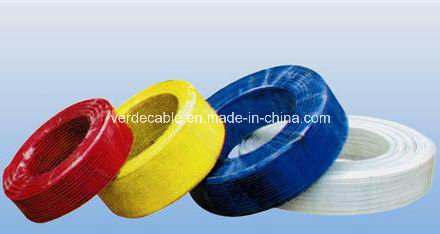

1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum
Technical data

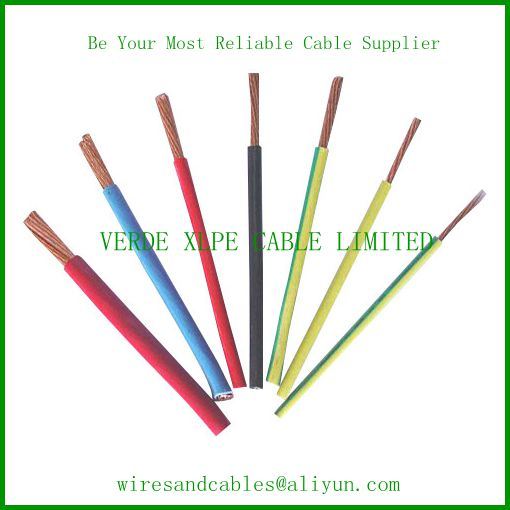

1).Single core Flexible cable (H07V-K Cable)
2) Technical data as follows
| Standard:GB/T 5023-2008,IEC60227,228 | |||||||||||
| Description:general single core Flexible wire | |||||||||||
| Type in National standard:60227 IEC 02(RV) 450/750V | |||||||||||
| Size (mm2) | Conductor class | Conductor Structure Nos /dia (mm) | Nominal Thickness of Insulation mm | Outer insulation diameter mm | D.C Resistance of conductor Ω/km | Calculated Weight kg/km | |||||
| 1.5 | 5 | 30/0.25 | 0.7 | 3.1 | 13.3 | 20.9 | |||||
| 2.5 | 5 | 49/0.25 | 0.8 | 3.7 | 7.98 | 32.5 | |||||
| 4 | 5 | 56/0.30 | 0.8 | 4.3 | 4.95 | 48.6 | |||||
| 6 | 5 | 84/0.30 | 0.8 | 5.2 | 3.30 | 70.6 | |||||
| 10 | 5 | 77/0.40 | 1.0 | 6.7 | 1.91 | 122.9 | |||||
| 16 | 5 | 119/0.40 | 1.0 | 7.8 | 1.21 | 176.3 | |||||
| 25 | 5 | 189/0.40 | 1.2 | 9.7 | 0.780 | 272.0 | |||||
| 35 | 5 | 264/0.40 | 1.2 | 11.3 | 0.554 | 374.5 | |||||
| 50 | 5 | 378/0.40 | 1.4 | 13.1 | 0.386 | 534.5 | |||||
| 70 | 5 | 336/0.50 | 1.4 | 15.6 | 0.272 | 739.2 | |||||
| 95 | 5 | 456/0.50 | 1.6 | 17.6 | 0.206 | 969.9 | |||||
| 120 | 5 | 576/0.50 | 1.6 | 19.3 | 0.161 | 1186.2 | |||||
| 150 | 5 | 720/0.50 | 1.8 | 22.8 | 0.129 | 1508.5 | |||||
| 185 | 5 | 888/0.50 | 2.0 | 24.3 | 0.106 | 1862.5 | |||||
| 240 | 5 | 1184/0.50 | 2.2 | 26.6 | 0.0801 | 2372.9 | |||||
| Standard:GB/T 5023-2008;GB/T 19666-2005,IEC60227,228 | |||||||||||
| Description:PVC insulated Fire Resistant Flexible Wire Cable | |||||||||||
| Type:NH-RV 450/750V | |||||||||||
| Size | Conductor class | Conductor Structure Nos /dia (mm) | Nominal Thickness of Insulation mm | Outer insulation diameter mm | D.C Resistance of conductor Ω/km | Calculated Weight kg/km | |||||
| 1.5 | 5 | 30/0.25 | 0.7 | 3.56 | 13.3 | 25.6 | |||||
| 2.5 | 5 | 49/0.25 | 0.8 | 4.2 | 7.98 | 38.2 | |||||
| 4 | 5 | 56/0.30 | 0.8 | 4.77 | 4.95 | 55.0 | |||||
| 6 | 5 | 84/0.30 | 0.8 | 5.66 | 3.30 | 77.8 | |||||
| 10 | 5 | 77/0.40 | 1.0 | 7.16 | 1.91 | 131.8 | |||||
| 16 | 5 | 119/0.40 | 1.0 | 8.26 | 1.21 | 186.5 | |||||
| 25 | 5 | 189/0.40 | 1.2 | 10.16 | 0.780 | 283.8 | |||||
| 35 | 5 | 264/0.40 | 1.2 | 11.76 | 0.554 | 388.3 | |||||
| 50 | 5 | 378/0.40 | 1.4 | 13.56 | 0.386 | 549.8 | |||||
| 70 | 5 | 336/0.50 | 1.4 | 16.1 | 0.272 | 756.5 | |||||
| 95 | 5 | 456/0.50 | 1.6 | 18.1 | 0.206 | 988.1 | |||||
| 120 | 5 | 576/0.50 | 1.6 | 19.8 | 0.161 | 1205.7 | |||||
| 150 | 5 | 720/0.50 | 1.8 | 23.3 | 0.129 | 1529.9 | |||||
| 185 | 5 | 888/0.50 | 2.0 | 24.8 | 0.106 | 1883.5 | |||||
| 240 | 5 | 1184/0.50 | 2.2 | 27.1 | 0.0801 | 2394.5 | |||||
Here only list one parts of our products,If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
HENAN VERDE CABLE CO.,LTD
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Wires and Cables
Be Your Most Reliable Supplier
