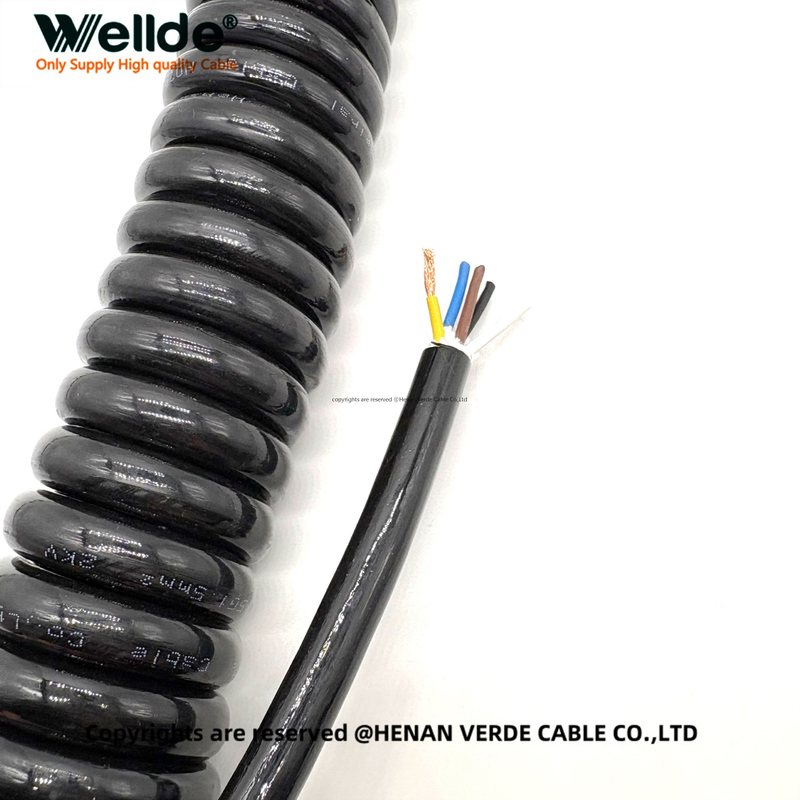

It features bare copper conductors with a single wire diameter of 0.149mm, ensuring excellent conductivity and stable electrical transmission.
Each core is color-coded (brown, white, black, blue, yellow-green) with PVC insulation for easy identification.
The outer PUR jacket offers outstanding resistance to wear, oils, UV rays, and moisture - making it ideal for both indoor and outdoor dynamic applications.
The cable is Low Smoke Zero Halogen (LSZH), making it a safe choice for enclosed or sensitive areas.
Conductor: Bare copper wires (Ø0.149mm single strand)
Core Colors: Brown / White / Black / Blue / Green-Yellow
Insulation: PVC
Sheath: Tough polyurethane (PUR)

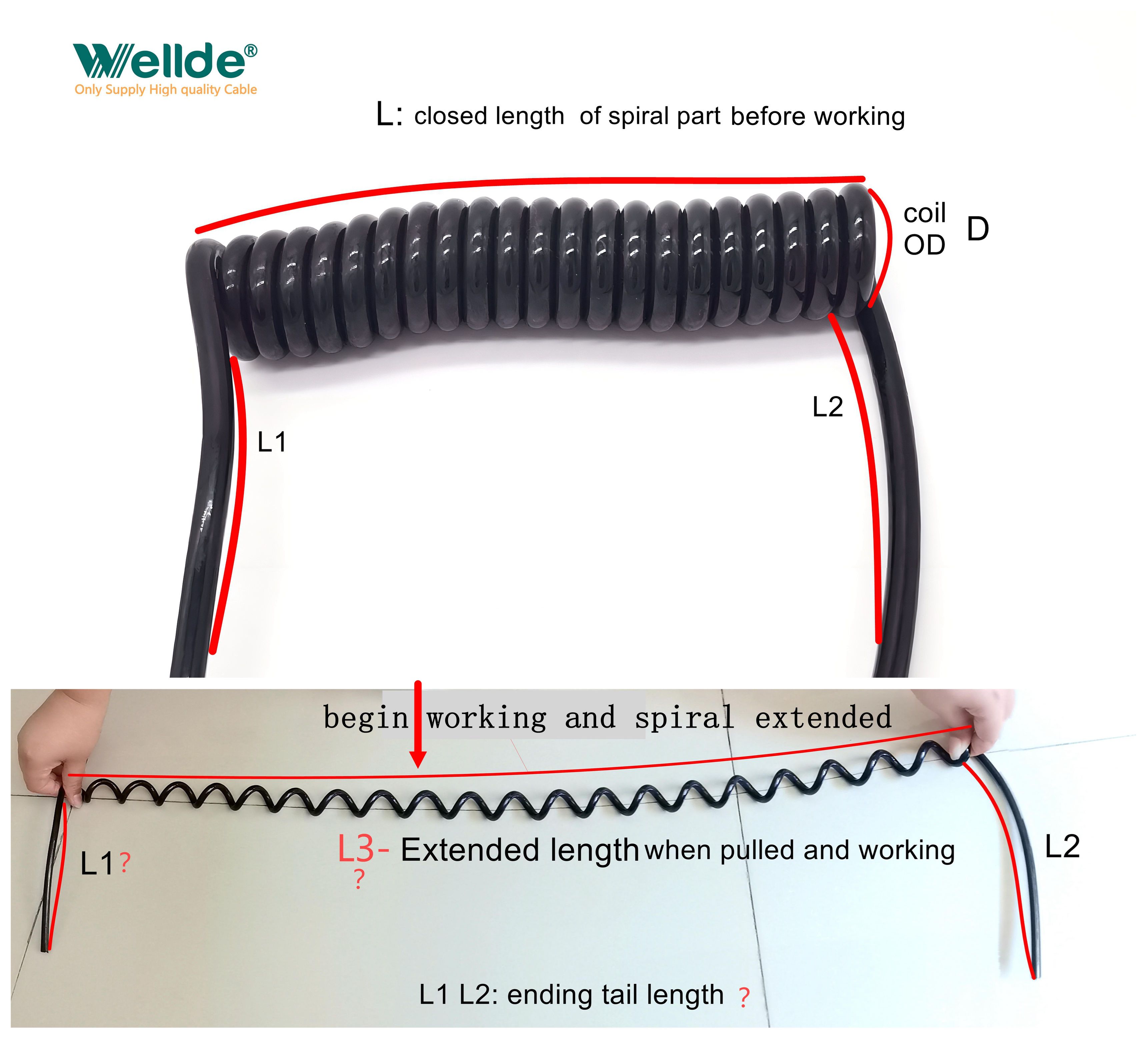

Tail Lengths: L1 = 21cm, L2 = 22cm
Working Length: 8 meters
Natural Length: 26cm
Outer Diameter of Cable: 11.08mm
Outer Diameter of Coil: 46.4mm
Features: UV-resistant, waterproof, abrasion-resistant, LSZH
Long Reach, Compact Form – The coiled design extends to 8 meters while remaining compact when retracted.
Environmental Resistance – PUR jacket is highly durable in outdoor or high-movement settings.
Enhanced Safety – LSZH materials reduce toxic emissions in case of fire.
Multi-core Flexibility – 5 conductors allow for efficient signal and power distribution.
Reliable Connectivity – Bare copper ensures low resistance and high conductivity.
Q1: Do you offer customization for tail lengths or core numbers?
A1: Absolutely. We support OEM and ODM customization. Tail lengths, core count, sheath material, insulation color, and more can be adjusted to meet your project's specific requirements.
Q2: What shipping options are available for this spiral cable?
A2: We offer flexible shipping methods including DHL, FedEx, UPS, air freight, and sea freight. Delivery time typically ranges from 7 to 15 working days, depending on your location and order quantity.
