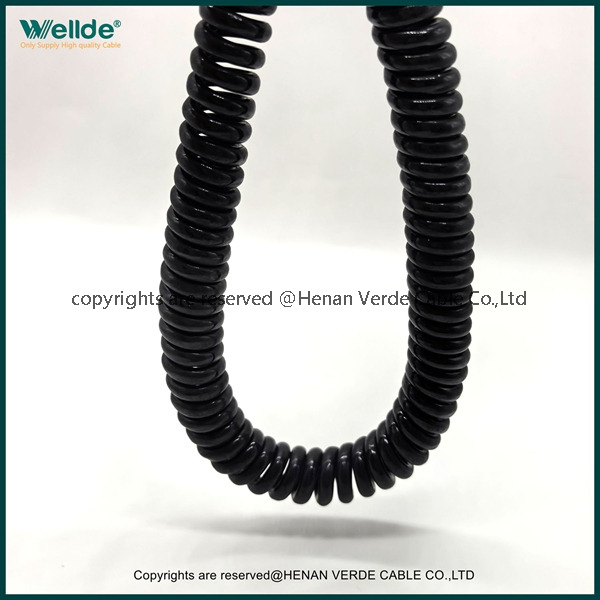

6*0.12mm high quality coiled spiral cable for truck

Product Information

Environmental-friendly PUR spiral signal spring wire, different from industrial heavy-duty spring wires, it features softness, low interference, non-toxicity and environmental friendliness. It is suitable for medical, laboratory and precision weak electrical equipment.

Internal structure

1. Ultra-fine 0.12mm² tin-plated copper conductor: Extremely low signal transmission loss, no interference from noise, ensuring precise and stable data of the instrument.

2. Highly elastic flexible insulating material: The core wire insulation is extremely soft, and it does not harden even after repeated bending, thus avoiding signal transmission lag.

3. Six-color core wire: In medical equipment and laboratory instruments, there are numerous wiring lines. The color-coded design facilitates rapid line inspection and repair by maintenance personnel.

Specification parameters

Core count: 6 cores

Single core cross-sectional area: 0.12mm²

Sheath: PUR

Operating temperature: -30℃ to 80℃

Stretch ratio: 3 times

Rated voltage: 300V
