Copper wire - Earthing Cable for Electrical Power Project
More than 15 years produceing Experience
Different Specifications can be Customized as per your requirement.
Copper wire for Substation or Power plant project,or As Earthing wire usage
Hot sale to South Africa,Southeast Asia,North America
Standard:IEC BS or ASTM
Structure:

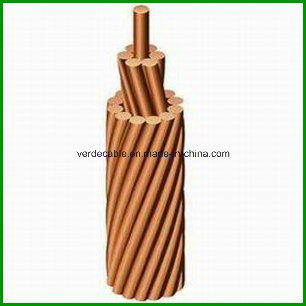

1)Bare Stranded conductor,Flexible or common,

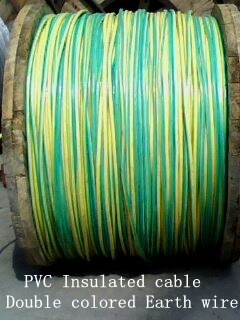

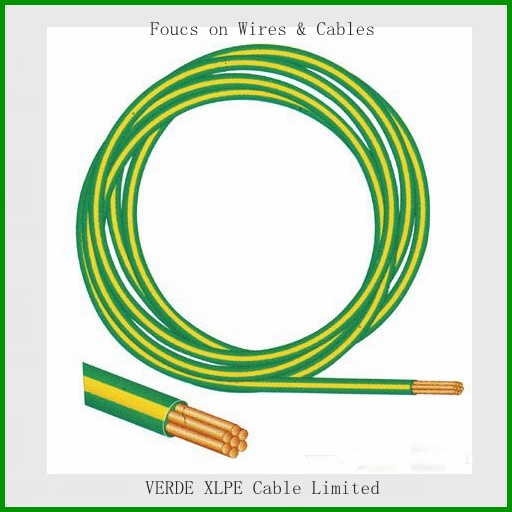

2)PVC Insulated cable earth wire , picture as follows.
Specification:
10mm2,16mm2, 25mm2,35mm2 , 50mm2, 75mm2, 95mm2,120mm2...........185mm2......400mm2
Packing:
Wooden Drum,Steel wooden drum
Technical Data List
| Specification mm2 | Conductor Structure Stranding No.s / Diameter(mm) | ||
| 35 | 7 | / | 2.52 |
| 50 | 7 | / | 3.05 |
| 70 | 14 | / | 2.55 |
| 95 | 19 | / | 2.55 |
| 120 | 19 | / | 2.88 |
| 150 | 30 | / | 2.55 |
| 185 | 37 | / | 2.55 |
| 240 | 48 | / | 2.55 |
| 300 | 60 | / | 2.55 |
| 400 | 60 | / | 2.95 |
| 500 | 60 | / | 3.30 |
| 630 | 60 | / | 3.65 |
