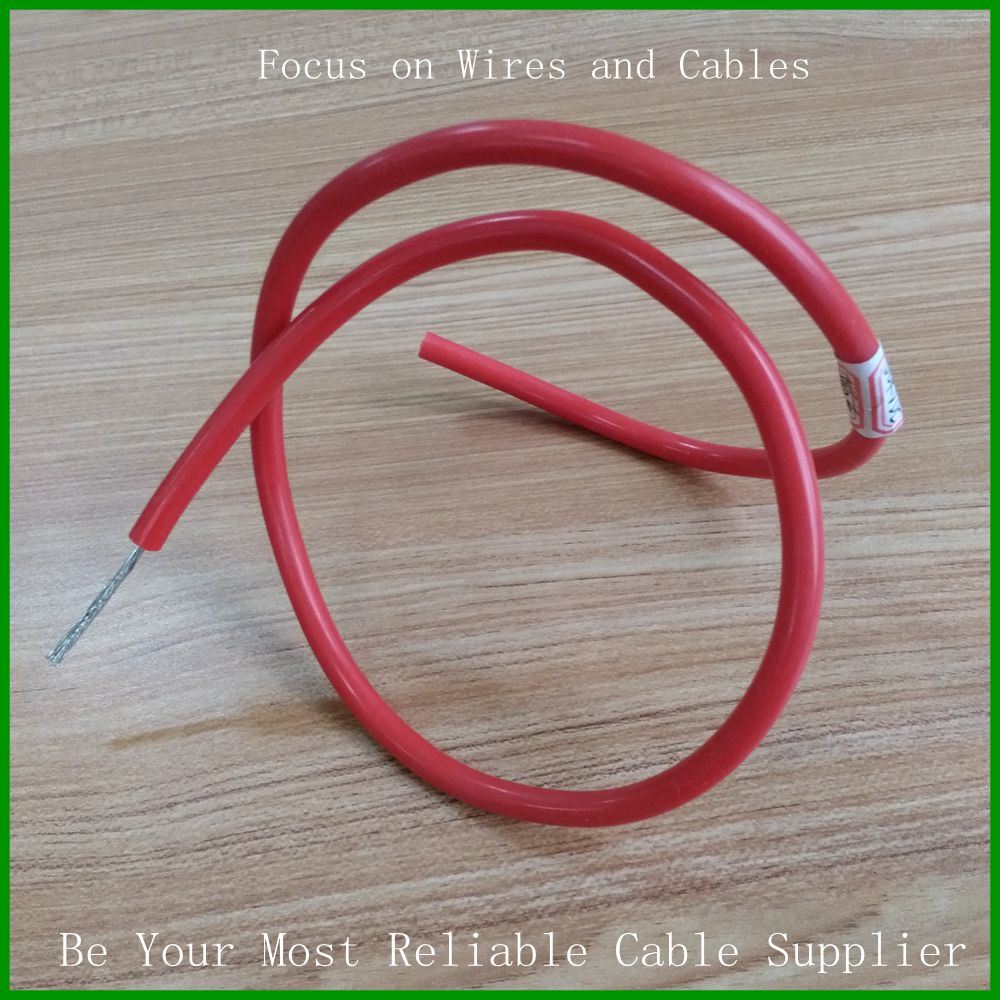

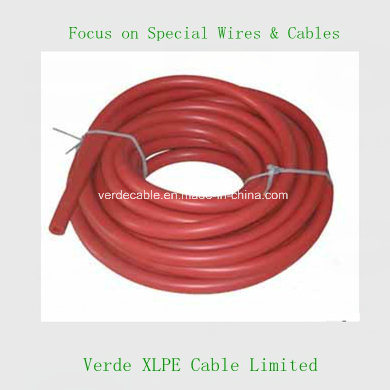

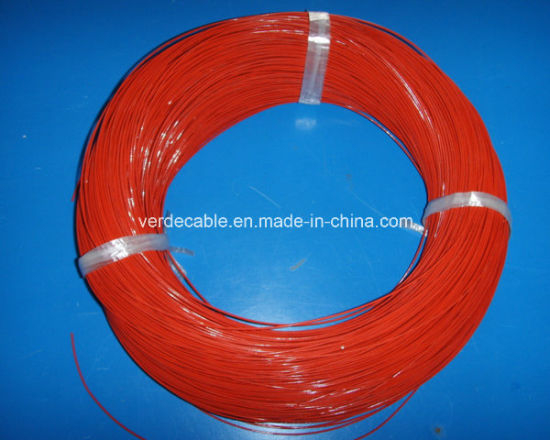

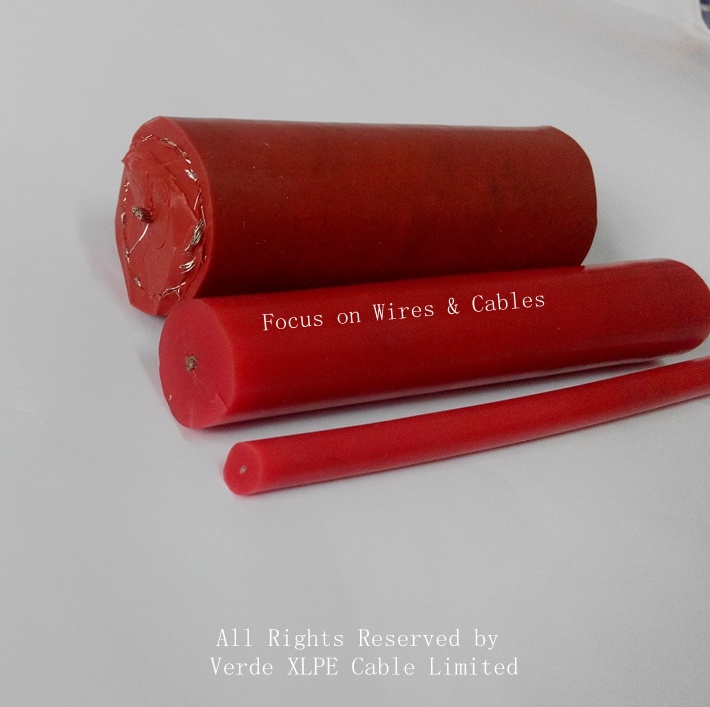

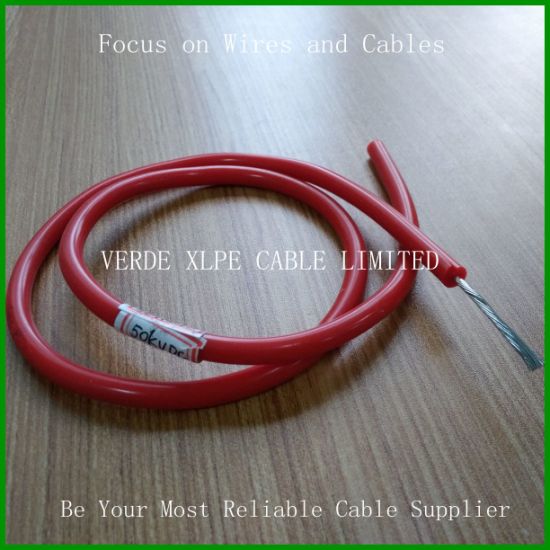

High Temperature Resistant Silicone Wire
Temperature Ratings: -60ºC~+200ºC
Voltage:300/500V
Conductor: Tinned Copper, Nickel Copper
Insulation: Silicone Rubber
| Conductor | Insulation Size | Max. Conductor Resistance (at 20ºC) (Ω/km) | Ref. Weight (kg/km) | ||||
| Size | Nominal Area (mm2) | Conductor Structure (No./mm) | Nominal Thickness (mm) | Nominal Diameter (mm) | Max. Diameter (mm) | ||
| 26 | 0.128 | 7/0.16 | 0.78 | 2.1 | 2.3 | 143.0 | 4.6 |
| 24 | 0.205 | 7/0.20 | 0.78 | 2.2 | 2.4 | 92.0 | 5.7 |
| 22 | 0.324 | 7/0.26 | 0.78 | 2.4 | 2.6 | 56.8 | 8.3 |
| 20 | 0.519 | 7/0.32 | 0.78 | 2.5 | 2.7 | 40.1 | 10.4 |
| 18 | 0.823 | 7/0.40 | 0.78 | 2.8 | 3.0 | 23.0 | 14.6 |
| 16 | 1.31 | 7/0.50 | 0.78 | 3.1 | 3.3 | 14.6 | 20 |
| 14 | 2.08 | 41/0.254 | 0.78 | 3.6 | 3.8 | 9.9 | 27 |
| 12 | 3.31 | 19/0.50 | 0.78 | 4.1 | 4.3 | 5.4 | 36 |
| 24 | 0.2 | 1/0.50 12/0.15 | 0.78 | 2.2 | 2.4 | 95 | 5.9 |
| 22 | 0.3 | 1/0.62 17/0.15 | 0.78 | 2.3 | 2.5 | 71.2 | 7.2 |
| 20 | 0.5 | 1/0.80 28/0.15 | 0.78 | 2.5 | 2.7 | 40.1 | 10.1 |
| 18 | 0.75 | 1/1.0 24/0.20 | 0.78 | 2.8 | 3.0 | 26.7 | |
