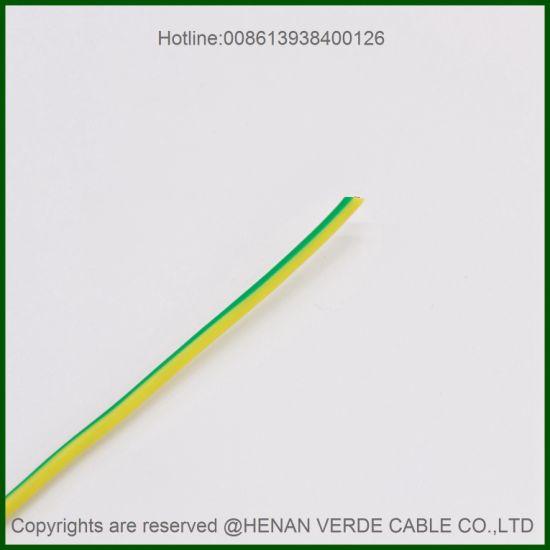

AWG Style Different Size THHN / THWN Cable for Building THHN Cable
Reference standard: UL 83 & UL 1581,UL1063,CSA C22.2No.75-03
1. Rated Voltage:
600/1000V
2. Rated Temperature (ºC):
90ºCdry for THHN,75ºC day or 75ºC for THWN,90ºC dry or 90ºC wet for THWN-2.

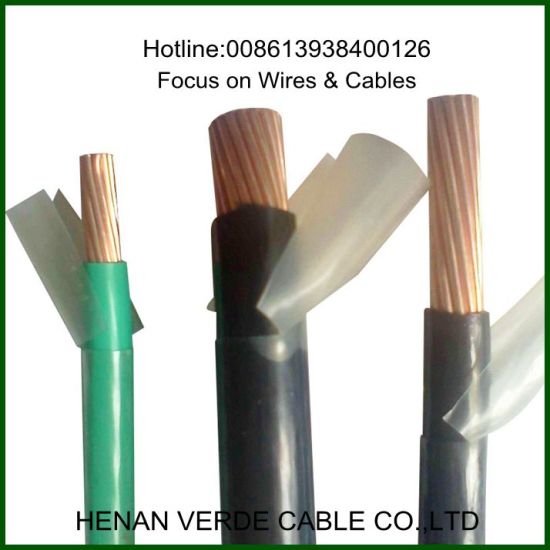

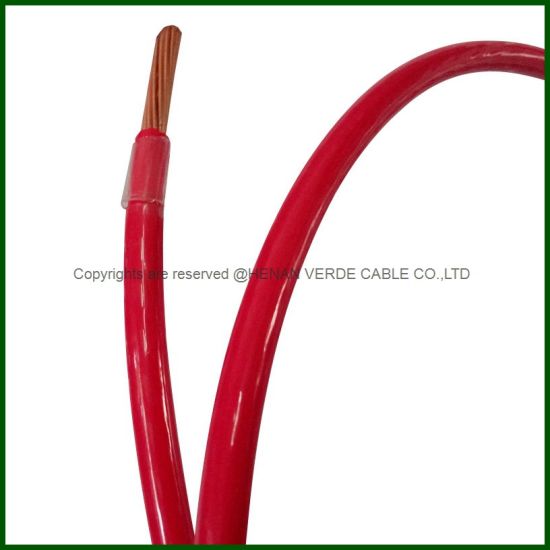

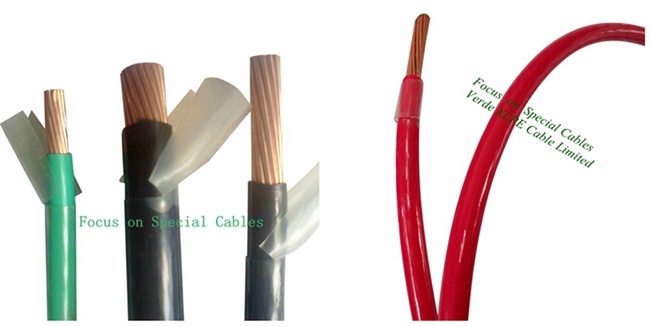

3. Structure:
Conductor: Solid or Stranded Copper
Insulation: PVC
Sheathing: Nylon

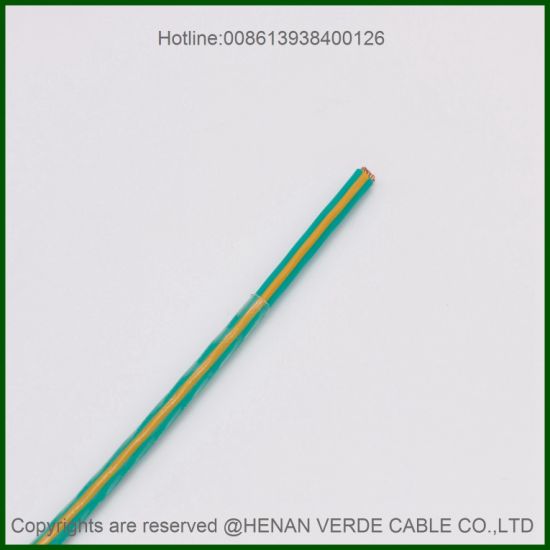

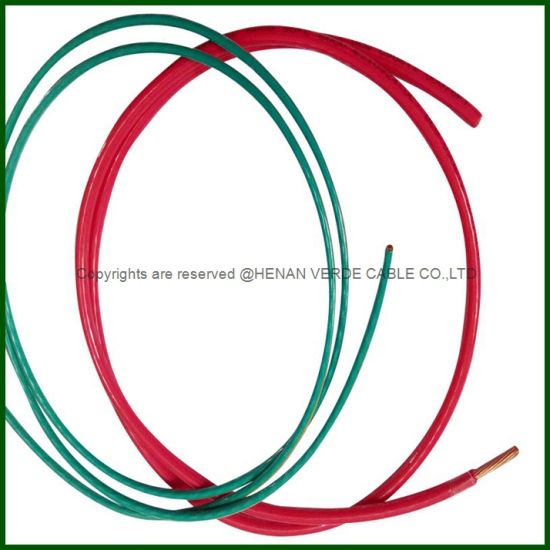

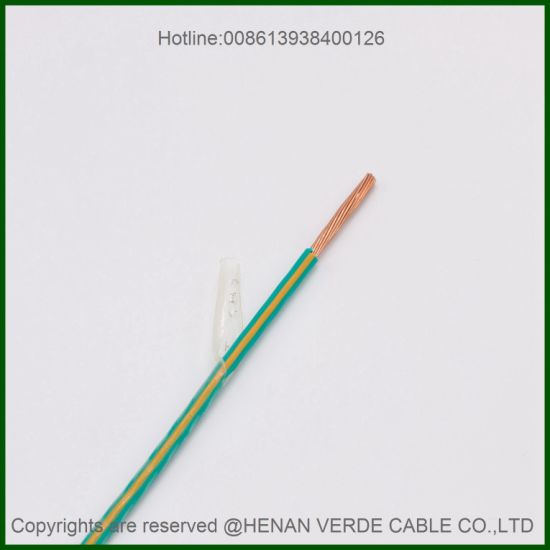

4. Color:
We can produce different colors as per the requirements of the clients.
Part No. | Conductor | Insulation | Jacket | Max Dia- meter (mm) | Ref.W (kg/km) | |||||
| Type | Size (AWG) | Construction (No./mm) | Dia- Meter (mm) | Nominal Thickness (mm) | Nominal Diameter (mm) | Minimum Thickness At any point (mm) | Nominal Diameter (mm) | |||
| THHN-14B | Stranded Conductor | 14 | 7/0.62 | 1.86 | 0.38 | 2.66 | 0.10 | 2.90 | 3.3 | 25 |
| THHN-14B1 | 14 | 19/0.38 | 1.90 | 0.38 | 2.70 | 0.10 | 2.94 | 3.4 | 25 | |
| THHN-12B | 12 | 7/0.78 | 2.34 | 0.38 | 3.14 | 0.10 | 3.38 | 3.8 | 38 | |
| THHN-12B1 | 12 | 19/0.47 | 2.35 | 0.38 | 3.15 | 0.10 | 3.39 | 3.8 | 38 | |
| THHN-10B | 10 | 7/0.98 | 2.94 | 0.51 | 4.00 | 0.10 | 4.24 | 4.8 | 59 | |
| THHN-10B1 | 10 | 19/0.60 | 3.00 | 0.51 | 4.06 | 0.10 | 4.30 | 4.8 | 59 | |
| THHN-8B | 8 | 7/1.23 | 3.69 | 0.76 | 5.25 | 0.13 | 5.55 | 6.2 | 97 | |
| THHN-8B1 | 8 | 19/0.75 | 3.75 | 0.76 | 5.31 | 0.13 | 5.61 | 6.3 | 96 | |
| THHN-6B | 6 | 7/1.56 | 4.68 | 0.76 | 6.24 | 0.13 | 6.54 | 7.3 | 147 | |
| THHN-6B1 | 6 | 19/0.95 | 4.77 | 0.76 | 6.33 | 0.13 | 6.63 | 7.4 | 146 | |
| THHN-4B | 4 | 7/1.96 | 5.88 | 0.76 | 7.44 | 0.13 | 7.74 | 8.7 | 135 | |
| THHN-4B1 | 4 | 19/1.19 | 5.95 | 0.76 | 7.51 | 0.13 | 7.81 | 8.7 | 135 | |
| THHN-3B | 3 | 7/2.20 | 6.60 | 1.02 | 8.68 | 0.15 | 9.02 | 10.0 | 292 | |
| THHN-3B1 | 3 | 19/1.33 | 6.65 | 1.02 | 8.73 | 0.15 | 9.07 | 10.0 | 291 | |
| THHN-2B | 2 | 7/2.47 | 7.41 | 1.02 | 9.49 | 0.15 | 9.83 | 11.0 | 361 | |
| THHN-2B1 | 2 | 19/1.50 | 7.50 | 1.02 | 9.58 | 0.15 | 9.92 | 11.0 | 361 | |
| THHN-1B | 1 | 19/1.68 | 8.40 | 1.02 | 10.48 | 0.18 | 10.88 | 12.1 | 457 | |
| THHN-1/0B | 1/0 | 19/1.89 | 9.45 | 1.27 | 12.03 | 0.18 | 12.43 | 13.8 | 585 | |
| THHN-2/0B | 2/0 | 19/2.12 | 10.60 | 1.27 | 13.18 | 0.18 | 13.58 | 15.1 | 724 | |
| THHN-3/0B | 3/0 | 19/2.38 | 11.90 | 1.27 | 14.48 | 0.18 | 14.88 | 16.5 | 900 | |
| THHN-4/0B | 4/0 | 19/2.67 | 13.35 | 1.27 | 15.93 | 0.18 | 16.33 | 18.1 | 1118 | |
| THHN-14A | Solid Conductor | 14 | 1/1.63 | 1.63 | 0.38 | 2.43 | 0.10 | 2.67 | 3.1 | 22 |
| THHN-12A | 12 | 1/2.05 | 2.05 | 0.38 | 2.85 | 0.10 | 3.09 | 3.5 | 36 | |
| THHN-10A | 10 | 1/2.59 | 2.59 | 0.51 | 3.65 | 0.10 | 3.89 | 4.4 | 57 | |
| THHN-8A | 8 | 1/3.26 | 3.26 | 0.76 | 4.82 | 0.13 | 5.12 | 5.7 | 94 | |
Here only list one parts of our products,If you want to know more about us and our products,pls contact us. Same Sincerity and Care With Every Customer No matter the order is Small or Big!
Linda Lee
Manager of Export Dep.
Vice General Manager
HENAN VERDE CABLE CO.,LTD
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Wires and Cables
Be Your Most Reliable Supplier
