Copper Conductor PVC Insulated Electric Wire for House Building

Single core H07V-R H07V-K Copper conductor PVC Insulation Electric Wire Flexible wire

Rated voltage 300/500V,450/750V
Conductor class: class5
Conductor material:Stranded Copper or Stranded Tinned Copper
Insulation:PVC or Rubber


Specification:
Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2
more size and specification as per your customized

Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request

Packing:
1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum

Technical data

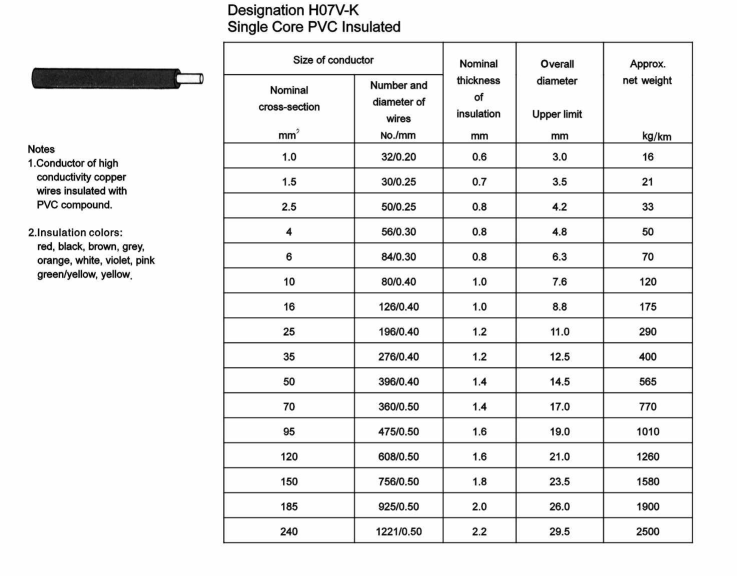

1).Single core Flexible cable (H07V-K Cable)

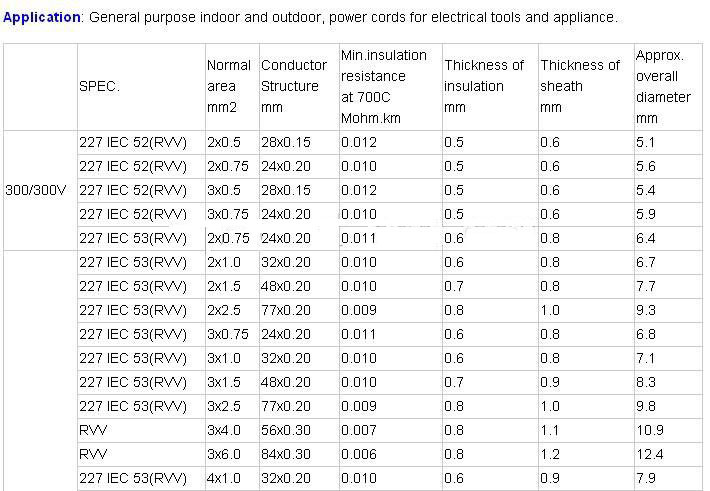

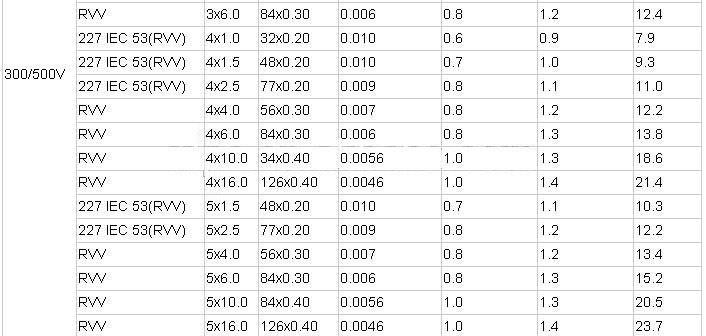

2) Technical data for 2core,3core,4core as follows
