7 core spiral cable
Wellde®
Support
AWG/Color/Length

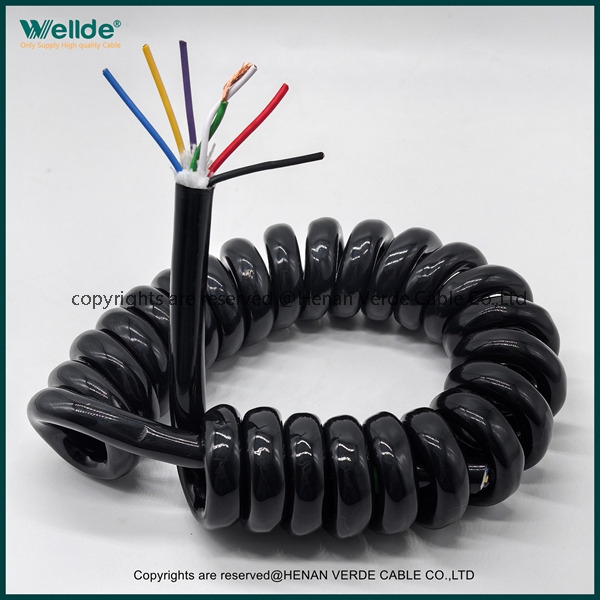

Wellde® Spiral Cable Product Overview
This 7-core composite telescopic spring cable is tailored for handheld control handles of construction machinery such as excavators, loaders, and cranes.
Spiral Cable Core advantages of the product
1. Dual circuit separation design: The power supply and signal lines are completely separated to eliminate voltage interference signals
2. Differential twisted pair signal line: Green and white twisted pair cable resistant to electromagnetic interference, stable signal in complex industrial control environments
3. Wear resistant and durable PUR outer skin on construction site: long service life
4. Low temperature and high elasticity characteristics: It can still stretch and rebound smoothly during outdoor construction in winter
5. Shock absorption filling structure: The internal wire core of the equipment is not damaged by compression in the vibration environment
6. Flexible customization of multiple specifications: coil thickness, stretching length, and plug customization as needed
Technical specification parameter table
Item | Parameter |
Cable Structure | 7-core composite spiral wire |
Power cord specifications | 2×1.0mm² |
Signal wire specifications | 5×0.75mm² |
Outer sheath | Oil resistant PUR |
Conductor | Stranded tinned copper wire with multiple strands |
Scalable features | Stretching with automatic rebound, without deformation or relaxation |
Operating temperature | -30℃ ~ +85℃ |
Certification Qualifications | CE、RoHS |
