1.Product Introduction
Flat ribbon cable is designed for internal signal transmission and low-voltage connections inside electronic equipment. It features heat-resistant PVC insulation with 125°C temperature resistance.
2.Key Technical Parameters
Parameter | Value |
|---|---|
Model Series | 1250C |
Operating Temperature | -20°C to +125°C |
Rated Voltage | 300V |
Conductor Material | Bare copper |
Insulation Material | Heat-resistant PVC |
Pitch | 1.0mm / 1.27mm / 2.0mm (custom available) |
Conductor Count | 4 to 64 conductors |
Color | Gray (edge color marking available) |
Environmental Compliance | RoHS |
3.Main Applications
Office equipment: printers, copiers, scanners internal wiring
Home appliances: air conditioner control panels, washing machine display modules, refrigerators
Industrial control: PLC cabinets, servo drives, sensor signal transmission
Medical devices: patient monitors, ultrasound equipment internal wiring
LED displays: signal jumpers between modules
4.Flat Cable Product Advantages
High Temperature Resistance
125°C rating solves aging and cracking problems common with 80°C or 105°C cables in high-heat environments.
Signal Integrity
Flat parallel structure ensures consistent capacitance and inductance across all conductors – ideal for high-speed signal transmission with reduced crosstalk.
Assembly Efficiency

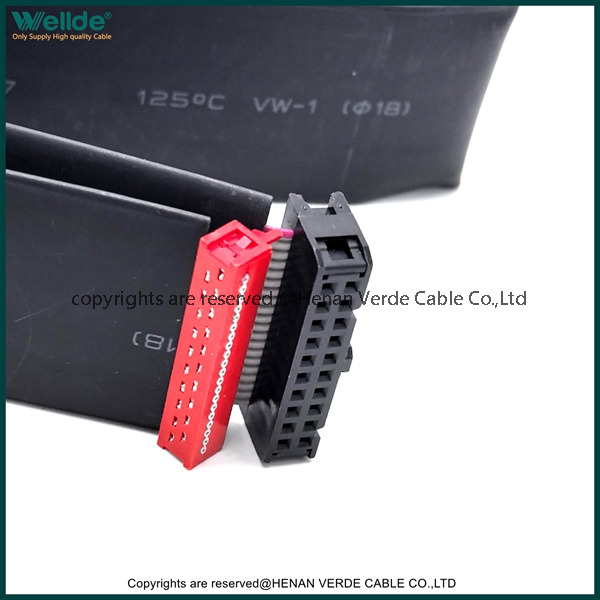

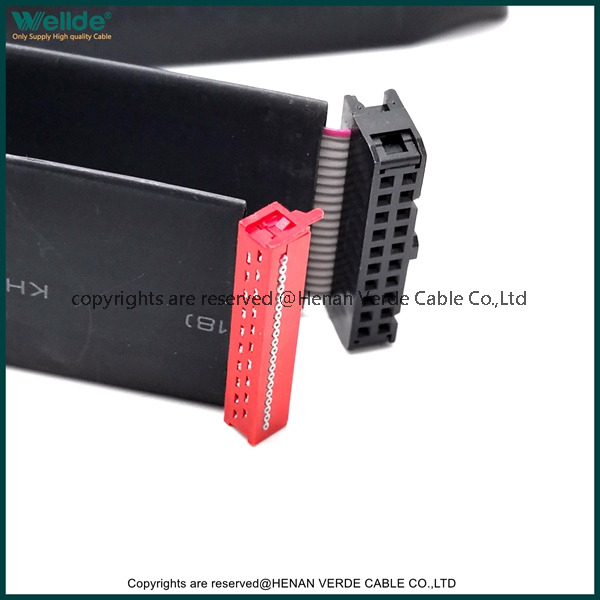

Standard 1.27mm pitch directly mates with IDC connectors for mass termination, greatly improving harness assembly efficiency.
Customization Flexibility
Supports custom conductor count, pitch, length, and end processing (stripping, tinning, connector crimping).
