Copper wire - Earthing Cable for Electric Power Project

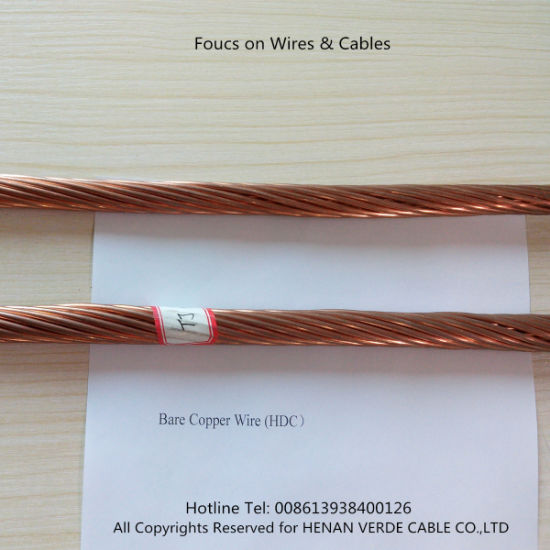

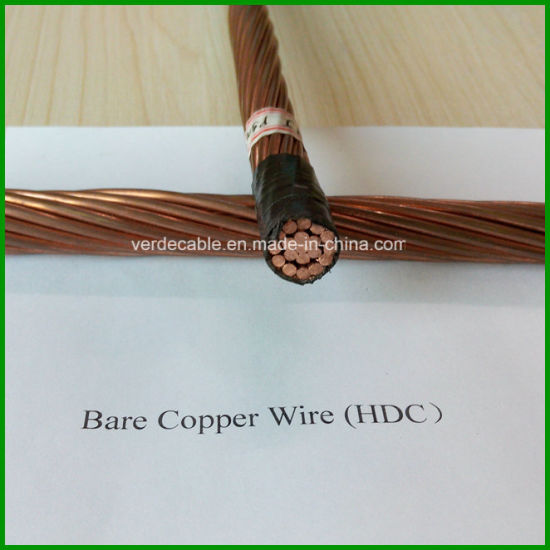

1.Bare Copper Conductor Earthing Cable for Power Transmission Line,Power Plant and Substaion Project.
2.Hot sale to Middle East,USA,Russia,South Africa,Africa and Southeast Aisa
3.Standard:IEC BS ASTM, or Acoording to your request
4.Structure:
Stranded conductor,Flexible or common
Bare Or PVC Insulated Cable
Specification:
10mm2,16mm2,25mm2,35mm2,50mm2,75mm2,95mm2,120mm2...........185mm2........630mm2
Customized cable is avaiable.
Packing:
Wooden Drum,Wooden Steel Drum, Coil packing way for small size conductor
Technical Data List
| Specification mm2 | Conductor Structure Stranding No.s / Diameter(mm) | ||
| 35 | 7 | / | 2.52 |
| 50 | 7 | / | 3.05 |
| 70 | 14 | / | 2.55 |
| 95 | 19 | / | 2.55 |
| 120 | 19 | / | 2.88 |
| 150 | 30 | / | 2.55 |
| 185 | 37 | / | 2.55 |
| 240 | 48 | / | 2.55 |
| 300 | 60 | / | 2.55 |
| 400 | 60 | / | 2.95 |
| 500 | 60 | / | 3.30 |
| 630 | 60 | / | 3.65 |
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Special Wires and Cables
Be Your Most Reliable Cable Supplier
