PVC Insulated Electric Cable Wire for Household Building and Light
Different size and specification can be Customized for your different requirement.
including H07V-U H-7V-R H0V-K , NYY, NYM, TW,THW
Rated voltage 300/500V,450/750V Electric Wire
Standard:GB 5023.1, IEC 60227 ,BS6004,B S6242Y 3
Structure:
Conductor:Solid or Stranded Copper
Insulation:PVC
Sheathing:PVC
Specification:
0.5mm2, 0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2,6.0mm2........185mm2
Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request

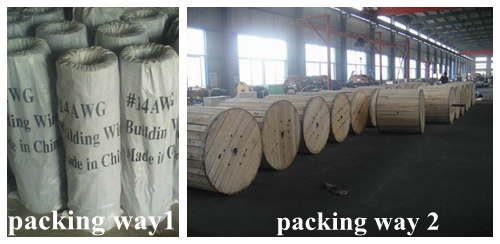

Packing:
100Meter per Roll, then put into PP Plastic bags or into Cartons.
Drum or According to the customer's request
Technical Type Introduction:
Type | Description | Core Number | Area mm2 | Voltage V | Standard |
| 227IEC01 (BV) | Single-core hard drawn non-sheathed cable | 1 | 1.5~400 | 450/750 | GB5023.3 IEC60227 |
| 227IEC02 (RV) | Single-core soft drawn non-sheathed cable | 1 | 1.5~240 | 450/750 | |
| 227IEC05 (BV) | Single-core solid conductor drawn non sheathed cable for internal wiring is 700C | 1 | 0.5~1.0 | 300/500 | |
| 227IEC06 (RV) Flexible type | Single-core soft drawn non sheathed cable for internal wiring is700C | 1 | 0.5~1.0 | 300/500 | |
| 227IEC07 (BV-90) | Single-core solid conductor drawn non sheathed cable for Indoors wiring is 900C | 1 | 0.5~2.5 | 300/500 | |
| 227IEC08 (RV-90) | Single-core Soft drawn non sheathed Wire for indoors wiring is 900C | 1 | 0.5~2.5 | 300/500 | GB5023.3 |
| 227IEC10 (BVV) | PVC sheathed Wires | 2~5 | 1.5~35 | 300/500 | GB5023.4 |
| 227IEC52 (RVV) | PVC sheathed Soft wires | 2,3 | 0.5/0.75 | 300/300 | GB5023.5 |
| 227IEC53 (RVV) | Ordinary PVC sheathed soft wires | 2~5 | 0.75~2.5 | 300/500 | |
| BV | Cu-core PVC insulated wires | 1 | 0.75/1.0 | 300/500 | JB8734.2 |
| BLV | Al-core PVC insulated wires | 1 | 2.5~400 | 450/750 | |
| BVR | Cu-core PVC insulated soft wires | 1 | 2.5~70 | 450/750 | |
| BVV | Cu-core PVC insulated and sheathed circle type wires | 1 | 0.75~10 | 300/500 | JB8734.2 |
| BLVV | Al-core PVC insulated and sheathed circle type cable | 1 | 2.5~10 | 300/500 | |
| BVVB (Flat) | Cu-core PVC insulated and sheathed Flat type cable | 2,3 | 0.75~10 | 300/500 | |
| BLVVB (Flat) | Al-core PVC insulated and sheathed Flat type cable | 2,3 | 2.5~10 | 300/500 | |
| RVVP | Cu-core PVC insulated and sheathed the Metallic shielded soft cable | 1~24 | 0.08~2.5 | 300/500 | JB8734.5 |
If you want to know more techincal information,pls contact us.
sending email or telephon us:
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Cables and Wires
Be Your Most Reliable Supplier
