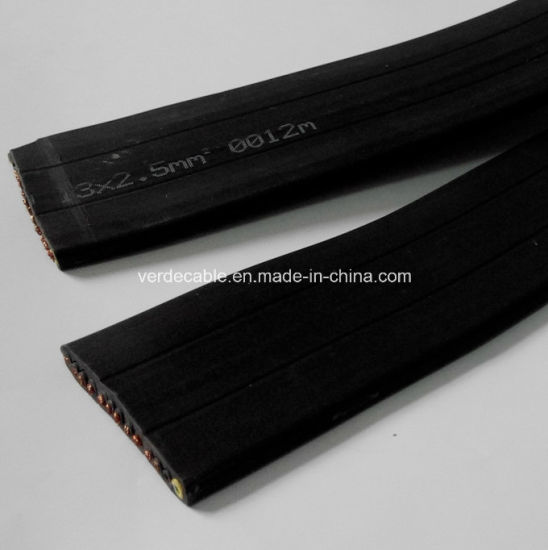

Flexible Traveling Flat Cable for Conveyor and Crane

Oil Resistant Flexible Flat Cable for Crane Lifter and Conveyors

1.15years producing experience
2. OEM is available.
3. Speical types and sepcifications can be Customized.

4.Description of cable:

Conductor :  Superfine Stranded Copper wires,
                   Class5 Acc. to VDE0295

Insulation:    Speical Compounded PVC
                    Oil resistant, Flame Resistant, self-extinguishing

Sheathing:   Speical Compounded PVC or Acrylonitrile Butadiene Polyvinyl Chloride Rubber
                    Fine Oil-resistance , Cold resisance, flame resistance

Color of sheathing: grey , black

Specification:
Core Nos.:    2core, 3core, 4core,.........16C,17C,.....20C.21C.22C...66Core
Nominal Section Area:0.75mm2,0.82,1.0,1.25,1.5,2.5.....~ 95mm2
More size and specification can be customized

Technical Data:
Rated voltage:  300/500V
Test voltage:     2500V
Minimum bending radius: 0.3m<L<0.3m
Used under normal conditions,the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C


Packing:
1.100meter per roll
2. at least 500meter per drum

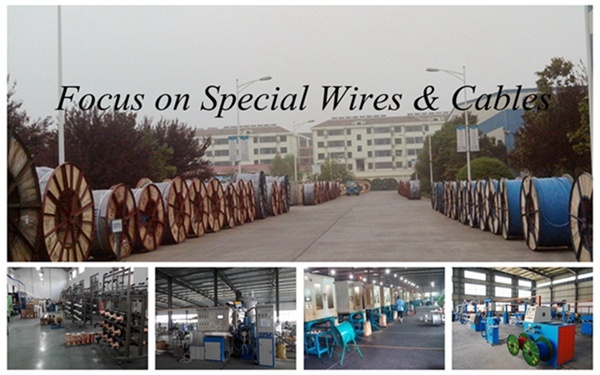

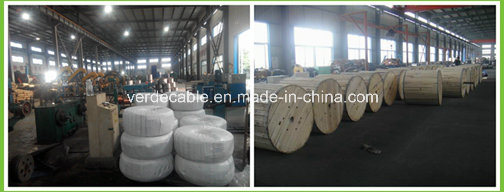

Our Workshop for View
