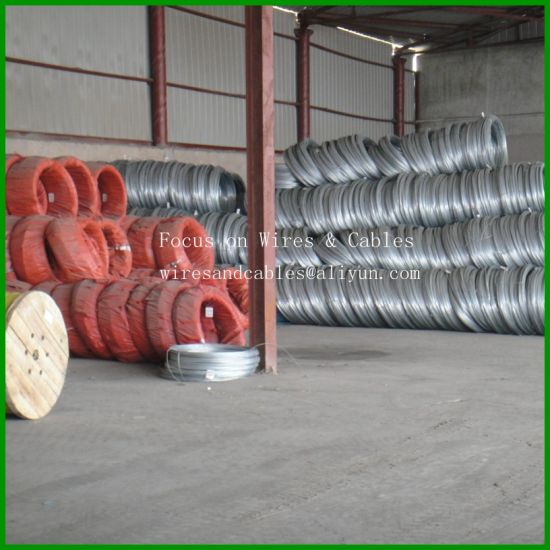

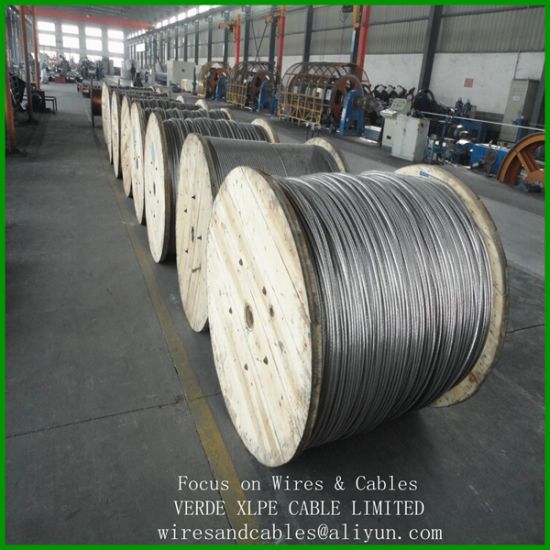

Galvanized Stranded Steel Wire, Stay Wire

Share to:

Galvanized Stranded Steel Wire, Stay Wire

Availability:

Quantity:



Inquire Add to Basket

OEM:
Yes
Customized :
Yes

Product Description

GALVANIZED STEEL WIRE STRANDS / Stay Wire /Guy Wire

Different size and Standard can be Customized by your requirement

Standard: Chinese Standard GB 1200-88

Construction	Wire Dia.	Overall Dia.	Total Area		Specific Tensile Strength
	Wire Dia.	Overall Dia.	Total Area	1175	1270	1370	1470	1570	Weight
	mm	mm	mm²	kN	kN	kN	kN	kN	kg/100m
1×3	2.90	6.2	19.82	23.29	25.17	27.15	29.14	31.12	15.99
	3.20	6.4	24.13	28.35	30.65	33.06	35.47	37.88	19.47
	3.50	7.5	28.86	33.91	36.65	39.54	42.43	45.31	23.29
	4.00	8.6	37.70	44.30	47.88	51.65	8.08	59.19	30.42
	1.00	3.0	5.50	6.46	6.98	7.54	11.64	8.64	4.37
	1.20	3.6	7.92	9.31	10.06	10.85	11.64	12.43	6.29
	1.40	4.2	10.78	12.67	13.69	14.77	15.85	16.92	8.56
	1.60	4.8	14.07	16.53	17.87	19.28	20.68	22.09	11.17
	1.80	5.4	17.81	20.93	22.62	24.40	26.18	27.96	14.14
	2.00	6.0	21.99	25.84	29.73	30.13	32.32	34.52	17.46
1×7	2.30	6.9	29.08	34.17	36.93	39.84	42.75	45.66	23.09
	2.60	7.8	37.17	43.60	47.20	50.92	54.63	58.35	29.51
	2.90	8.7	46.24	54.33	58.72	63.35	67.97	72.60	36.71
	3.20	9.6	56.30	66.15	71.50	77.13	82.76	88.39	44.70
	3.50	10.5	67.35	79.14	85.85	92.27	99.00	105.74	53.48
	3.80	11.4	79.39	93.28	100.82	108.76	116.70	124.64	63.04
	4.00	12.0	87.96	103.35	111.71	120.50	129.30	138.10	69.84
	1.60	8.0	38.20	44.88	48.51	52.33	56.15	59.97	30.40
	1.80	9.0	48.35	56.81	61.40	66.24	71.07	75.91	38.49
	2.00	10.0	59.69	70.14	75.81	81.78	87.74	93.71	47.51
	2.30	11.5	78.94	92.75	100.25	108.15	116.04	123.94	62.84
1×19	2.60	13.0	100.88	118.53	128.12	138.20	148.29	158.38	80.30
	2.90	14.5	125.50	147.46	159.38	171.93	184.48	197.03	99.90
	3.20	16.0	152.81	179.55	194.06	209.35	224.63	239.91	121.64
	3.50	17.5	182.80	214.79	232.16	250.44	268.72	287.00	145.51
	4.00	20.0	238.76	280.54	303.23	327.10	350.98	374.86	190.05

GALVANIZED STEEL WIRE STRAND
Standard: ASTM A475

Number of Wire/Dia.	Approx. Strand Dia.		Siemem Martin Grade	High Strength Grade	Extra-high Strength Grade	Approx.Weight
	Inch	mm	kN	kN	kN	kg/km
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.040	29.981	174
3/3.05	1/4	6.35	-	-	-	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.140	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	-	-	-	118
7/1.83	7/32	5.56	11.387	17.126	24.020	145
7/2.03	1/4	6.35	14.012	21.129	29.581	181
7/2.36	9/32	7.14	18.905	28.469	39.812	243
7/2.64	5/16	7.94	23.798	35.586	49.820	305
7/2.77	5/16	7.94	-	-	-	335
7/3.05	3/8	9.52	30.915	48.040	68.503	407
7/3.68	7/16	11.11	41.591	64.499	92.523	594
7/4.19	1/2	12.70	53.823	83.627	119.657	768
7/4.78	9/16	14.29	69.837	108.981	155.688	991
7/5.26	5/8	15.88	84.961	131.667	188.605	1211
19/2.54	1/2	12.70	56.492	84.961	118.768	751
19/2.87	9/16	12.49	71.616	107.202	149.905	948
19/3.18	5/8	15.88	80.513	124.995	178.819	1184
19/3.81	3/4	19.05	116.543	181.487	259.331	1719
19/4.50	7/8	22.22	159.691	248.211	354.523	2352
19/5.08	1	25.40	209.066	325.610	464.839	2384
37/3.63	1	25.40	205.508	319.827	456.832	3061
37/4.09	11/8	28.58	262.000	407.457	581.827	4006
37/4.55	11/4	31.75	324.720	505.318	721.502	4833

GALVANIZED STEEL WIRE STRAND
Standard: BS 183:1972

Number of Wires/Dia.	Approx. Strand Dia.	Minimum Breaking Load of Strand							Approx Weight
Number of Wires/Dia.	Approx. Strand Dia.	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx Weight
	mm	kN	kN	kN	kN	kN	kN	kN	Kg/km
3/1.80	3.9	2.65	3.66	-	-	-	-	-	60
3/2.65	5.7	5.80	7.95	-	-	-	-	-	130
3/3.25	7.0	8.70	11.95	-	-	-	-	-	195
3/4.00	8.6	13.20	18.10	-	-	-	-	-	295
4/1.80	4.4	3.55	4.90	-	-	-	-	-	80
4/2.65	6.4	7.70	10.60	-	-	-	-	-	172
4/3.25	7.9	11.60	15.90	-	-	-	-	-	260
4/4.00	9.7	17.60	24.10	35.20	-	-	-	-	390
5/1.50	4.1	3.10	4.24	6.18	-	-	-	-	69
5/1.80	4.9	4.45	6.10	8.90	-	-	-	-	95
5/2.65	7.2	9.65	13.25	19.30	-	-	-	-	220
5/3.25	8.8	14.50	19.90	29.00	-	-	-	-	320
5/4.00	10.8	22.00	30.15	43.95	-	-	-	-	490
7/0.56	1.7	0.60	0.83	1.20	-	1.70	1.98	2.24	14
7/0.71	2.1	0.97	1.33	1.94	-	2.75	3.19	3.60	28
7/0.85	2.6	1.39	1.90	2.80	-	3.95	4.57	5.15	31
7/0.90	2.7	1.55	2.14	3.1	-	4.45	5.12	5.80	35
7/1.00	3.0	1.92	2.64	3.85	-	5.50	6.32	7.15	43
7/1.25	3.8	3.01	4.10	6.00	-	8.55	9.88	11.15	67
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14.00	84
7/RS*	4.3	3.85	5.28	7.70	9.35	11.00	12.65	14.30	86
7/1.60	4.8	4.90	6.75	9.85	11.95	14.10	16.20	18.30	110
7/1.80	5.4	6.23	8.55	12.45	-	17.80	20.50	23.20	140

GALVANIZED STEEL WIRE STRAND
Standard: BS 183:1972

Number of Wires/Dia.	Approx. Strand Dia.	Minimum Breaking Load of Strand							Approx Weight
Number of Wires/Dia.	Approx. Strand Dia.	Grade 700	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx Weight
	mm	kN	kN	kN	kN	kN	kN	kN	Kg/km
7/2.00	6.0	7.70	10.55	15.40	-	22.00	25.30	28.60	170
7/2.36	7.1	10.70	14.70	21.40	-	30.60	35.20	39.80	240
7/2.65	8.0	13.50	18.50	27.00	-	38.60	44.40	50.20	300
7/3.00	9.0	17.30	23.75	34.65	-	49.50	56.90	64.30	392
7/3.15	9.5	19.10	26.20	38.20	-	54.55	62.75	70.90	430
7/3.25	9.8	20.30	27.85	40.65	-	58.05	66.80	75.50	460
7/3.65	11.0	25.60	35.15	51.25	-	73.25	84.20	95.20	570
7/4.00	12.0	30.90	42.20	61.60	-	88.00	101.0	114.00	690
7/4.25	12.8	34.75	47.65	69.50	-	99.30	114.0	129.00	780
7/4.75	14.0	43.40	59.45	86.80	-	124.0	142.7	161.3	970
19/1.00	5.0	5.22	7.16	10.45	-	14.92	17.16	19.40	120
19/1.25	6.3	8.16	11.19	16.32	-	23.32	26.81	30.31	180
19/1.40	7.0	10.24	14.04	20.47	-	29.25	33.64	38.02	230
19/1.60	8.0	13.37	18.35	26.75	-	38.20	43.93	49.66	300
19/2.00	10.0	20.90	28.65	41.78	50.74	59.69	68.64	77.60	470
19/2.50	12.5	32.65	44.80	65.29	79.28	93.27	107.3	121.3	730
19/3.00	15.0	47.00	64.50	94.00	114.1	134.3	154.5	174.6	1050
19/3.55	17.8	65.80	90.27	131.6	159.9	188.0	216.3	244.5	1470
19/4.00	20.0	83.55	114.6	167.1	203.0	238.7	274.6	310.4	1870
19/4.75	23.8	117.85	161.6	235.7	286.0	336.7	387.2	437.7	2630
