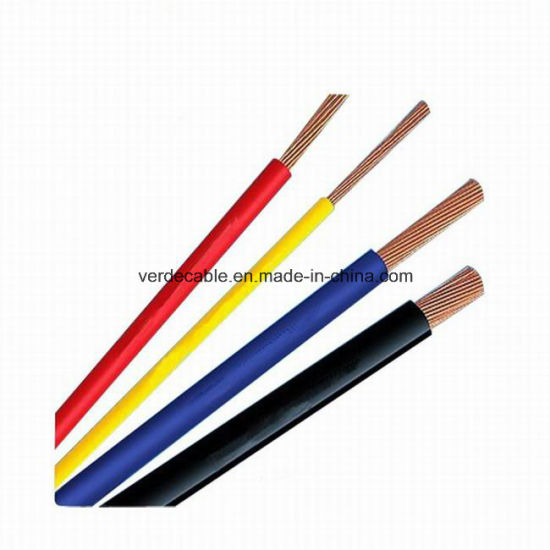

PVC Insulated Flexible Cable Electric Wire H07V-R Wire
1.Description:
Rated voltage 300/500V,450/750V Flexible cable
Conductor class: class5
Conductor material:Stranded Copper or Stranded Tinned Copper
Insulation:PVC
Sheathing:PVC
2.Specification:
Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2
More size and specification can be customized
3.Insulation Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request
4.Packing:
1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum
5,Technical Data List
1). H07V-R wire Type
| Standard:GB/T 5023-2008,IEC60227,228, Different Standard can be customized according to your requirement | |||||||||||
| Description:general single core Flexible wire | |||||||||||
| Type in National standard:60227 IEC 02(RV) 450/750V H07V-R | |||||||||||
| Size (mm2) | Conductor class | Conductor Structure Nos /dia (mm) | Nominal Thickness of Insulation mm | Outer insulation diameter mm | D.C Resistance of conductor Ω/km | Calculated Weight kg/km | |||||
| 1.5 | 5 | 30/0.25 | 0.7 | 3.1 | 13.3 | 20.9 | |||||
| 2.5 | 5 | 49/0.25 | 0.8 | 3.7 | 7.98 | 32.5 | |||||
| 4 | 5 | 56/0.30 | 0.8 | 4.3 | 4.95 | 48.6 | |||||
| 6 | 5 | 84/0.30 | 0.8 | 5.2 | 3.30 | 70.6 | |||||
| 10 | 5 | 77/0.40 | 1.0 | 6.7 | 1.91 | 122.9 | |||||
| 16 | 5 | 119/0.40 | 1.0 | 7.8 | 1.21 | 176.3 | |||||
| 25 | 5 | 189/0.40 | 1.2 | 9.7 | 0.780 | 272.0 | |||||
| 35 | 5 | 264/0.40 | 1.2 | 11.3 | 0.554 | 374.5 | |||||
| 50 | 5 | 378/0.40 | 1.4 | 13.1 | 0.386 | 534.5 | |||||
| 70 | 5 | 336/0.50 | 1.4 | 15.6 | 0.272 | 739.2 | |||||
| 95 | 5 | 456/0.50 | 1.6 | 17.6 | 0.206 | 969.9 | |||||
| 120 | 5 | 576/0.50 | 1.6 | 19.3 | 0.161 | 1186.2 | |||||
| 150 | 5 | 720/0.50 | 1.8 | 22.8 | 0.129 | 1508.5 | |||||
| 185 | 5 | 888/0.50 | 2.0 | 24.3 | 0.106 | 1862.5 | |||||
| 240 | 5 | 1184/0.50 | 2.2 | 26.6 | 0.0801 | 2372.9 | |||||
| Standard:GB/T 5023-2008;GB/T 19666-2005,IEC60227,228 | |||||||||||
| Description:PVC insulated Fire Resistant Flexible Wire Cable | |||||||||||
| Type:NH-RV 450/750V H07V-R | |||||||||||
| Size | Conductor class | Conductor Structure Nos /dia (mm) | Nominal Thickness of Insulation mm | Outer insulation diameter mm | D.C Resistance of conductor Ω/km | Calculated Weight kg/km | |||||
| 1.5 | 5 | 30/0.25 | 0.7 | 3.56 | 13.3 | 25.6 | |||||
| 2.5 | 5 | 49/0.25 | 0.8 | 4.2 | 7.98 | 38.2 | |||||
| 4 | 5 | 56/0.30 | 0.8 | 4.77 | 4.95 | 55.0 | |||||
| 6 | 5 | 84/0.30 | 0.8 | 5.66 | 3.30 | 77.8 | |||||
| 10 | 5 | 77/0.40 | 1.0 | 7.16 | 1.91 | 131.8 | |||||
| 16 | 5 | 119/0.40 | 1.0 | 8.26 | 1.21 | 186.5 | |||||
| 25 | 5 | 189/0.40 | 1.2 | 10.16 | 0.780 | 283.8 | |||||
| 35 | 5 | 264/0.40 | 1.2 | 11.76 | 0.554 | 388.3 | |||||
| 50 | 5 | 378/0.40 | 1.4 | 13.56 | 0.386 | 549.8 | |||||
| 70 | 5 | 336/0.50 | 1.4 | 16.1 | 0.272 | 756.5 | |||||
| 95 | 5 | 456/0.50 | 1.6 | 18.1 | 0.206 | 988.1 | |||||
| 120 | 5 | 576/0.50 | 1.6 | 19.8 | 0.161 | 1205.7 | |||||
| 150 | 5 | 720/0.50 | 1.8 | 23.3 | 0.129 | 1529.9 | |||||
| 185 | 5 | 888/0.50 | 2.0 | 24.8 | 0.106 | 1883.5 | |||||
| 240 | 5 | 1184/0.50 | 2.2 | 27.1 | 0.0801 | 2394.5 | |||||

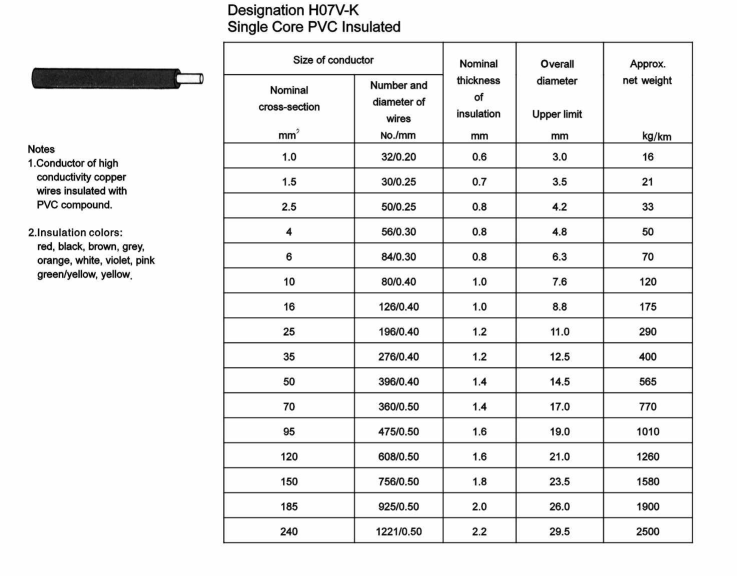

2).Single core Flexible cable (H07V-K Cable)

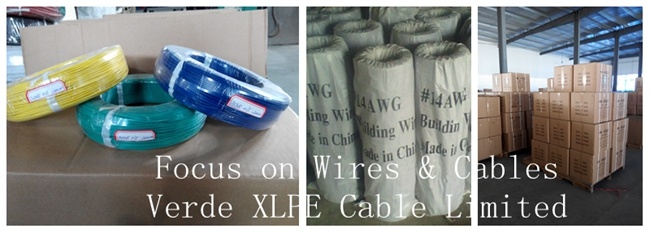

Packing
