High Temperature Wire
Wellde®
Support
Support
When do you need this cable?
When the ambient temperature stays above 180℃ for a long time, such as areas near heating tubes, furnace bodies, and engine compartments; When transmitting weak signals where inverters, motors and RF sources cause on-site interference.
If you only need high temperature resistance, bare PTFE wire is sufficient. If you only need anti-interference performance, ordinary PVC shielded cable will work.
If you require both, this is exactly the cable you need.
Product Information Sheet
Parameter | Description |
|---|---|

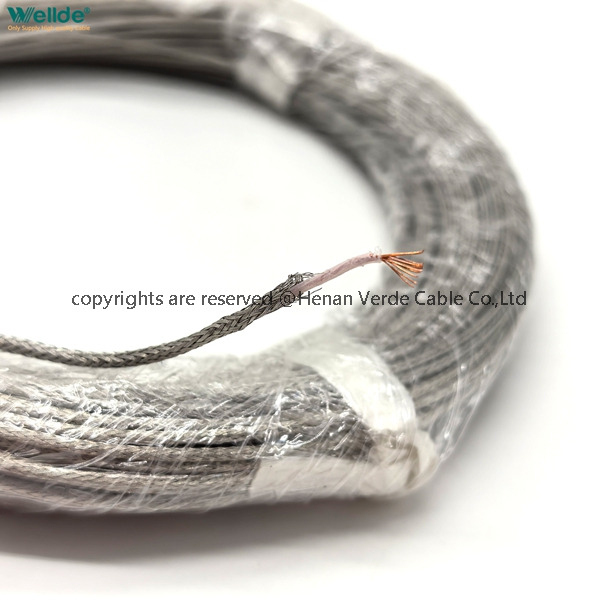

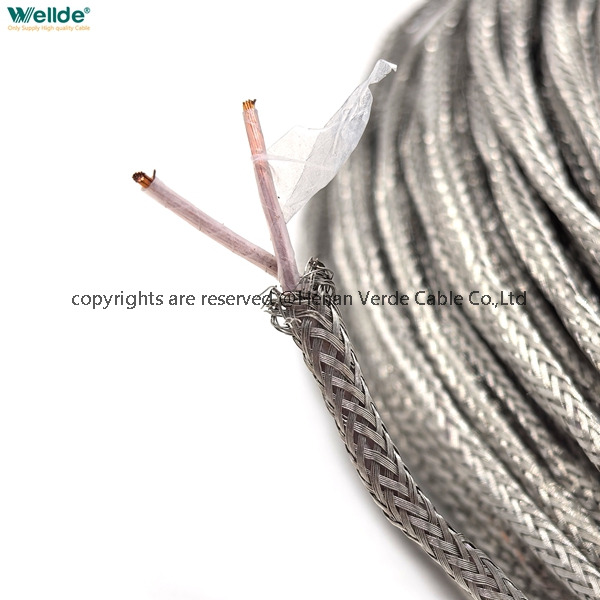

Construction | Copper Conductor + PTFE Tape Wrapped Insulation + Tinned Copper Braid Shield |
Conductor Options | Bare Copper / Tinned Copper / Silver Plated Copper |
Temperature Range | -65℃ ~ +260℃ |
Rated Voltage | 300V / 600V |
Wire Gauge | 24AWG ~ 10AWG, Customizable |
Shielding | Tinned Copper Braid |
Certifications | UL, RoHS, REACH |
Deliver
Reply to inquiries within 12 hours on weekdays.
The regular line gauge has semi-finished product inventory, and finished products are available within 5-7 days;
Customized structure takes 15-20 days.
FAQ
Will the tin in the braided layer melt at 260 ℃?
A1: The tin plating layer will slowly change color at 260 ℃ for a long time, but it does not affect the shielding function.
Q2: Can we do multi-core and total shielding?
A2:2~12 core PTFE wrapped and twisted, with a total shielding of 100% weaving, also divided into a double-layer structure of shielding and total shielding. The drawings can be sent for evaluation.
Q3: What are the standards for voltage withstand testing? The factory conducts a full inspection of 2.5kV/1min AC withstand voltage, and MIL standard products follow the corresponding specifications.
Q4: How many free samples can be provided?
A4: Regular specifications of 1-2 meters are free, only shipping fees are charged
