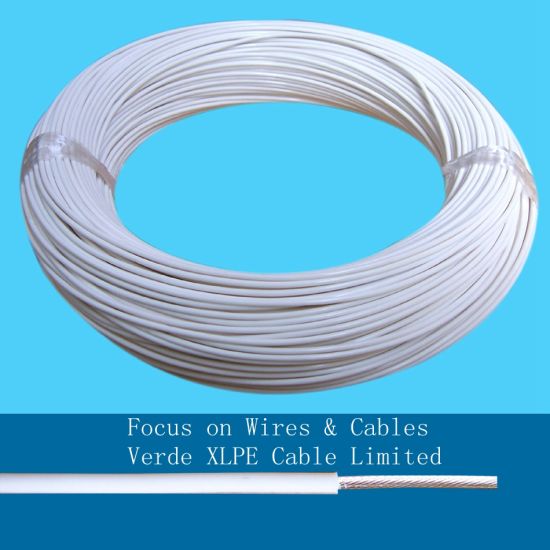

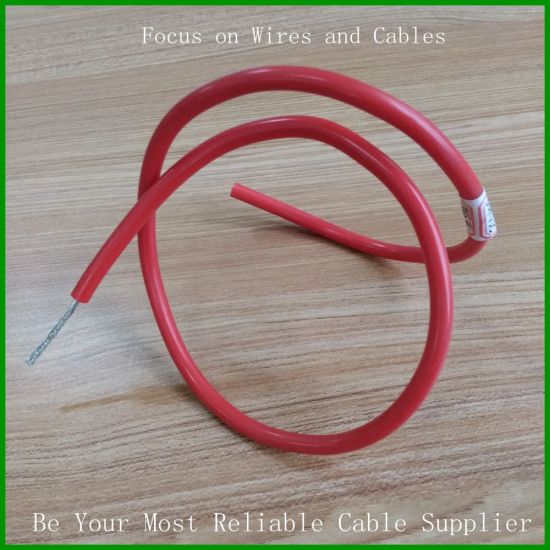

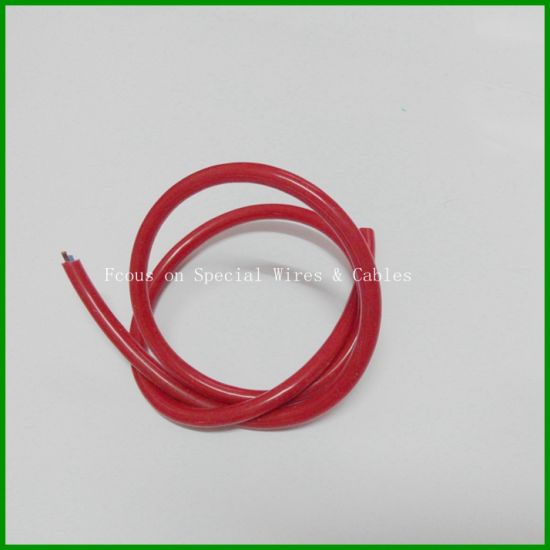

High Temperature Resistance Wire Flexible HV Silicone Rubber Wire
Different Voltage Silicone rubber wire cable can be Customized by your requirement.
1.Description:
Voltage:10KV 20KV 30KV 50KV HV Silicone wire
Temperature Ratings: -100ºC~+250ºC
2.Cable Structure:
Conductor: Annealed Copper,Tinned Copper, Silver plated Copper wire
Insulation: Silicone Rubber
If need, as per customer's request,Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber
3.Standard:
1).UL ,IEC60502 BS ASTM
2).Different specification and standard can be customized.
4. Main Technical Data
List 1
| Conductor | Insulation | |||||||||||
| 3KV | 6KV | 10KV | 20KV | 50KV | ||||||||
| AWG | Conductor construction NO. *φ mm | Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm |
| 26 | 7*0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 2.5 | 5.49 |
| 24 | 7*0.20 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 2.5 | 5.6 |
| 22 | 7*0.26 | 0.78 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.78 | 1.3 | 3.36 | 2.5 | 5.76 |
| 20 | 7*0.30 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 2.5 | 5.91 |
| 18 | 7*0.40 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 2.5 | 6.17 |
| 16 | 7*0.50 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 2.5 | 6.5 |
| 14 | 43*0.25 | 1.83 | 0.6 | 3.03 | 0.8 | 3.43 | 1.2 | 4.23 | 1.5 | 4.83 | 3 | 7.83 |
List 2 For HV silicone rubber cable wire Technical data specification
| Nominal Section (mm2) | Conductor Structure No./dia(mm) | Nominal thick of insulation (mm) | Core number | D.C Resistance of conductor at 20 ºC (Ω/km) | Packing length (m) |
| 4 | 56 × 0.30 | 1.0 | 2-19 | 5.09 | 100 |
| 6 | 84 × 0.30 | 1.0 | 2-10 | 3.39 | 100 |
| 10 | 84 × 0.40 | 1.2 | 1.82 | 100 | |
| 16 | 126 × 0.40 | 1.2 | 2-5 | 1.22 | 100 |
| 25 | 196 × 0.40 | 1.4 | 0.795 | 100 | |
| 35 | 276 × 0.40 | 1.4 | 0.565 | 100 | |
| 50 | 396 × 0.40 | 1.6 | 0.393 | 100 | |
| 70 | 360 × 0.50 | 1.6 | 0.227 | 100 | |
| 95 | 475 × 0.50 | 1.8 | 0.210 | 100 | |
| 120 | 608 × 0.50 | 1.8 | 0.164 | 100 | |
| 150 | 756 × 0.50 | 2.0 | 0.132 | 100 | |
| 185 | 925 × 0.50 | 2.2 | 0.108 | 100 | |
| 240 | 1221 × 0.50 | 2.4 | 0.0817 | 100 |
5.Type Description &Specification Range we produce
| Type & Description we can supply | Core Number | Nominal cross section area (mm2) |

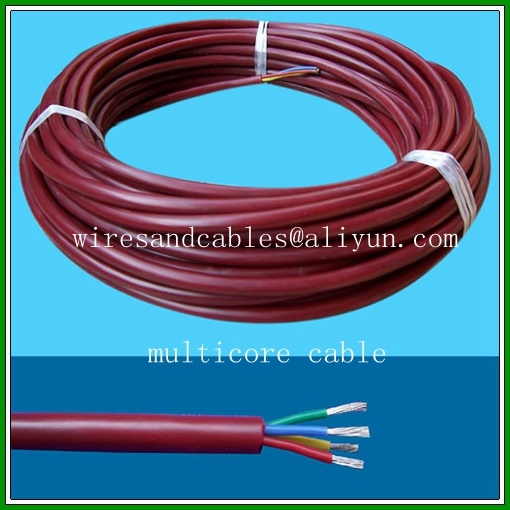

| Tinned copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 0.75~to500 for single core 0.75 ~240 for multi-core |
| Copper conductor Silicone Rubber Insulation and sheathed cable with Steel Tape Armoring | 3, 4, 5, 3+1,3+2, 4+1 | 1.5~240 |
| Flame Retardant Flexible Type Copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
| Flame Retardant Copper conductor Silicone Rubber Insulation and sheathed rubber cable With Copper wire Braided Shielding Type | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
| Copper conductor Silicone Rubber Insulation and sheathed rubber cable For Moving usage | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |

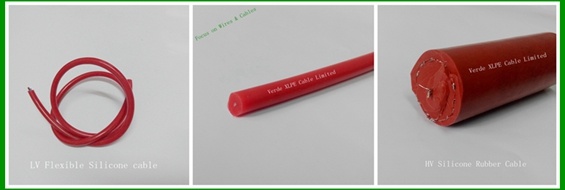

Silicone Cable with Different Voltage from 300V 500V 1KV 10KV 20KV ~ 50KV

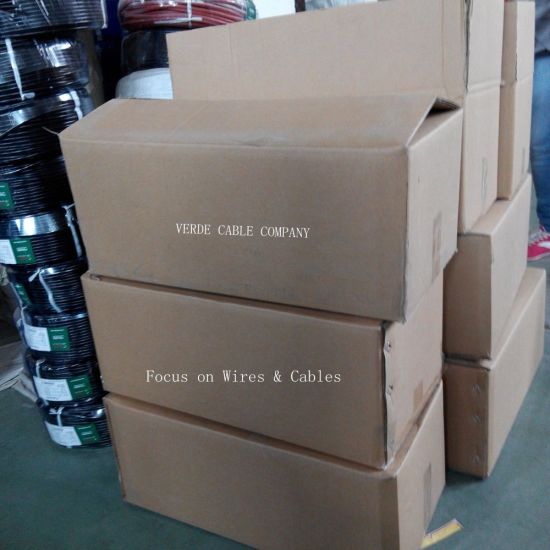

6.Our workshop
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Special Wires and Cables
Be Your Most Reliable Cable Supplier
