Heat Temperature Cable
Wellde
YES
Model, color, size, length
Specification
Item | Details |

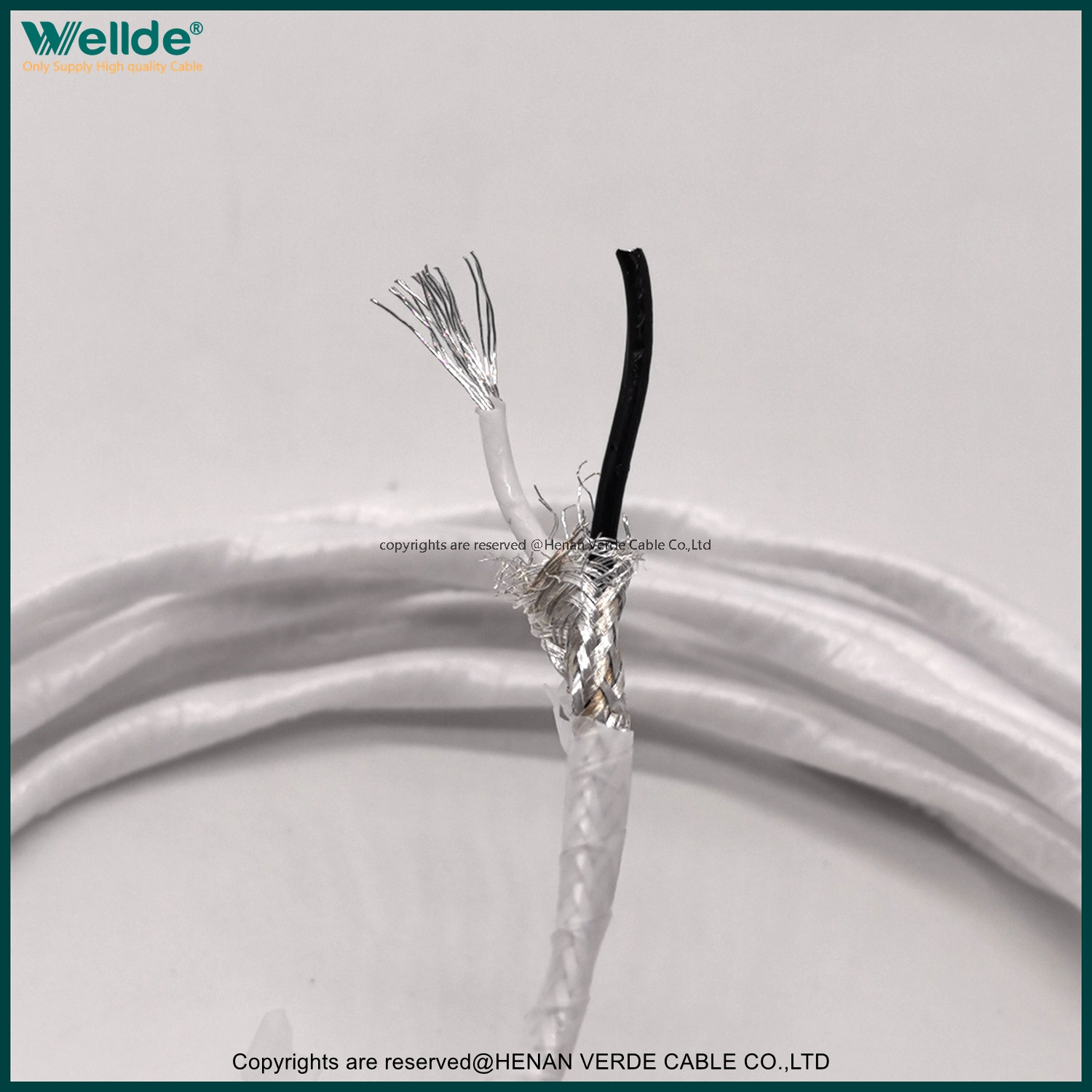

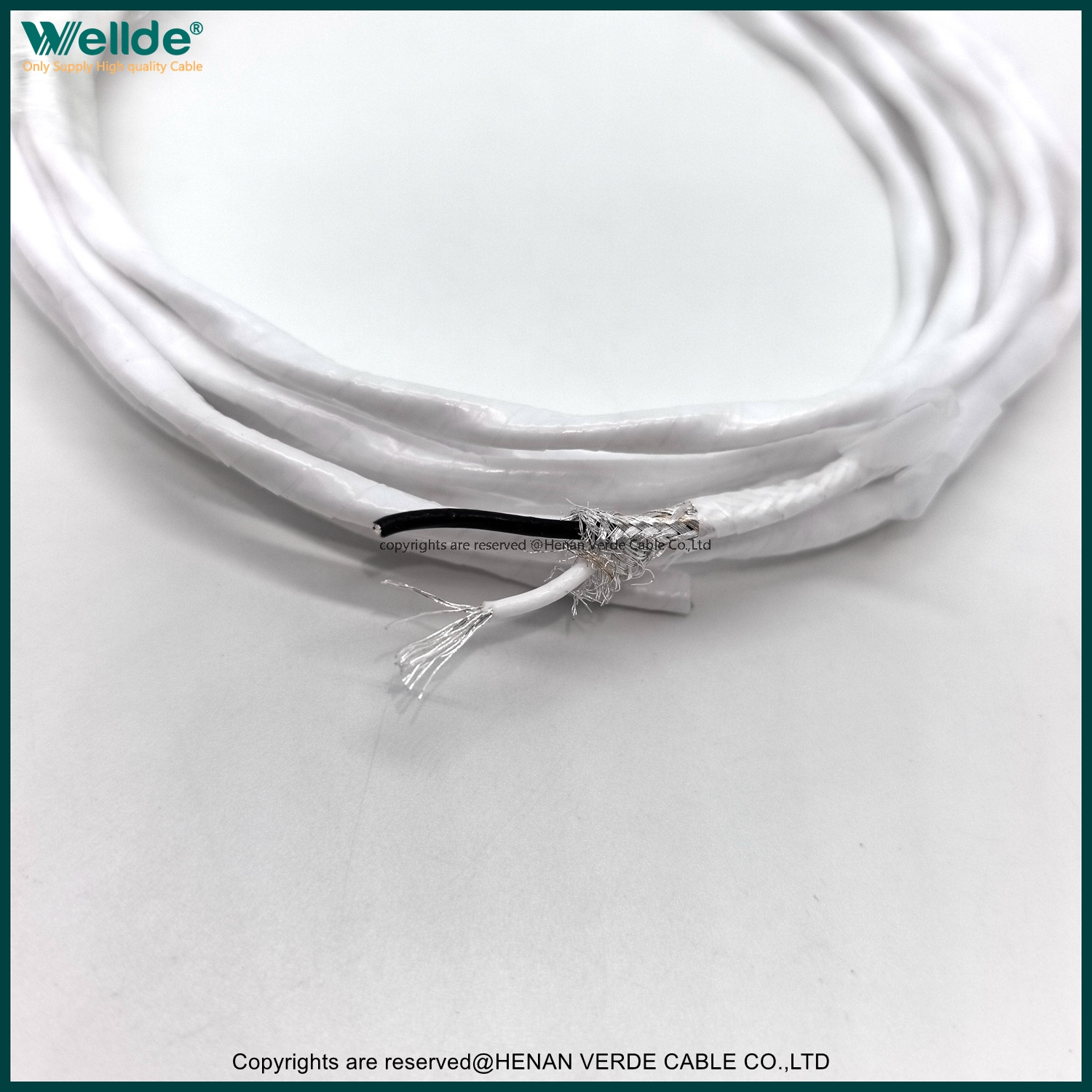

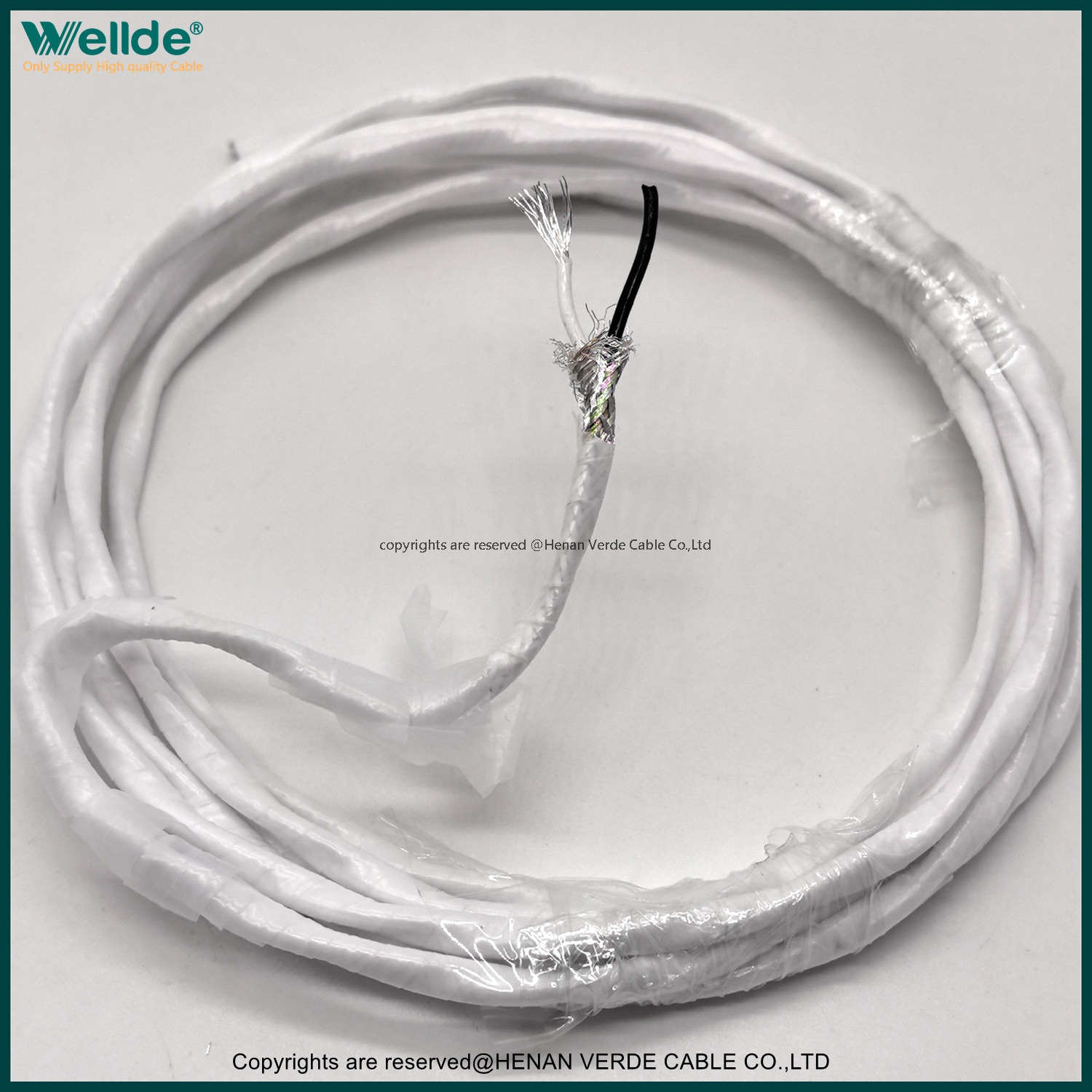

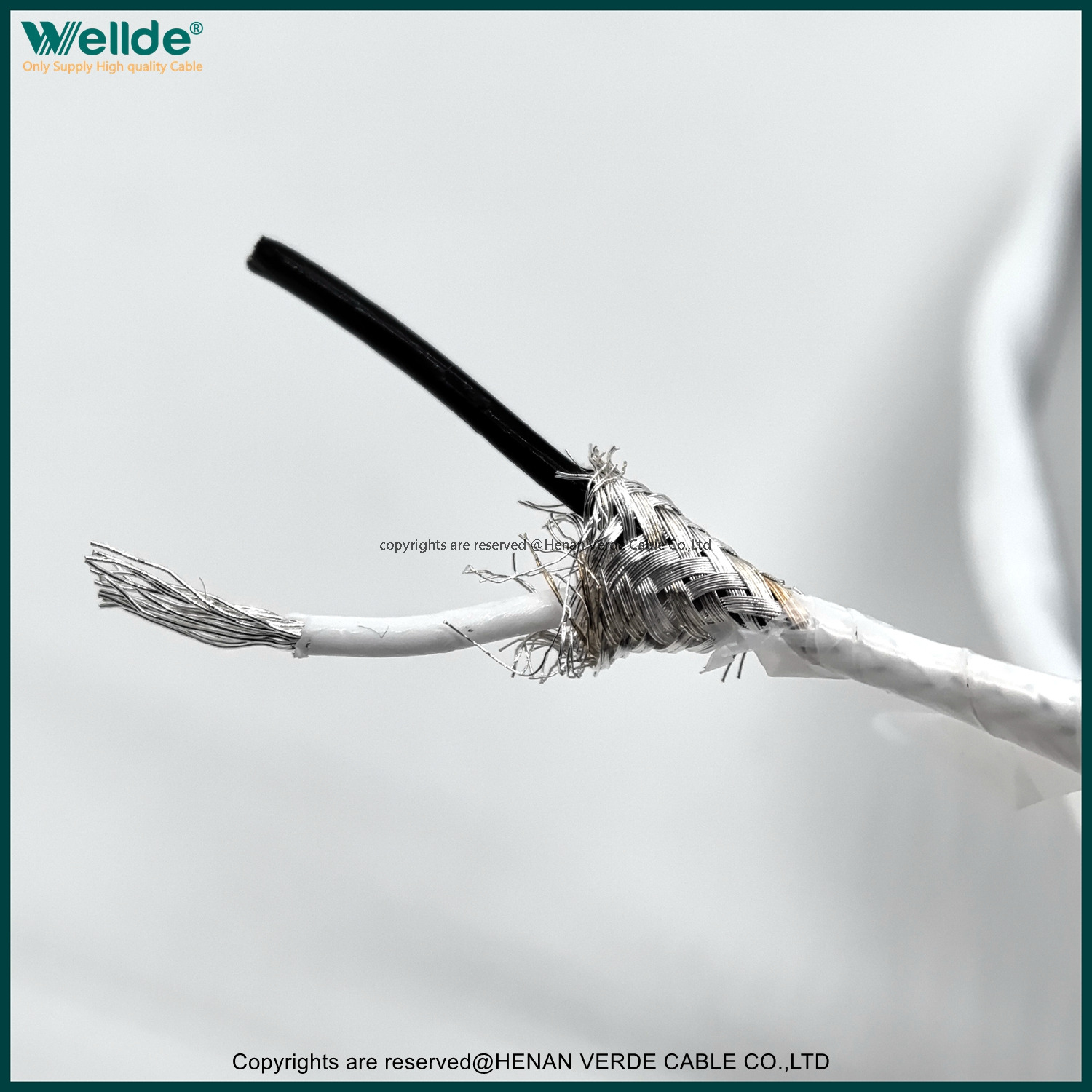

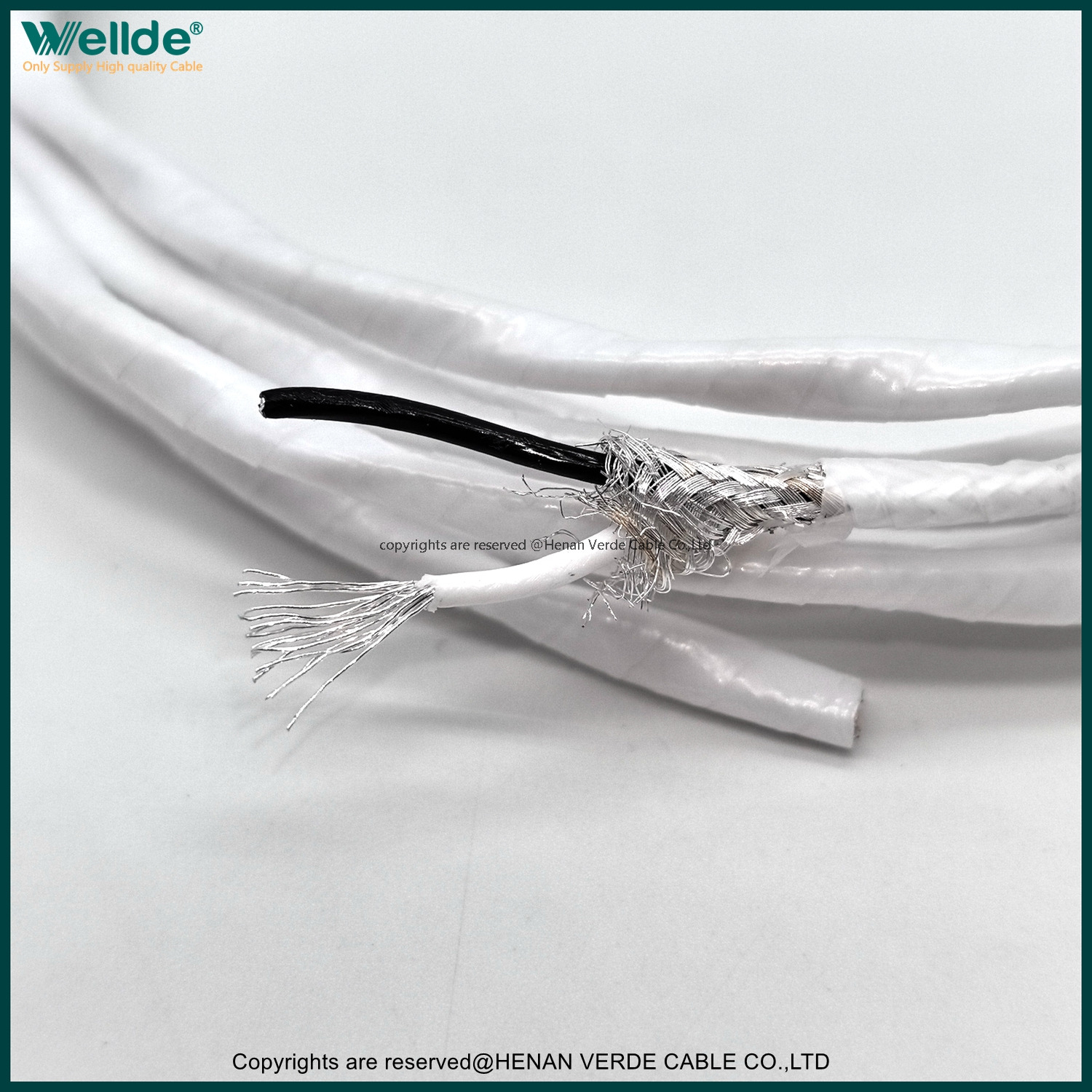

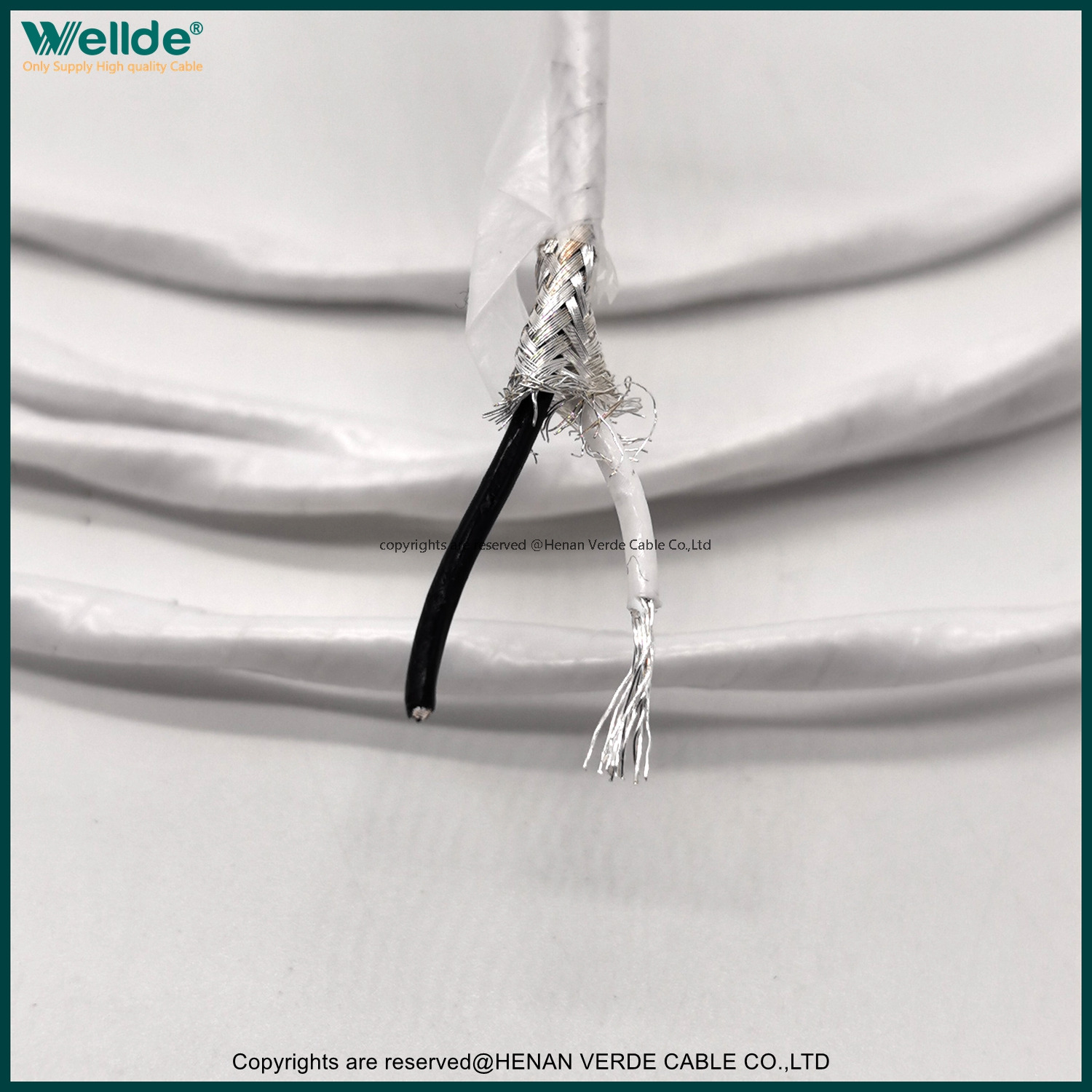

Product | 2 Core PTFE Silver-Plated Copper High-Temperature Shielded Cable |
Conductor | Silver-plated copper |
Insulation | PTFE |
Shield | Tinned copper braid |
Jacket | PTFE |
Rated Voltage | 300/500V (600V/1000V optional) |
Operating Temperature | -80℃ ~ +260℃ |
Colors | White, black, red, blue, etc. (customizable) |
Certifications | Third-party test reports available upon request |
Packing & Delivery
Generally, delivery takes 7-14 days Customization may take 10-20 days

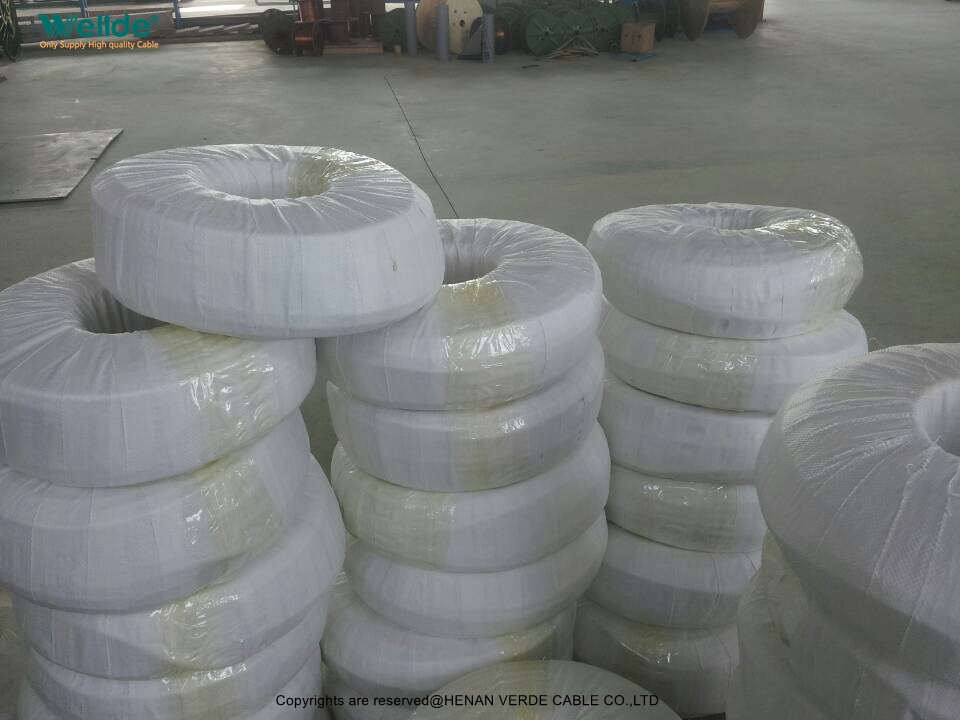

Goods are normally packed in coils, with carton, foam plus carton or pallet packaging available, and customized packing is acceptable.
Technical reference
Conductor | Insulation | Electrical | Packing | |||
AWG | Conductor | Diameter | Insulation |
| Max. Conductor | M/coil |
16 | 19×0.30 | 1.50 | 0.26 | 2.02 | 14.6 | 305 |
17 | 19×0.26 | 1.30 | 0.26 | 1.82 | 18.3 | 305 |
18 | 19×0.23 | 1.15 | 0.26 | 1.67 | 23.2 | 305 |
20 | 19×0.18 | 0.9 | 0.26 | 1.42 | 36.7 | 305 |
1×0.80 | 0.8 | 0.26 | 1.32 | 35.2 | 305 | |
22 | 19×0.16 | 0.8 | 0.26 | 1.32 | 59.4 | 610 |
1×0.65 | 0.65 | 0.26 | 1.17 | 56.4 | 610 | |
24 | 7×0.20 | 0.60 | 0.26 | 1.12 | 94.2 | 610 |
1×0.50 | 0.50 | 0.26 | 1.02 | 89.3 | 610 | |
26 | 7×0.16 | 0.48 | 0.26 | 1.00 | 150 | 610 |
1×0.40 | 0.40 | 0.26 | 0.92 | 143 | 610 | |
28 | 7×0.12 | 0.36 | 0.26 | 0.88 | 239 | 610 |
1×0.32 | 0.32 | 0.26 | 0.84 | 227 | 610 | |
30 | 7×0.10 | 0.30 | 0.26 | 0.82 | 381 | 610 |
1×0.254 | 0.254 | 0.26 | 0.774 | 361 | 610 | |
32 | 7×0.08 | 0.24 | 0.26 | 0.76 | 664.8 | 610 |
1×0.20 | 0.20 | 0.26 | 0.72 | 588.3 | 610 | |
