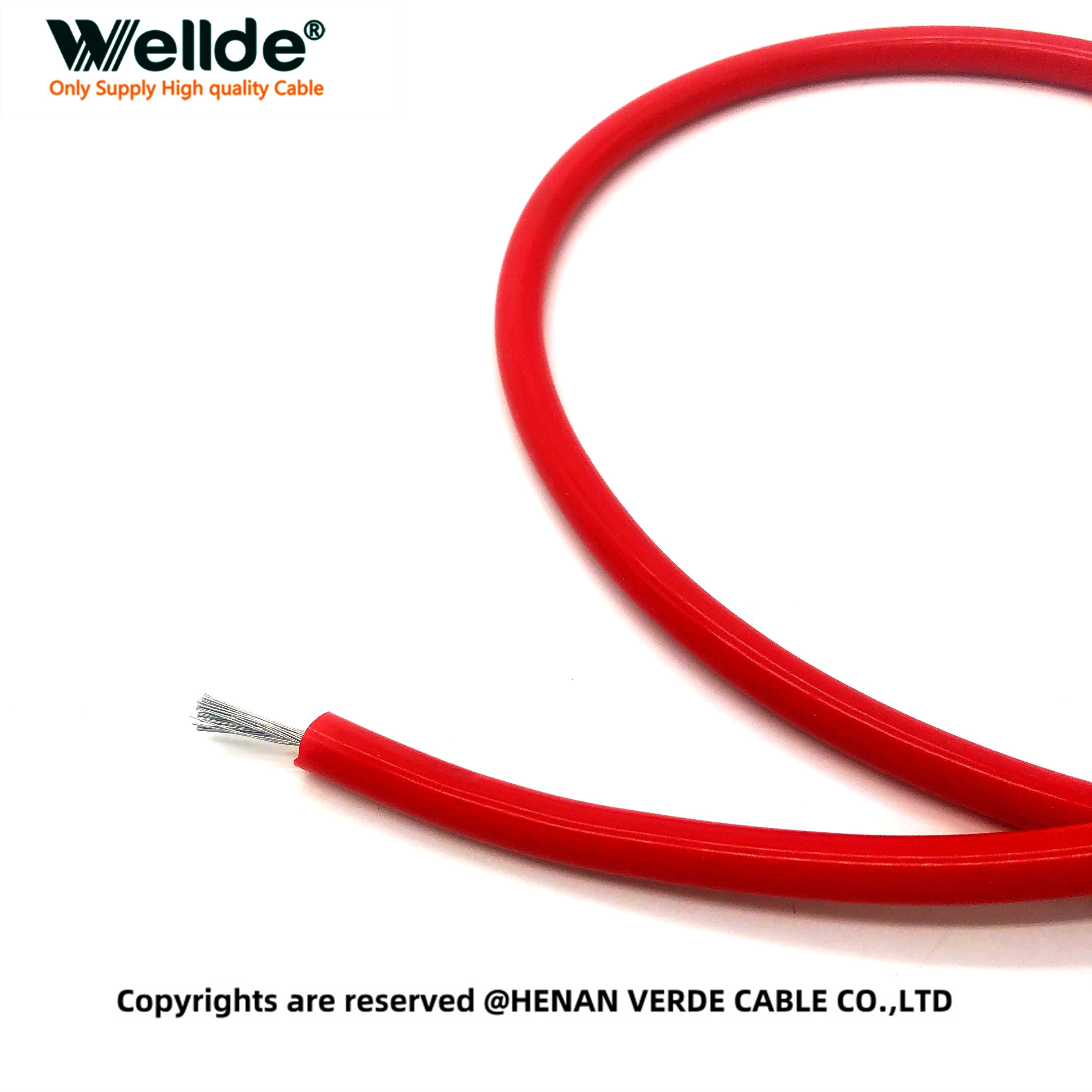

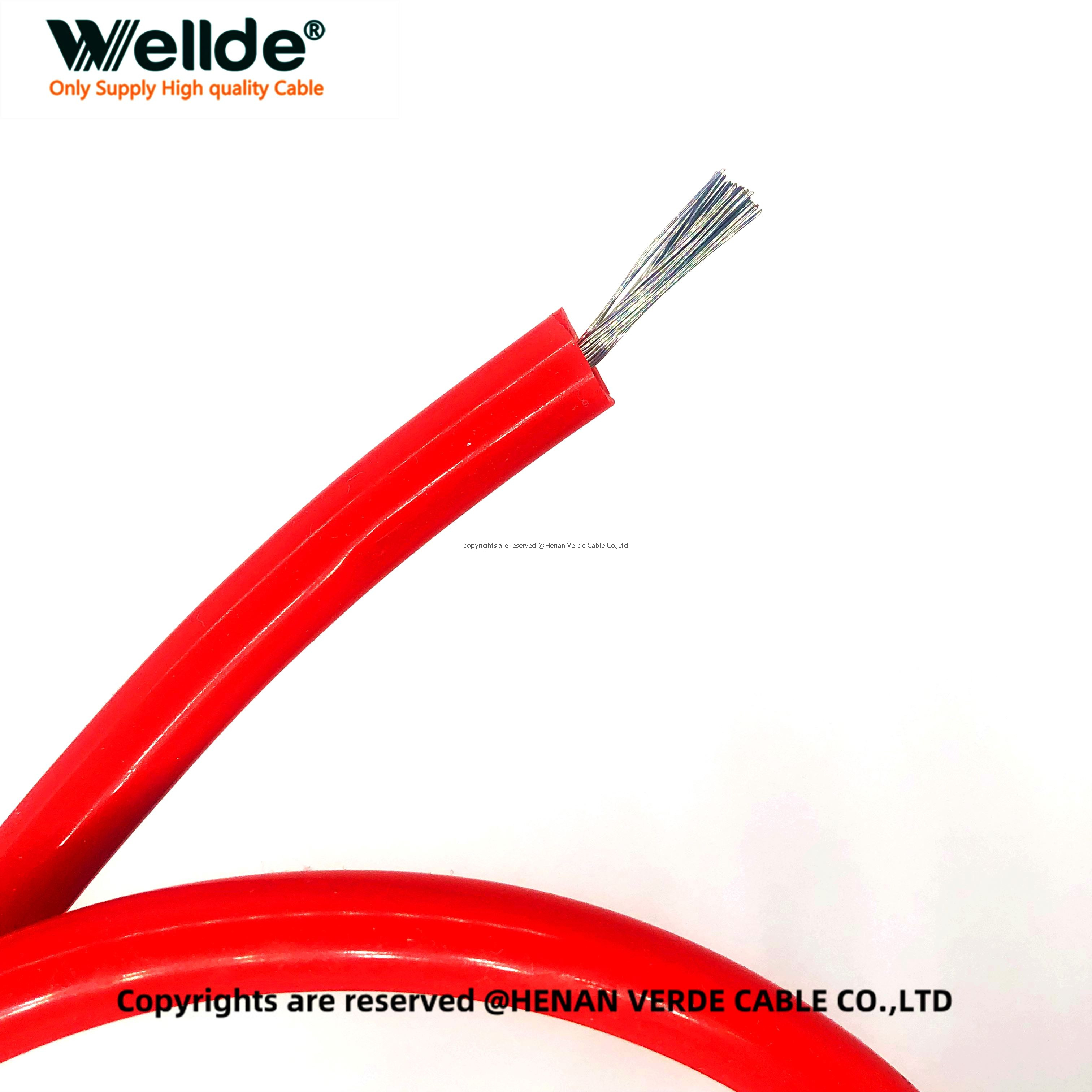

This high temperature flexible silicone cable offers reliable operation in extreme environments.
The high temperature silicone wire boasts exceptional heat and UV resistance, maintaining consistent flexibility and insulation integrity even after continuous exposure to temperatures up to 200°C.
Even after prolonged exposure to harsh outdoor environments and the harsh effects of UV radiation, the silicone cable's jacket and inner conductor remain in excellent condition.
Silicone cable is halogen free, ensuring that in the event of a fire, the cable releases only minimal toxic gases and maintains essential functionality.
1: Reliable operation in temperatures up to 200°C.
2: Excellent UV and weather resistance, oil resistance, and chemical resistance, making it suitable for indoor and outdoor high-temperature applications.
3: Remains flexible and easy to install even after years of use.
4: Halogen-free and flame-retardant: Provides safety and environmental protection in fire situations.
Glass manufacturing
Metallurgy and steel industries
Baking and heating equipment
Lighting systems
Solar and wind energy systems
Electric vehicle charging equipment
UL3135
CE
RoHS
| Item | Specification |
|---|---|

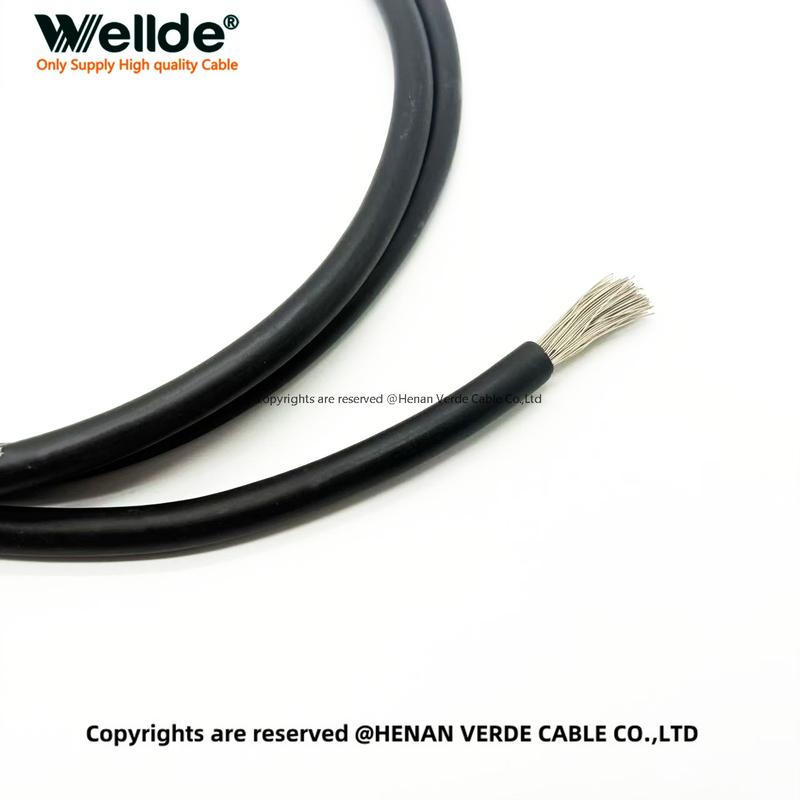

| Conductor Material | Tinned Copper |
| Number of Strands | 178 strands |
| Single Wire Diameter | 0.40 / 0.42 / 0.43 mm |
| Insulation Material | Silicone Rubber |
| Insulation Thickness | 2.23 mm |
| Overall Cable Diameter | 11.41 mm |
| Color | Black |
| Structure Type | Single Core |
| Nominal Cross Section | 25 mm² |
| Features | High flexibility, heat resistance, UV resistance, aging resistance, halogen-free |
| Typical Applications | Welding systems, battery connections, robotic cables, heating devices, lighting systems |
