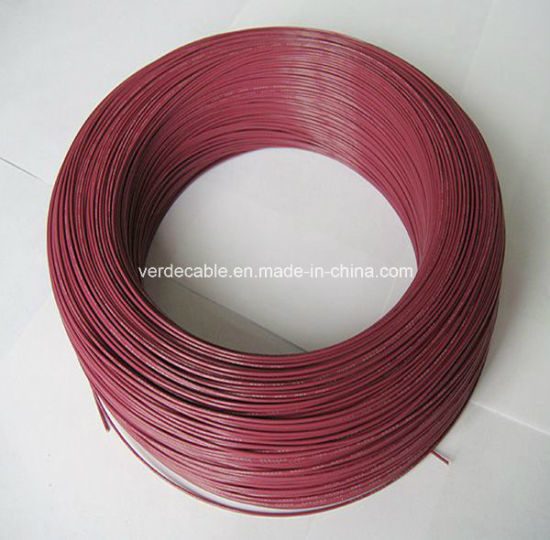

High temperature Resistant Automobiles Cable Wire Harness
1.Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage
2.Technical Data
Rated voltage:600V and below
Temperature range:-65~+200ºC
Test of power-frequency withstand voltage:3000V
3. Structure:
Conductor: tinned copper or bare copper wire
Insulation:Thin PVC, XLPE , Irradiation XLPE, FEP Teflon High temerature Resistant material
4.Color:red yellow blue green white black orange purple brown
different color according to the customer's request
5. One Parts of Specification for Automotive wire Auto cable
| Conductor | Insulation | |||
| Cross Section (mm2) | Structure | Diameter (mm) | Thickness | Overall. Dia. (mm) |
| (No./mm) | (mm) | |||
| 0.35 | 12/0.20 | 0.8 | 0.25 | 1.3 |
| 0.5 | 16/0.20 | 0.92 | 0.29 | 1.5 |
| 0.75 | 24/0.20 | 1.13 | 0.34 | 1.8 |
| 1 | 32/0.20 | 1.31 | 0.35 | 2 |
| 1.5 | 30/0.25 | 1.58 | 0.36 | 2.3 |
| 2.5 | 50/0.25 | 2.04 | 0.43 | 2.9 |
| 4 | 56/0.30 | 2.59 | 0.51 | 3.6 |
| 6 | 84/0.30 | 3.17 | 0.52 | 4.2 |
We list one parts of automotive wire we produce,if you want to know more information about automotive wire,pls send me email or telephone us:0086-13938400126
| Conductor Nominal Section(mm2) | Conductor Construction (No/mm) | Average. Insulation Thickness (mm) | Calculated. Outer Diameter (mm) | D.C. conductor resistance at 20ºC(Ω/km) | |
| Tinned copper | Silver coated copper | ||||
| 0.035 | 7/0.08 | 0.20 | 0.64 | 562 | 550 |
| 0.05 | 10/0.08 | 0.30 | 0.90 | 383 | 370 |
| 0.06 | 7/0.10 | 0.30 | 0.90 | 348 | 339 |
| 0.08 | 7/0.12 | 0.30 | 0.96 | 286 | 280 |
| 0.10 | 7/0.14 | 0.30 | 1.02 | 157 | 150 |
| 0.12 | 7/0.15 30/0.07 | 0.30 | 1.05 | 152 | 145 |
| 0.14 | 7/0.16 19/0.10 | 0.30 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.30 | 1.10 | 111 | 105 |
| 0.20 | 7/0.02 19/0.12 | 0.30 | 1.20 | 87 | 82 |
| 0.35 | 19/0.16 | 0.30 | 1.40 | 57 | 54 |
| 0.50 | 19/0.18 | 0.30 | 1.50 | 40 | 37.5 |
| 0.80 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1.00 | 19/0.26 | 0.35 | 2.00 | 21 | 20 |
| 1.20 | 19/0.28 | 0.45 | 2.30 | 19 | 18 |
| 1.50 | 19/0.32 | 0.45 | 2.50 | 13 | 12 |
| 2.00 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.50 | 37/0.30 | 0.55 | 3.20 | 8 | 7 |
| 3.00 | 37/0.32 | 0.68 | 3.60 | 6.8 | 6.4 |
