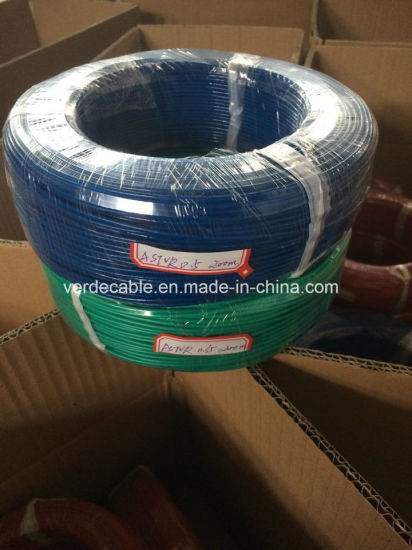

Silk coated Electrical Wiring ASTVR Electrical Wire
Focus on Wires &Cables field
More than 15 years produceing Experience.
Different Specifications can be Customized as per your requirement.
Application:
ASTVR and ASTVRP is mainly used for electric appliance equipment, interconnector of equipment and instrument. It has the good character of Anti-interference, oil resistance,
anti-corrosion, anti-aging and so on.
Structure:
Copper, tinned copper Conductor with Silk and PVC insulation, or with braided Screen
Color:
Black, white, red, green, blue, yellow, orange, purple, brown, and so on.
Voltage:
300/500V and below
Working temperature:
-20ºC-75ºC Max.105ºC
| Area | Structure | Max.OD (mm) | Conductor resistance at 20ºC | Insulation resistance at 70ºC | Calculated weight Kg/km | ||
| mm2 | Stranding Nos/dia. per wire | ASTVR | ASTVRP | ≤Ω/km | ≥MΩ·m | ASTVR | ASTVRP |
| 0.06 | 7/0.1 | 1.5 | 1.9 | 384 | 17 | 2.1 | 6.0 |
| 0.1 | 12/0.1 | 1.6 | 2.0 | 214 | 17 | 2.8 | 7.2 |
| 0.12 | 7/0.15 | 1.8 | 2.2 | 163 | 16 | 3.1 | 7.5 |
| 0.14 | 7/0.16 | 1.9 | 2.3 | 143 | 16 | 3.4 | 7.9 |
| 0.2 | 7/0.2 | 2.0 | 2.4 | 95.0 | 14 | 4.4 | 9.3 |
| 0.3 | 16/0.15 | 2.1 | 2.5 | 71.2 | 14 | 5.4 | 10.7 |
| 0.35 | 20/0.15 | 2.1 | 2.5 | 57.0 | 12 | 6.2 | 11.6 |
| 0.4 | 23/0.15 | 2.3 | 2.7 | 49.6 | 12 | 7.2 | 13.0 |
| 0.5 | 16/0.2 | 2.5 | 2.9 | 40.1 | 12 | 9.3 | 15.8 |
| 0.75 | 24/0.2 | 2.7 | 3.1 | 26.7 | 10 | 12.7 | 20.0 |
| 1.0 | 32/0.2 | 2.9 | 3.4 | 20.0 | 10 | 17.0 | 25.4 |
| 1.5 | 30/0.25 | 3.2 | 3.9 | 13.7 | 9 | 23.1 | 37.3 |
| 2.0 | 49/0.23 | 3.5 | 4.1 | 10 | 9 | 27 | 41 |
| 2.5 | 49/0.25 | 3.8 | 4.4 | 8.21 | 8 | 34 | 50 |
