Product Information Sheet
Item | Specification |
|---|---|

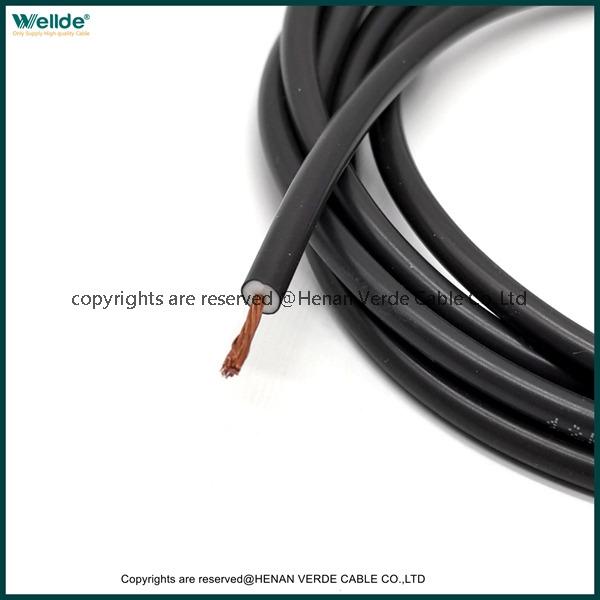

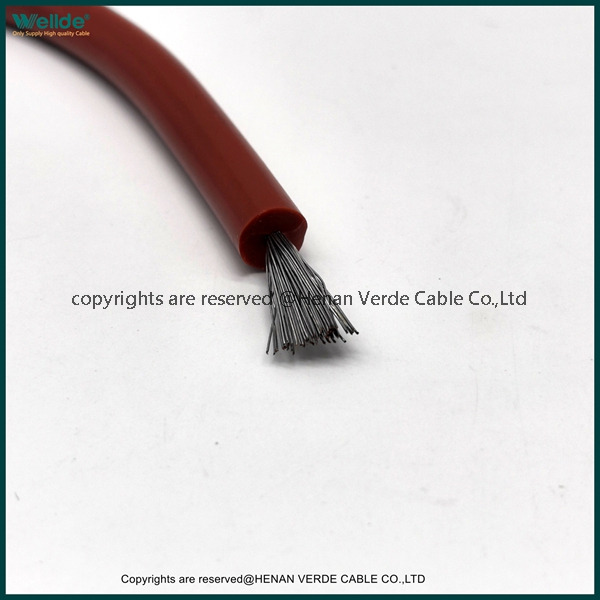

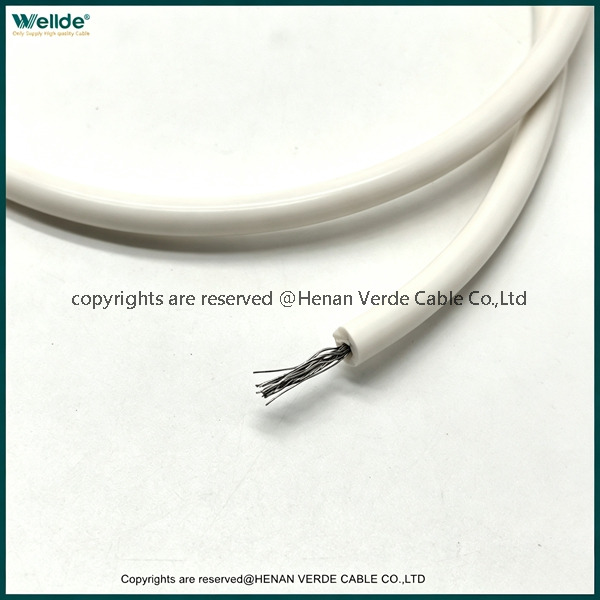

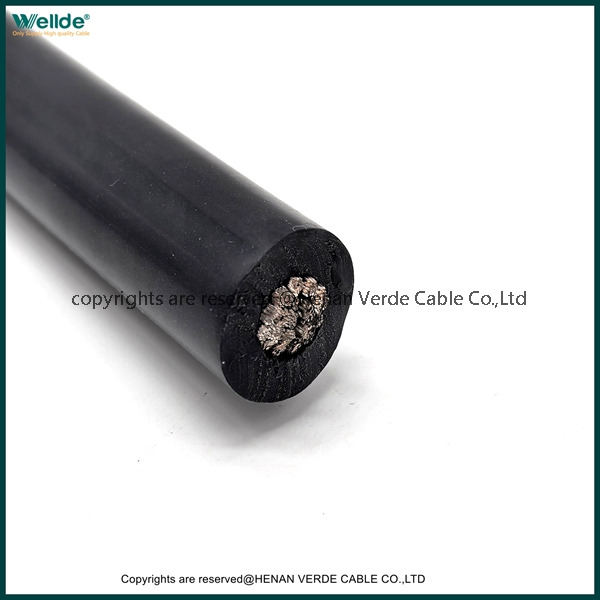

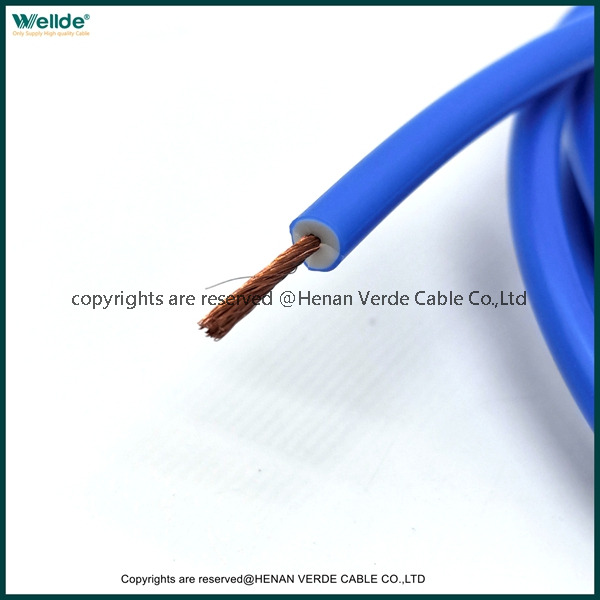

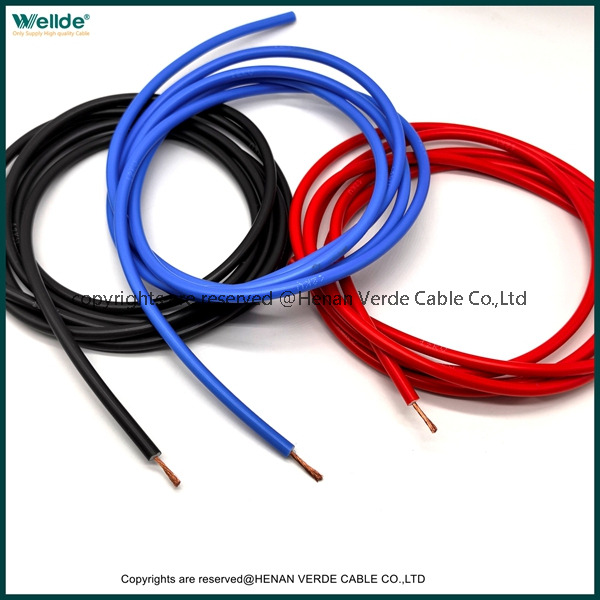

Product | High Voltage Silicone Rubber Insulated Wire |
Conductor | Oxygen-free copper, stranded multi-wire |
Insulation | Silicone rubber, wall thickness 1.0mm~3.5mm, designed according to voltage rating |
Sheath | Fiberglass braided, optional |
Withstand Voltage Rating | 3,000V / 6,000V |
Temperature Range | -60℃ ~ +200℃ |
Wire Gauge Range | AWG26 ~ AWG4/0 (Approx. 0.13mm² ~ 95mm²) |
Environmental Compliance | RoHS & REACH Compliant |
Application
Microwave/oven high voltage connection, medical equipment high voltage generator, neon/LED high voltage power supply, new energy battery pack high voltage wiring harness, unmanned electromechanical adjustment connection, car ignition system, robot, welding machine, electrostatic spraying equipment, etc
Delivery time and logistics
Samples will be sent out within 48 hours;
Delivery within 7 days for distances below 1000 meters;
Complete container load for 20-30 days. We cooperate with DHL, FEDEX, Maersk, and COSCO Shipping to support air and sea freight services, and export packaging meets standards.
