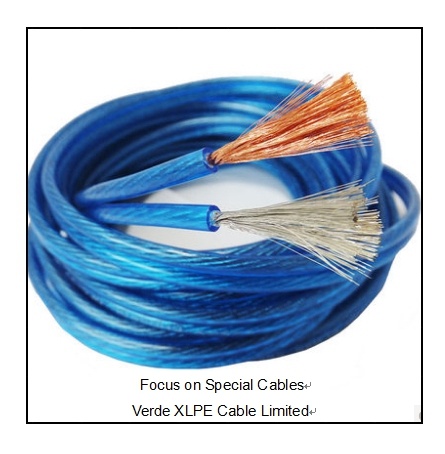

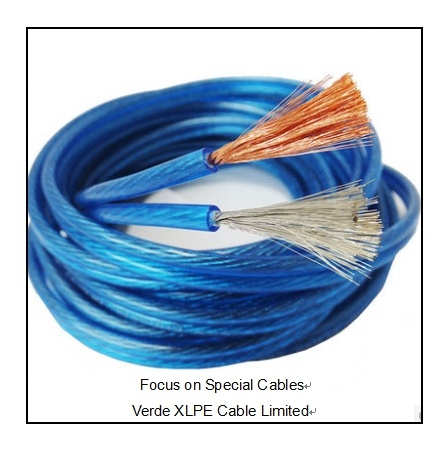

Multi Strand Audio Cable Flexible Speaker Cable
1.Hot sale to Australia,Southeast Asia,UK,USA
2.Different specification and size can be customized
3.Description of Speaker cable
Rated voltage 300/500V,450/750V
Conductor class: class5
Conductor material: Copper or Tinned Copper or CCS,CCA,Flexible type
Insulation: PVC or Flame retardant and Fire proof PVC
4.Color:
Transparent,Red,Black, Green,Blue,Yellow, Or customize as per the customer's request

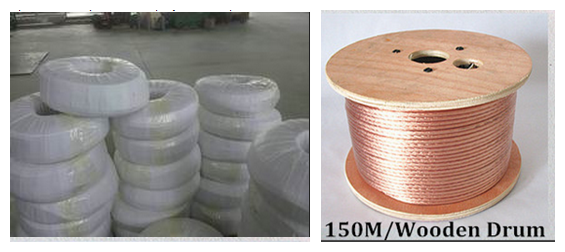

5.Packing:
1)100meter per Roll 2) by drum 3) or according to the customer's request
6.Technical Specification:
| Normal area (mm2) | Conductor Structure (mm) | Insulation Average. thickness (mm) | Calculated Overall dia. (mm) |
| 2x0.35 | 20/0.15 | ||
| 2x0.50 | 28/0.15 | 0.70 | 2.20x4.40 |
| 2x0.75 | 42/0.15 | 0.70 | 2.40x4.80 |
| 2x1.00 | 57/0.15 | 0.80 | 2.60x5.20 |
| 2x1.50 | 85/0.15 | 0.90 | 3.10x6.20 |
| 2x2.00 | 7x36/0.10 | 1.00 | 3.90x7.80 |
| 2x2.50 | 7x45/0.10 | 1.20 | 4.20x8.40 |
| 2x4.00 | 7x72/0.10 | 1.30 | 4.80x9.60 |
| 2x0.50 | 28/0.15 | 0.80 | 2.40x4.80 |
| 2x0.75 | 42/0.15 | 0.80 | 2.50x5.00 |
| 2x1.00 | 32/0.20 | 0.80 | 2.80x5.70 |
| 2x1.50 | 7x27/0.10 | 0.90 | 3.20x6.50 |
| 2x2.50 | 7x20/0.15 | 0.90 | 3.60x7.40 |
| 2x4.00 | 7x32/0.15 | 1.00 | 4.30x8.80 |
| 2x6.00 | 7x48/0.15 | 1.00 | 4.80x9.80 |

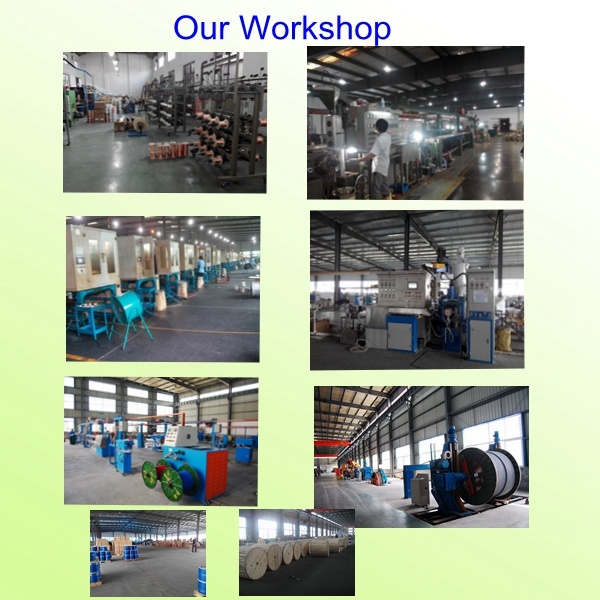

7.Our workshop
8.Used place
