Hot Sale Rg213 Rg59 Coaxial Cable

RG213

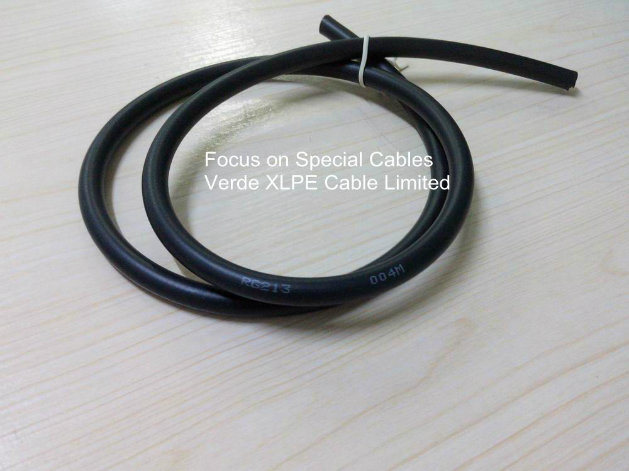

COAXIAL CABLE RG213

Specifications:

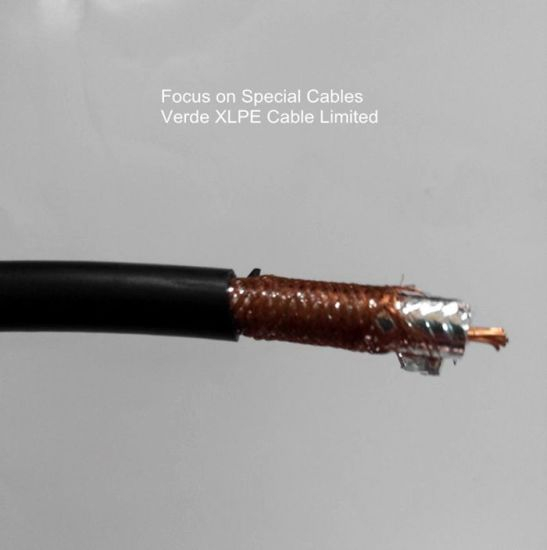

1)7X0.724mmBareCopper+7.24mmSolid PE+96%BareCopperBraiding +10.3mmPVC(or PE)
2) Customers' specifications are welcomed

Note:
1) Center conductor: Tinned Copper, and Bare Copper available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 70- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.

Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 66%
Capacitance: 30.8pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ]  dB/100meters
10MHz:  1.80dB           400MHz: 15.10dB
20MHz:  2.80dB           500MHz: 16.20dB
50MHz:  4.40dB           8000MHz: 21.50dB
100MHz: 6.80dB         1000MHz: 24.50dB
200MHz: 9.70dB

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
