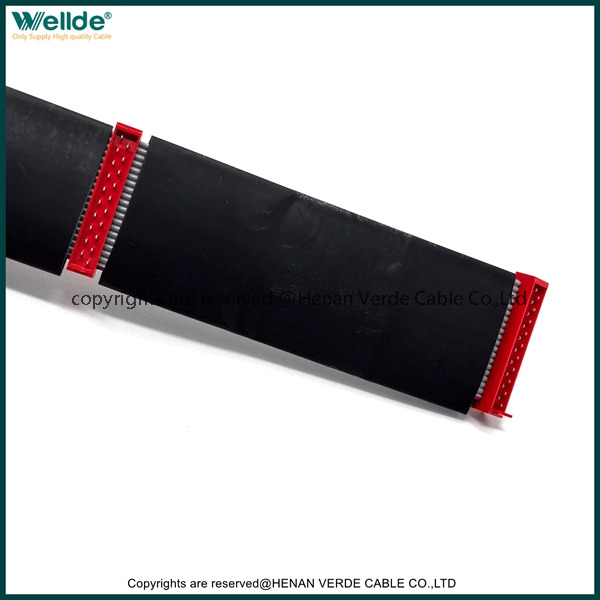

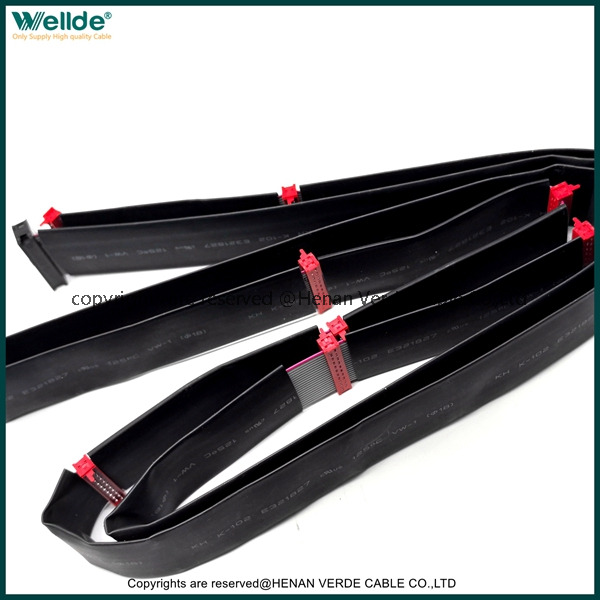

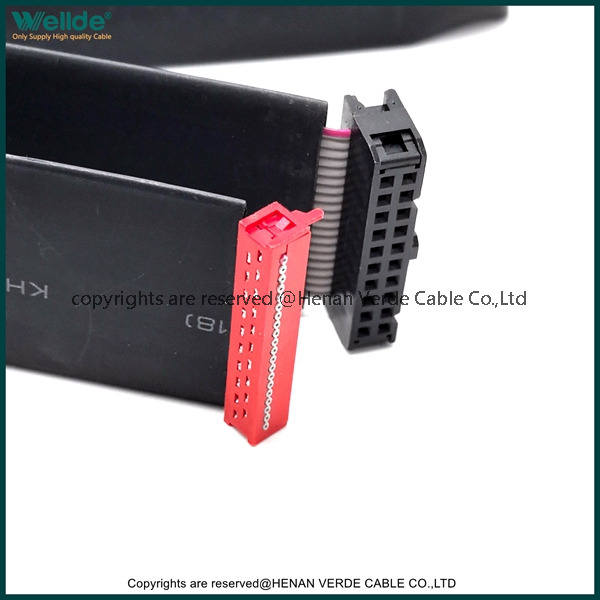

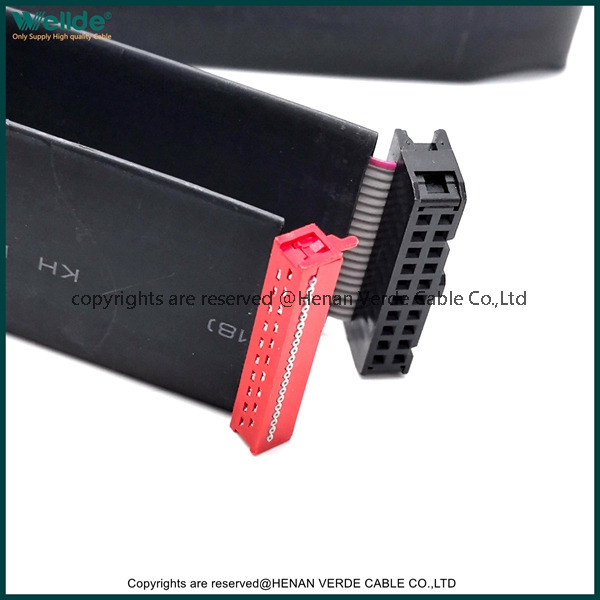

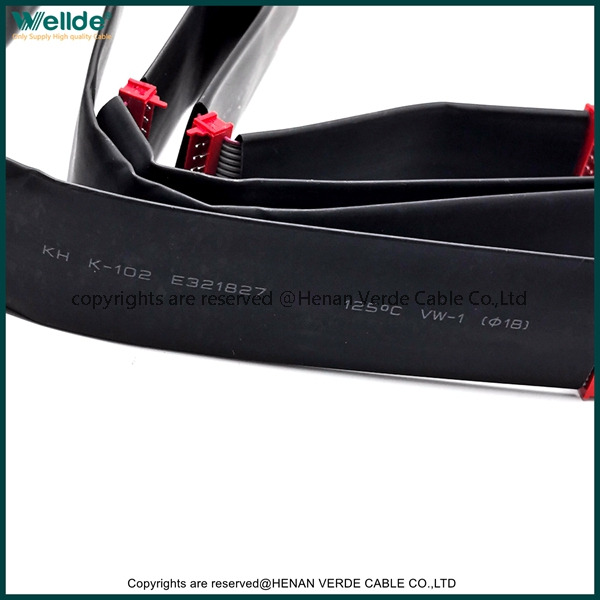

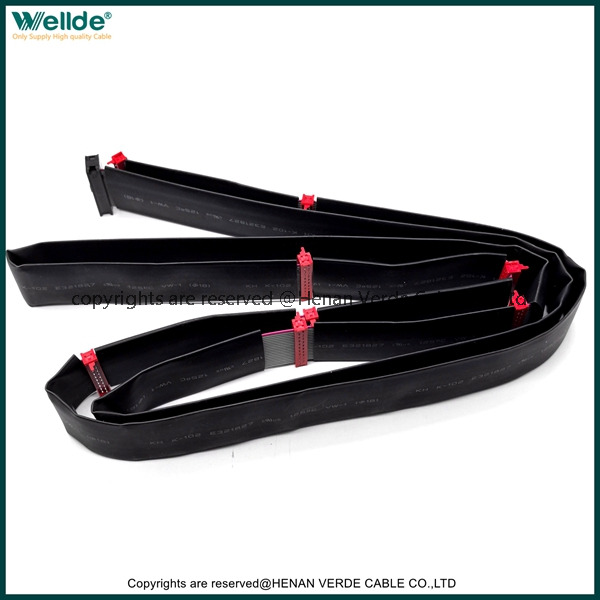

Industrial Control Flat Cable 1.27mm Computer Flat Ribbon Cable Multicore Digital Cable

Model

Meaning

Applicable scenarios

UL2651

Standard gray flat cable
Industry general standard model, light gray flat jacket, 1.27mm standard spacing, side with red edge positioning line, oxygen free copper multi strand conductor, rated voltage 300V, temperature resistance 105 ℃.

Internal connection of general electronic equipment: internal signal of computer motherboard/display, interconnection of industrial computer boards and cards, home appliance control board, LED display module, internal circuit of printer.

UL2651-TP

Color flat cable
Each core wire has independent color insulation (red/yellow/Green/Blue/black, etc.), which replaces a single gray sheath. The core wire number is clear, without additional red side lines, and has strong anti misconnection ability.

Server Internal harness, precision instrument, complex control module, medical equipment, industrial control cabinet requiring rapid maintenance.

UL2651-H

High flexibility cable
The ultra-fine multi strand stranded soft copper conductor is adopted, and the flat jacket is thickened. The repeated bending life is increased by more than 50%, and the structure is more flexible and not easy to break the core.

Vending machines, cash counting machines, small lifting equipment, printers/scanners, and frequently reciprocating electronic actuators.

UL2651-SP

Ultra narrow spacing cable
The core wire spacing is optimized to 1.0mm, the number of cores under the same width is increased by 25%, and the volume is smaller, which is suitable for the internal wiring of high-density compact equipment.

Short distance signal transmission between wearable devices, small sensor arrays, micro projectors, portable digital products and high-density PCB boards.

UL2651-OD

Halogen free environmental protection cable
The sheath and insulation are made of low smoke and halogen-free (LSZH) materials, which have less smoke and halogen-free toxic gases during combustion, and comply with the European Union rohs/reach environmental protection directive.

High end electronic equipment, public equipment: rail transit control system, bank self-service terminal, fire alarm equipment, places with mandatory requirements for environmental protection and safety.
