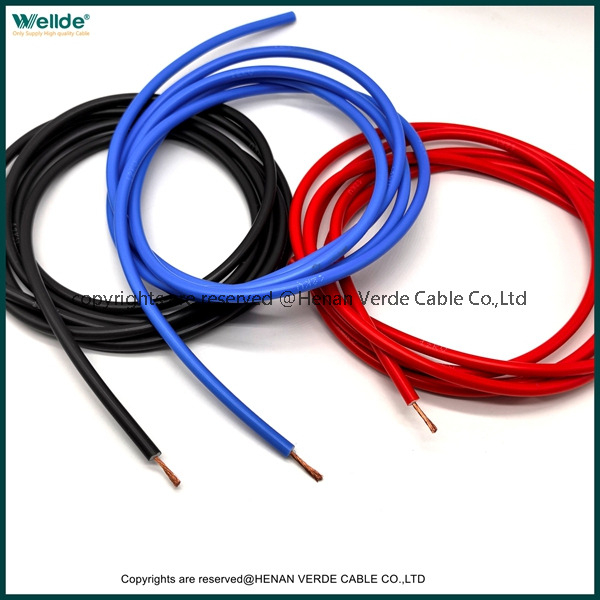

Product Information Sheet
Item | Detailed Specifications |
|---|---|
Conductor Material | Tinned oxygen-free copper, anti-oxidation with excellent electrical conductivity |
Insulation / Sheath | High-purity silicone rubber with high dielectric breakdown strength |
Available Colors | Red, black, blue, yellow-green, transparent; custom colors are acceptable |
Withstanding Voltage Rating | Multiple high voltage options available, max up to 100KVDC |
Continuous Operating Temperature | -60℃ ~ 200℃ |
Conductor Cross-section Area | 0.5 ~ 120 mm², non-standard cross-section customization supported |
Application Fields | Internal wiring for high voltage test instruments, electrostatic equipment, new energy energy storage, battery connecting wires, industrial heating equipment, plasma equipment, avionics equipment and laboratory high-voltage devices |
Compliance Certificates | CE, RoHS; complete factory test documents can be supplied |
About Us
1. Research and production of special silicone cables, with its own complete production workshop and high-voltage testing laboratory.
2. The entire production process is independently controllable.
3. Supply high-voltage silicone cables to overseas equipment manufacturers and instrument manufacturers year-round, familiar with overseas project technical standards
4. Each batch of products will undergo high-voltage withstand voltage, insulation resistance, and aging tests to ensure consistent quality.
