L.V. 4Core PVC / XLPE Insulated Electrcial Cable for Substaion or Power Plant
NYY Type

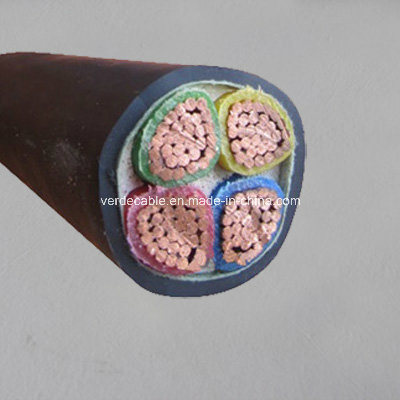

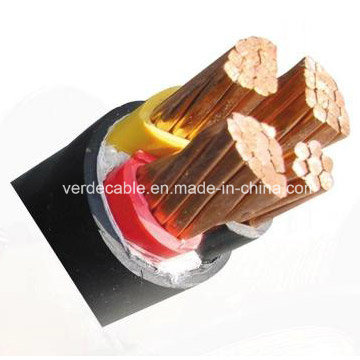

1.Structure:Copper Conductor / XLPE Insulated / PVC sheathed Power Cable
Designated products by Henan Power Company
2.Standard:
IEC60502,We can customize the special specification as per the customer's request.
3.Size as per IEC standard: 25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,............630mm2
4.Type Description & Application Occasion of cable
| Type | Description | Application Occasion | |
| Cu | Al | ||
| YJV | YJLV | XLPE insulation PVC sheath power cable | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
| YJY | YJLY | XLPE insulation PE sheath power cable | |
| YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
| YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable | |
| YJV62 | YJLV62 | XLPE insulation, Non-magnetism steel tape armor, PE sheath power cable | |
| YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint |
| YJV72 | YJLV72 | XLPE insulation, Non-magnetism steel-wire armor, PVC sheath power cable | |
| YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
| Hint specially | The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. | ||

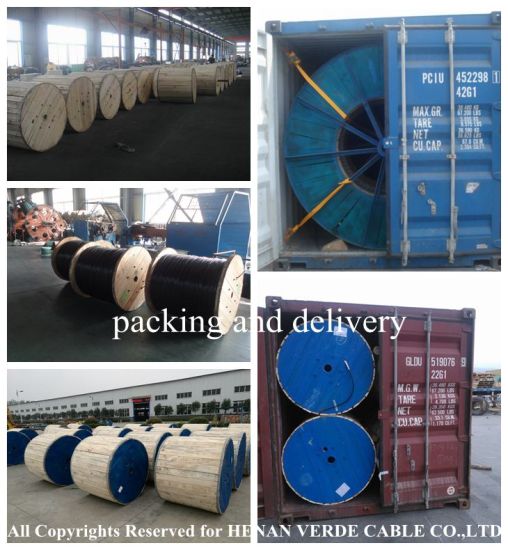

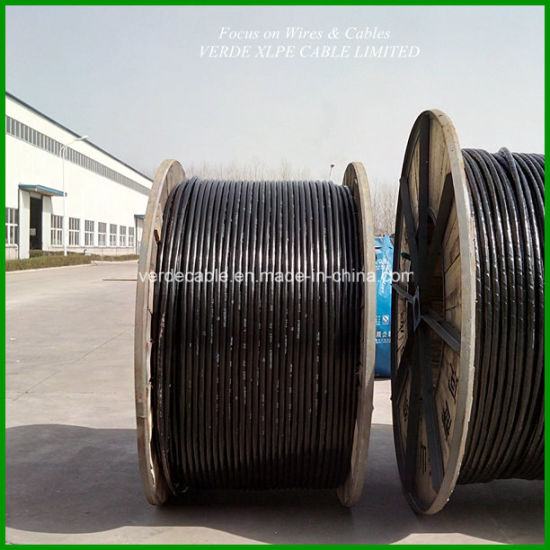

5.Packing:
Drum, Wooden Steel drum, All Steel Drum for big heavy cable
6.If you want to know more information about this kind product or us, pls send us email or contact:
Linda Lee
Tel:0086-37155611184
Mob:0086-13938400126
