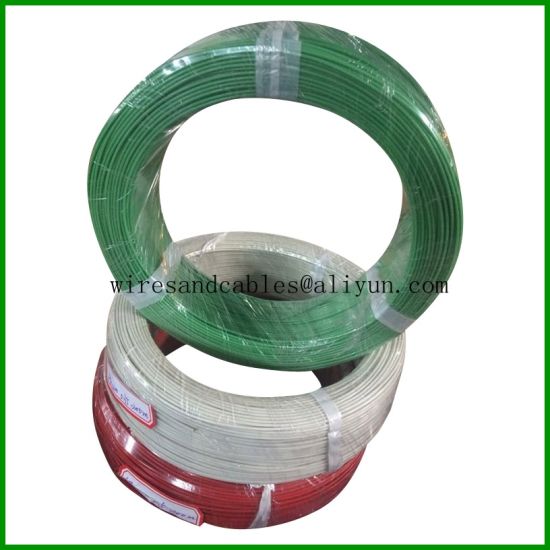

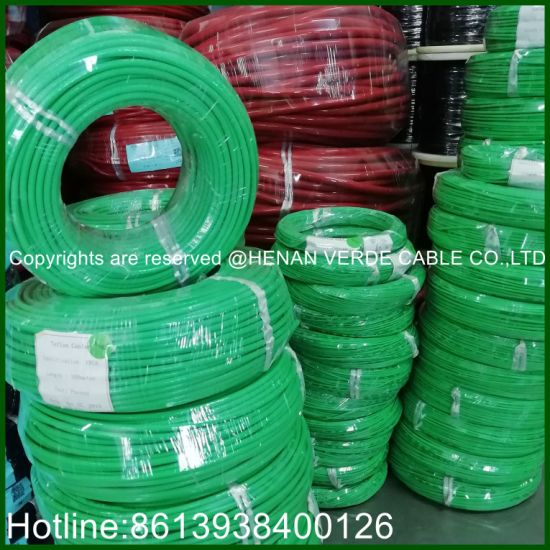

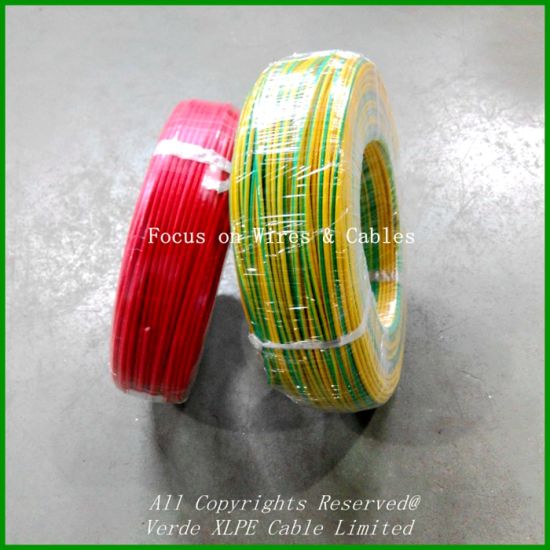

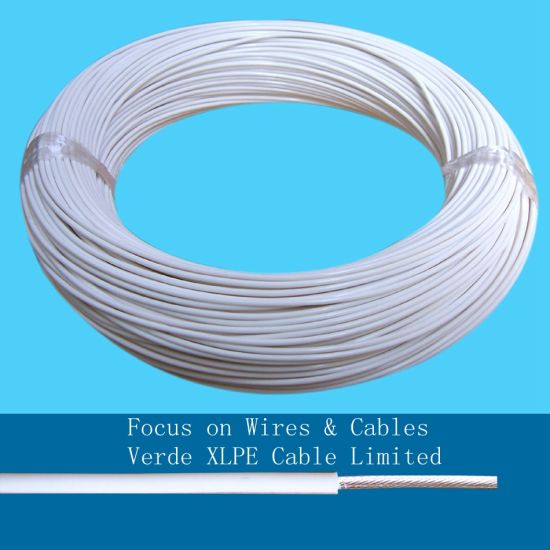

High temperature Resistant PFA Or PTFE Coated Teflon Wire for Different Electrical Applicances
Focus on Wires & Cables.
More than 15 years producing experience.
Different Specifications can be Customized as per your requirement.
1.Application:
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below. It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
2.Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage
Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+200ºC
Conductor: tinned copper or silver-plated copper
Insulation: FEP PTFE
Color:red yellow blue green white black orange purple brown
Specification for AF250
| Conductor Nominal Section(mm2) | Conductor Construction (No/mm) | Average. Insulation Thickness (mm) | Calculated. Outer Diameter (mm) | D.C. conductor resistance at 20ºC(Ω/km) | |
| Tinned copper | Silver coated copper | ||||
| 0.035 | 7/0.08 | 0.20 | 0.64 | 562 | 550 |
| 0.05 | 10/0.08 | 0.30 | 0.90 | 383 | 370 |
| 0.06 | 7/0.10 | 0.30 | 0.90 | 348 | 339 |
| 0.08 | 7/0.12 | 0.30 | 0.96 | 286 | 280 |
| 0.10 | 7/0.14 | 0.30 | 1.02 | 157 | 150 |
| 0.12 | 7/0.15 30/0.07 | 0.30 | 1.05 | 152 | 145 |
| 0.14 | 7/0.16 19/0.10 | 0.30 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.30 | 1.10 | 111 | 105 |
| 0.20 | 7/0.02 19/0.12 | 0.30 | 1.20 | 87 | 82 |
| 0.35 | 19/0.16 | 0.30 | 1.40 | 57 | 54 |
| 0.50 | 19/0.18 | 0.30 | 1.50 | 40 | 37.5 |
| 0.80 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1.00 | 19/0.26 | 0.35 | 2.00 | 21 | 20 |
| 1.20 | 19/0.28 | 0.45 | 2.30 | 19 | 18 |
| 1.50 | 19/0.32 | 0.45 | 2.50 | 13 | 12 |
| 2.00 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.50 | 37/0.30 | 0.55 | 3.20 | 8 | 7 |
| 3.00 | 37/0.32 | 0.68 | 3.60 | 6.8 | 6.4 |

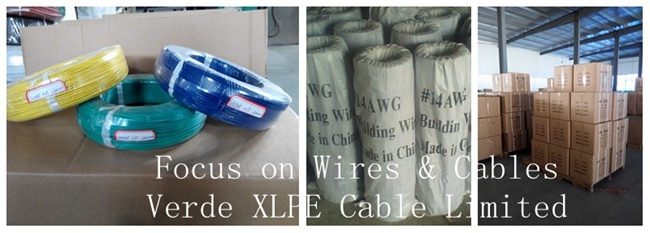

3.Packing for Teflon Wire
First step of Packing:100meter per Roll or 200meter per roll ,according to the customer's request
Second step of Packing: Roll into Carton or Plastic PP Bags
If you want to know more about us and our products,pls contact us.
Linda Lee
Manager Of Export Dep.
HENAN VERDE CABLE CO.,LTD
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Wires and Cables
Be Your Most Reliable Supplier
