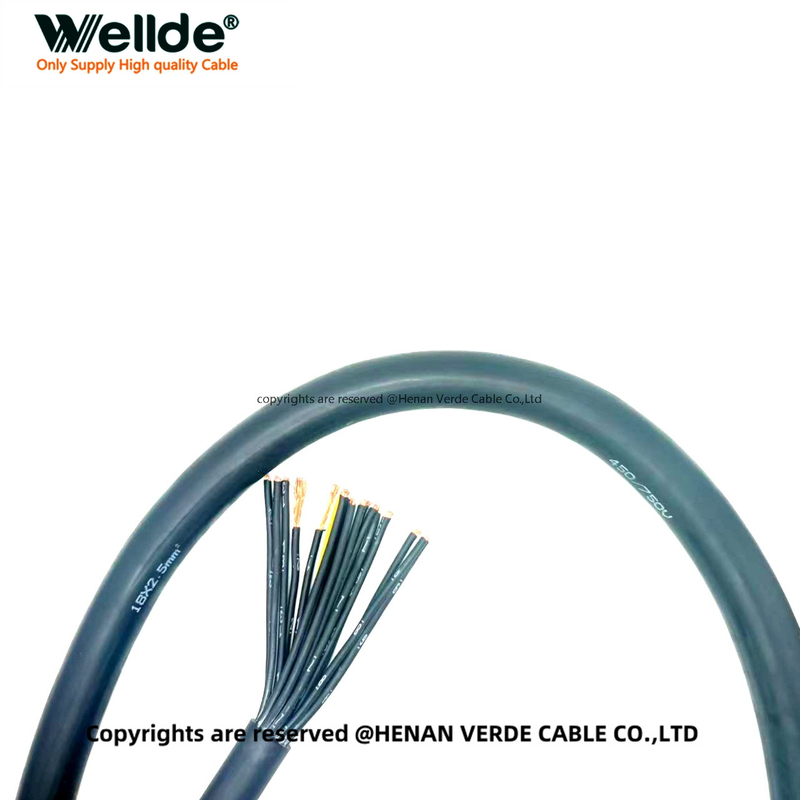

Product Description Of 18 Core Control Cable :
-Made with high-quality copper conductors and durable TPE insulation, this cable delivers reliable performance and flexibility.
-We offer multiple specifications, such as 14 core 1.5mm, 12 core 2.5mm, and 10 core 4mm to fit different project needs.
-To improve installation efficiency, we add talc powder between the cores and the sheath, making the outer jacket easier to strip and saving time during wiring.
-We also provide a variety of conductor options, including stranded copper wire, tinned copper wire, and fine-stranded flexible wire.
-We support custom lengths, OEM/ODM services, and fast delivery to meet your project schedule
Key Features Of Control Cables:
Multiple Specifications Available: From 10 to 18 cores, 1.5mm² to 4mm² options.
Added Talc Powder: Easier to strip the sheath, faster installation.
Full Service Support: OEM/ODM customization, fast delivery, and technical assistance.
Popular Specifications :
14 core 1.5mm TPE control cable
12 core 2.5mm TPE control cable
10 core 4mm TPE control cable
Popular Conductor Types:
Stranded copper wire
Tinned copper wire
Fine-stranded flexible wire
FAQ:
Q1: Can you supply custom lengths and packaging for TPE control cables?
A1: Yes, we offer custom lengths, labeling, and packaging to meet your project needs.
Q2: Do you provide technical support for cable selection?
A2: Yes, our team can recommend the right cable specification and conductor type for your application.
| Parameter | Specification |
| Conductor Material | Copper |
| Number of Cores | 18 cores |
| Cross Section per Core | 2.5 mm² |
| Overall Cable Diameter | 21.2 mm |
| Insulation Material | TPE |
| Sheath Material | TPE with talc powder for easy stripping |
| Insulation Outer Diameter | 3.35 mm |
| Average Insulation Thickness | 0.63 mm |
| Average Sheath Thickness | 2.22 / 2.56 / 2.53 mm |
| Conductor Structure | 50 strands per core (Ø0.252–0.265 mm) |
| Features | Flexible, strong, abrasion-resistant, easy to strip sheath |
| Applications | Industrial control panels, automation systems, machinery wiring |
