H05RN-F Rubber Sheathed Welding Rubber Cable Double Insulated
1.Hot sale to Europe including Greece,Denmark...
2.Standard:IEC60245, GB/T 5013 And Customized different specification and other Standard such as VDE,ASTM,DIN according to the customer's request
3. Application
1) These cables are used in electrical equipment under low stress in dry or damp indoor or outdoor environments.
2)They are commonly used as connection cables in horticulture or workshop tools that might be subject to or in contact with oils and fats.Also suitable for fixed installation in furniture,decorative coverings,wall partitions and prefabricated building parts.
4.Type and Description
| Chinese type | Description |
| 60245 IEC 57 (YZW) | Cu conductor EPR Insulated PCP sheathed rubber cable |
| Equivalent Type: H05RN-F | |

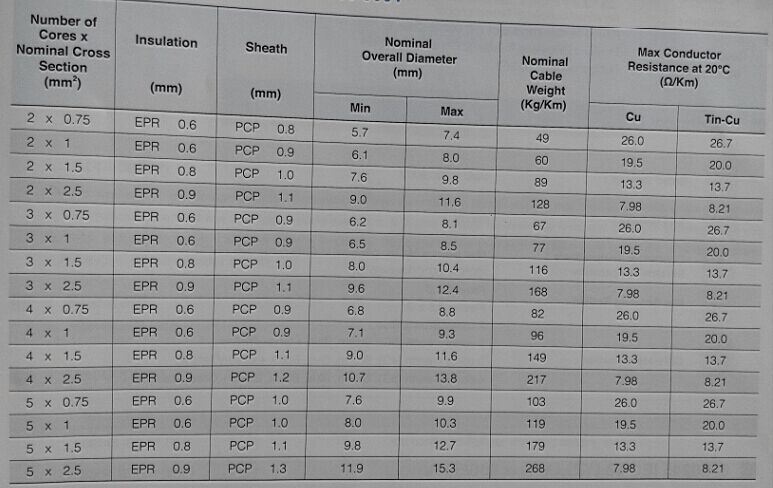

5. Technical Data:
Rated voltage:300/500V
Test voltage: 2000V
Conductor temperature:Max permission temperature in continous use +60ºC Service temperature:-30ºC +60ºC

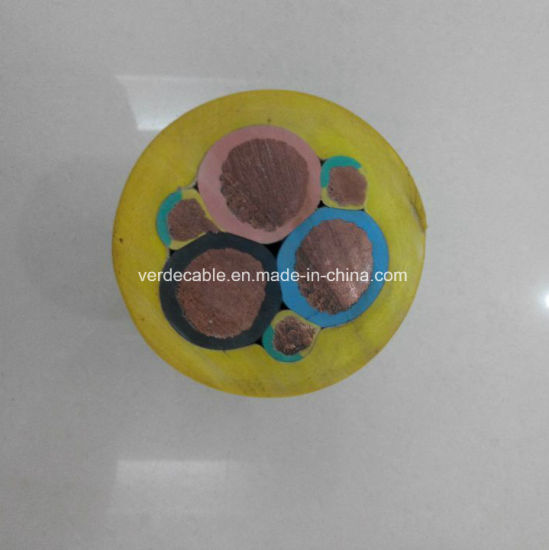

Core indentification:
2cores: Brown, Blue
2cores+earh(3G):Brown, Blue,+Green/Yellow
3 cores+earth(4G):Brown, Blue,Black,+Green/Yellow
4 cores + earth(5G):Brown, Blue,Black,Black,+Green/Yellow
6.Packing in Different Ways:

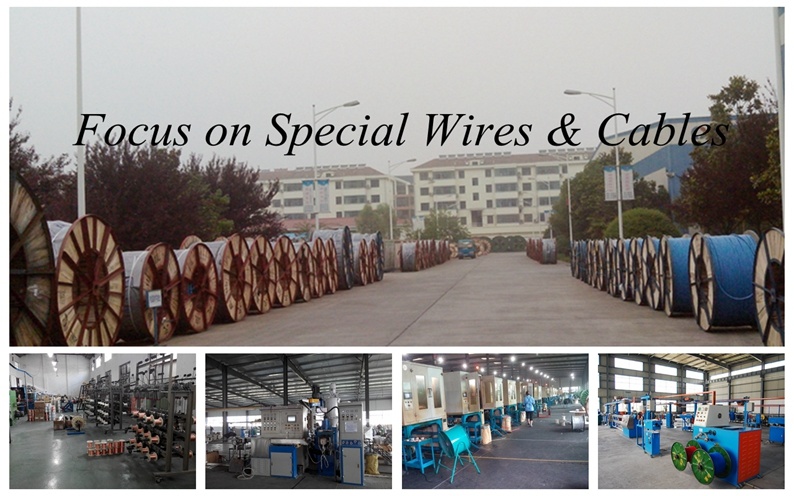

7. Parts of Our Workshop:
