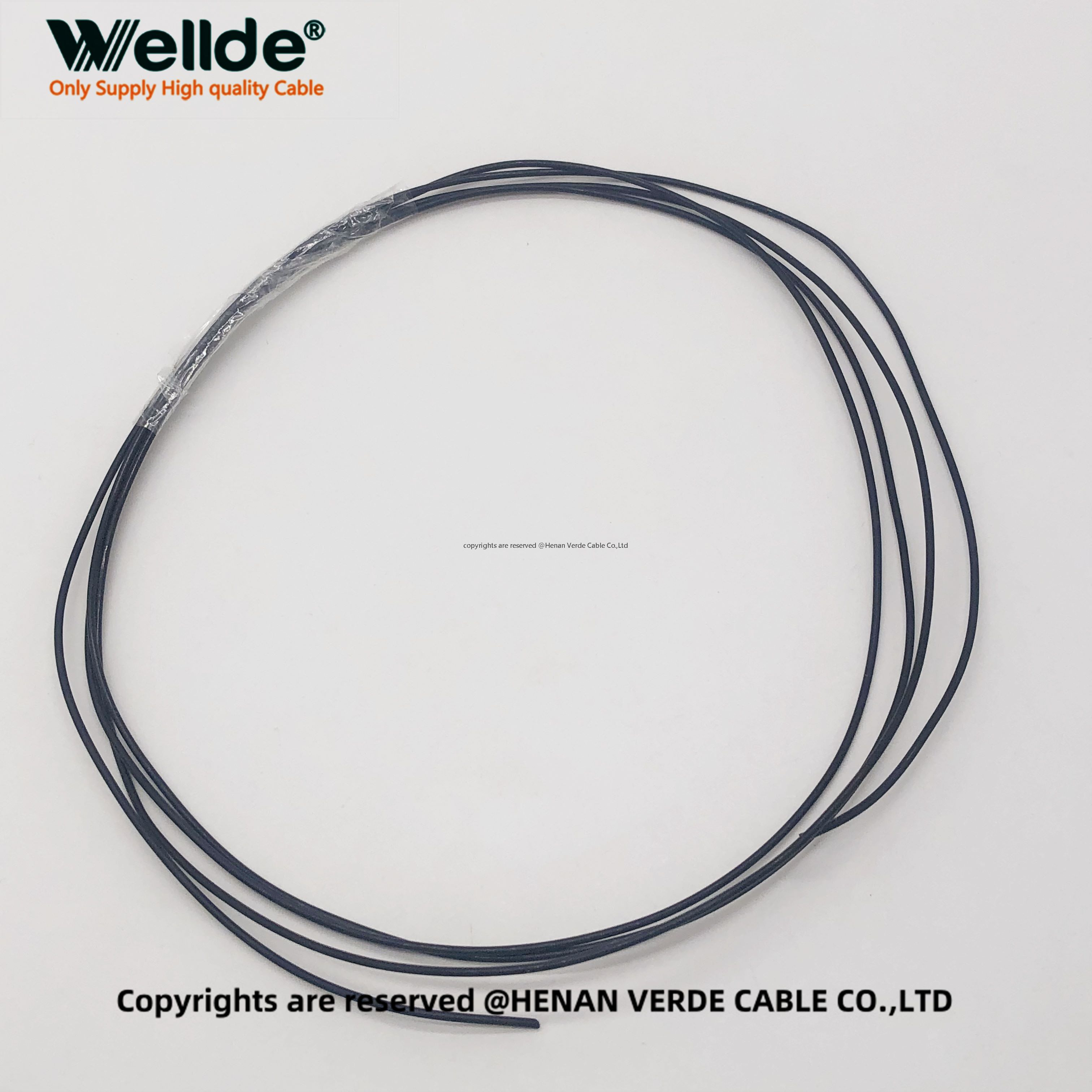

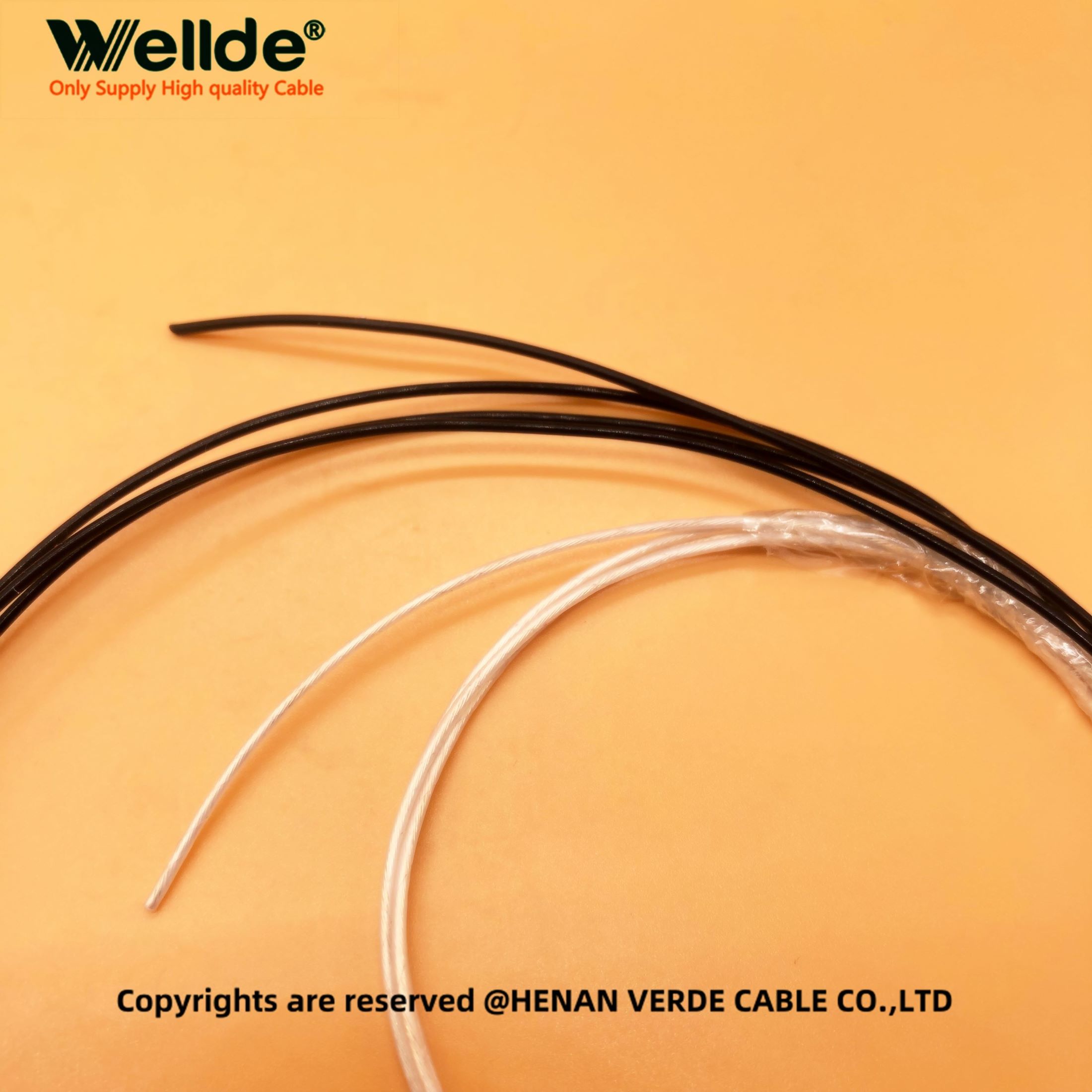

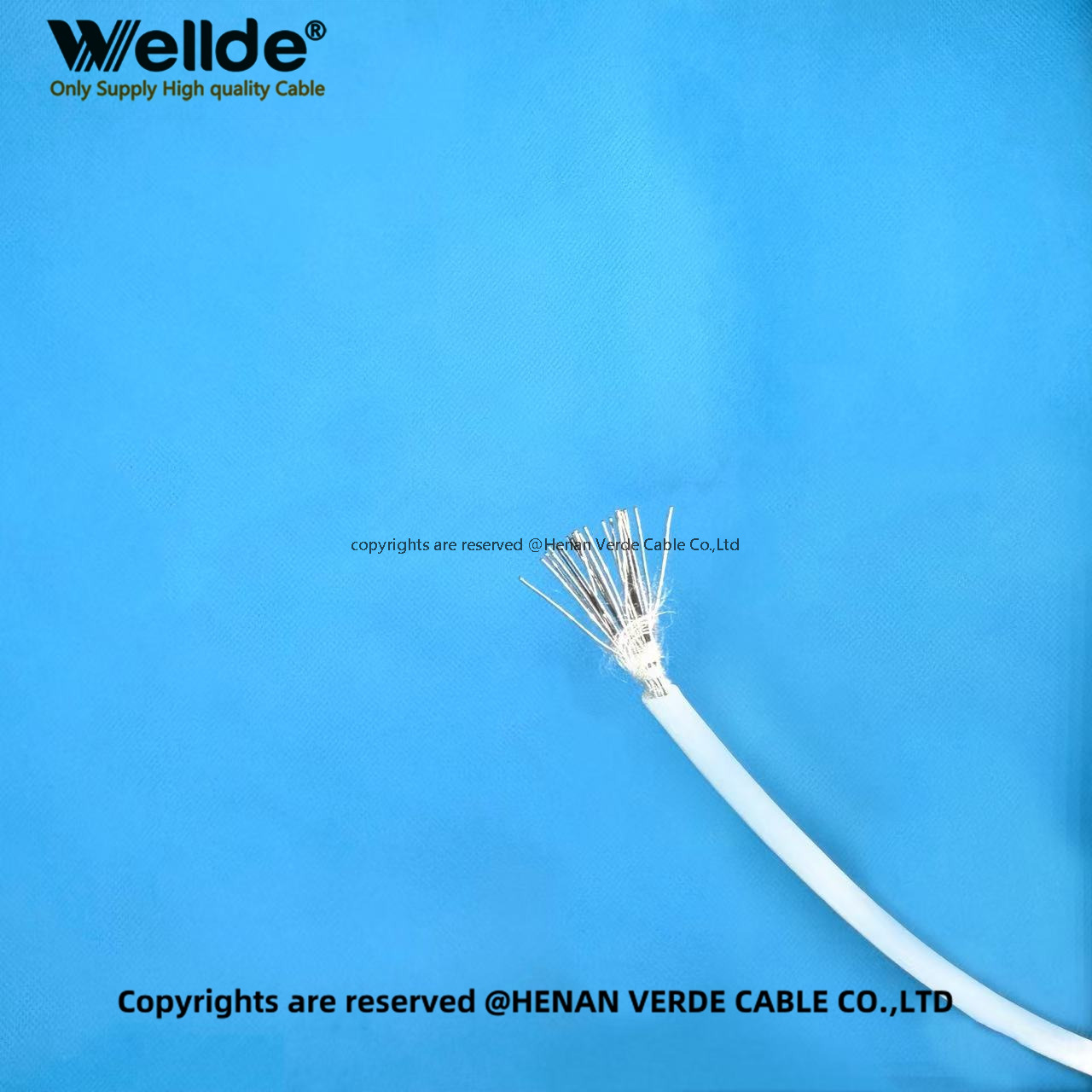

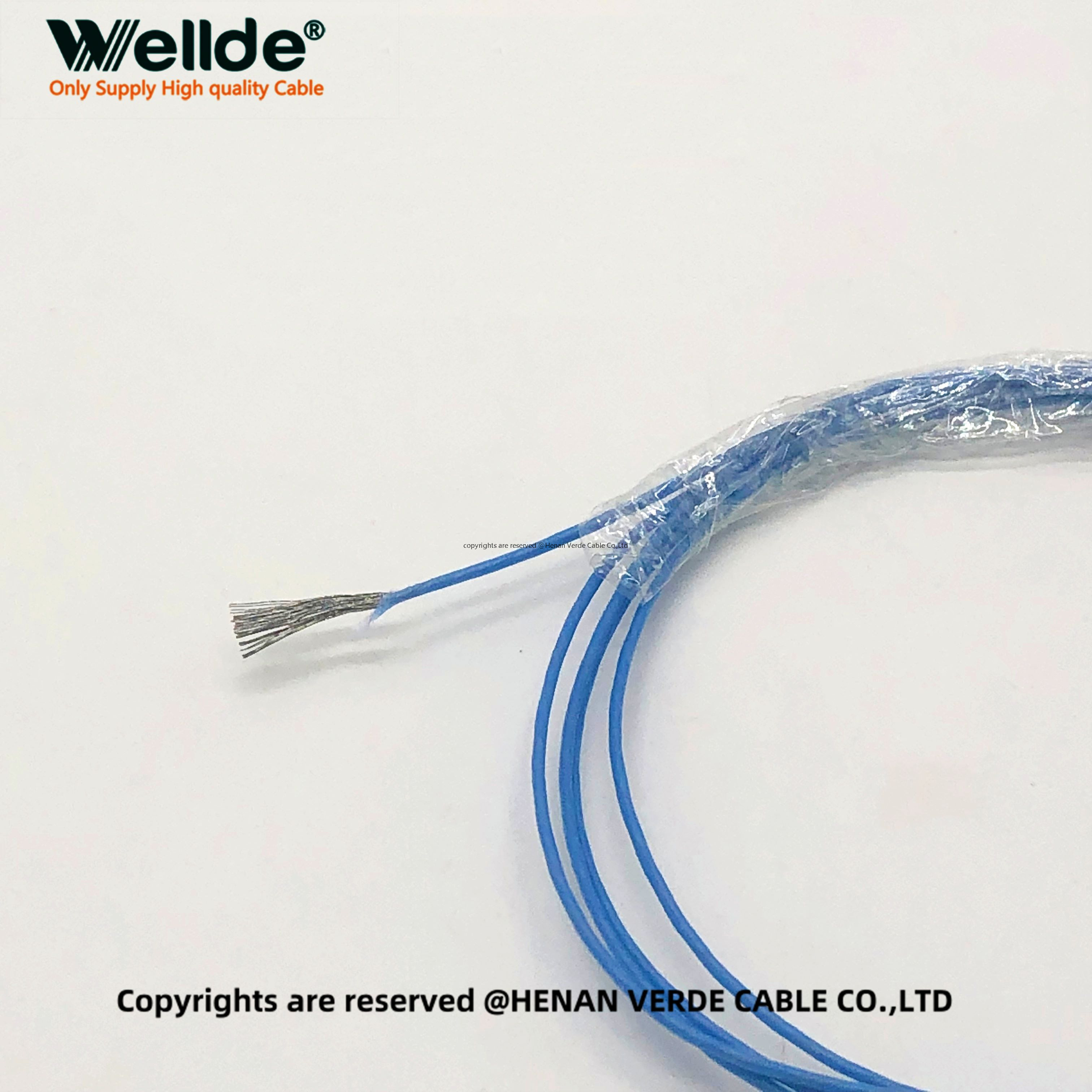

This 26AWG PTFE insulated wire is designed for demanding high-temperature and high-voltage applications
Conductor： silver-plated / tinned copper
Insulation : FEP / PTFE materials
Rated for voltages up to 600V and temperatures up to 200°C, it is ideal for use in electronics, aerospace, industrial equipment, and harsh environments.
Excellent electrical performance with stable conductivity
PTFE/FEP insulation resists heat, abrasion, chemicals, oils, and solvents
Outstanding thermal aging resistance, solder damage protection, and flame retardancy
Superior moisture resistance for humid or corrosive environments
Certified to UL, CE, and RoHS standards
Low smoke, halogen-free – ideal for enclosed or sensitive systems
Flexible yet durable design for compact or confined wiring spaces
Electromechanical systems: wiring for motors, AC machines, and generators
Electrical engineering: internal wiring for transformers, inductors, inverters, and choppers
Suitable for automation control, medical devices, instrumentation, and aerospace
Q1：Do you provide after-sales support for PTFE insulated wires?
A1：Yes, we offer full after-sales service for all our PTFE/FEP insulated wires, including technical support, quality issue follow-up, and fast response to inquiries. Our team ensures each customer receives professional assistance before and after purchase.
Q2： Can I customize the PTFE wire according to my project needs?
A2：Absolutely. We provide OEM and ODM services. You can customize the conductor type (silver or tinned copper), insulation material (PTFE or FEP), jacket color, length, and even packaging. We support small batch prototyping and bulk production to meet various industrial or engineering requirements.e harnessing
| Conductor | Insulation | Electrical Properties | Packing | |||
| Sectional Area (mm²) | Conductor Construction | Diameter (mm) | Insulation Thickness (mm) | Outer Diameter (mm) | Max. Conductor Resistance DC 20°C Ω/km | M/coil |
| 0.014 | 7X0.05 | 0.15 | 0.15 | 0.45 | 1343.00 | 500 |
| 0.035 | 7X0.08 | 0.24 | 0.15 | 0.54 | 525.00 | 500 |
| 0.05 | 7X0.10 | 0.30 | 0.15 | 0.60 | 376.20 | 500 |
| 1X0.26 | 0.26 | 0.17 | 0.60 | 376.20 | 500 | |
| 0.07 | 1X0.30 | 0.30 | 0.20 | 0.70 | 245.00 | 500 |
| 0.08 | 7X0.12 | 0.36 | 0.20 | 0.76 | 227.00 | 500 |
| 0.12 | 7X0.15 | 0.45 | 0.20 | 0.85 | 150.00 | 500 |
| 0.2 | 7X0.20 | 0.60 | 0.25 | 1.10 | 83.50 | 500 |
| 0.35 | 19X0.16 | 0.80 | 0.25 | 1.30 | 49.50 | 200 |
| 0.5 | 19X0.18 | 0.90 | 0.25 | 1.40 | 36.00 | 200 |
| 0.75 | 19X0.23 | 1.15 | 0.28 | 1.70 | 22.70 | 200 |
| 1.0 | 19X0.26 | 1.30 | 0.25 | 1.80 | 19.00 | 200 |
| 1.2 | 19X0.28 | 1.40 | 0.30 | 2.00 | 15.30 | 200 |
| 1.5 | 19X0.32 | 1.60 | 0.30 | 2.20 | 11.70 | 200 |
| 2.0 | 19X0.37 | 1.85 | 0.30 | 2.45 | 9.45 | 100 |
| 2.5 | 19X0.41 | 2.05 | 0.40 | 2.85 | 6.86 | 100 |
| 4.0 | 37X0.37 | 2.59 | 0.40 | 3.38 | 4.51 | 100 |
| 6.0 | 37X0.45 | 3.15 | 0.50 | 4.20 | 3.05 | 100 |
