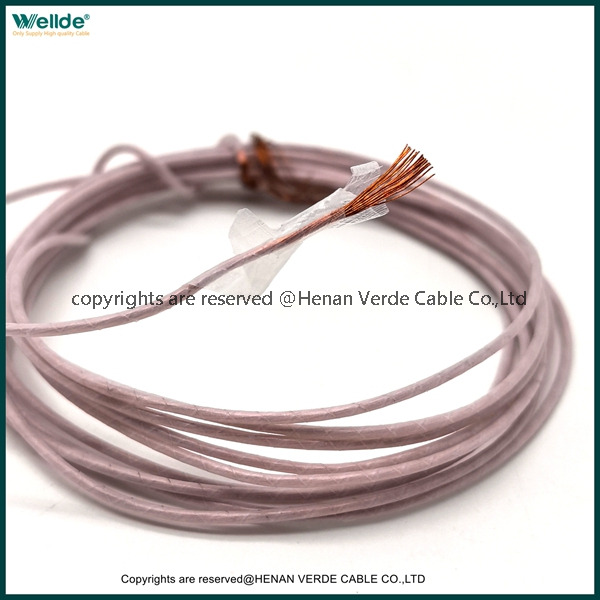

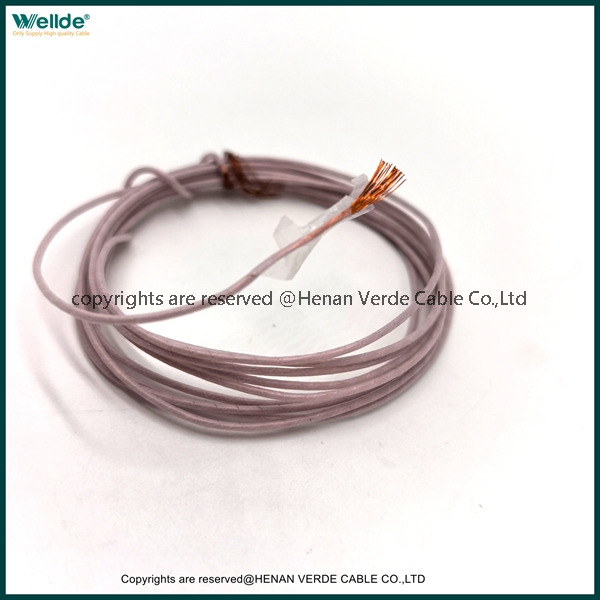

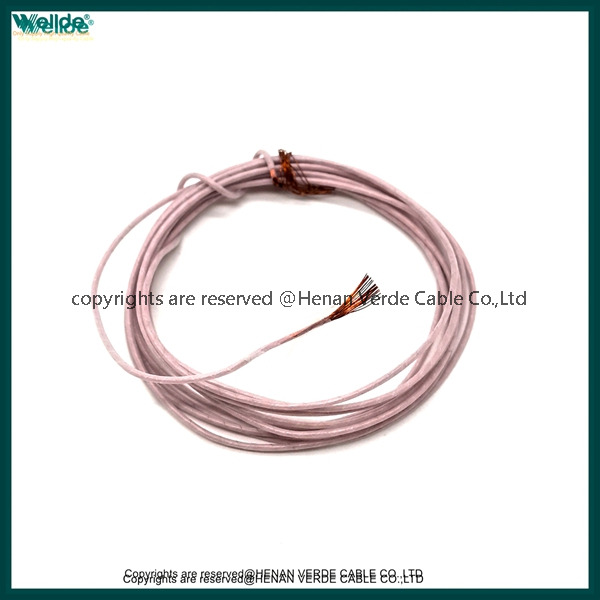

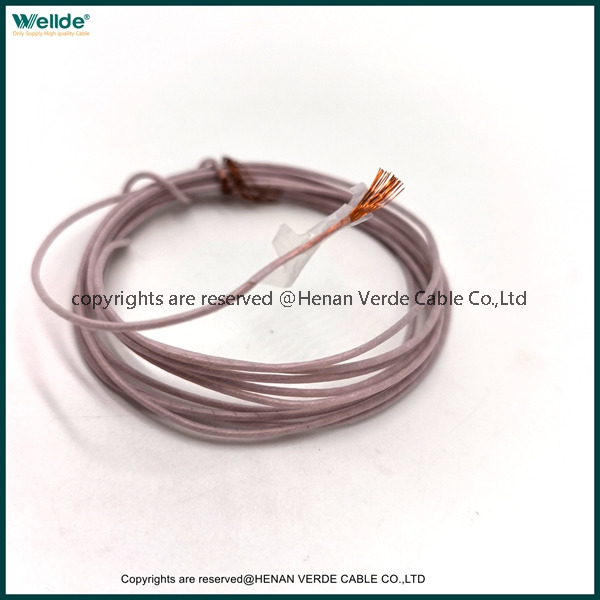

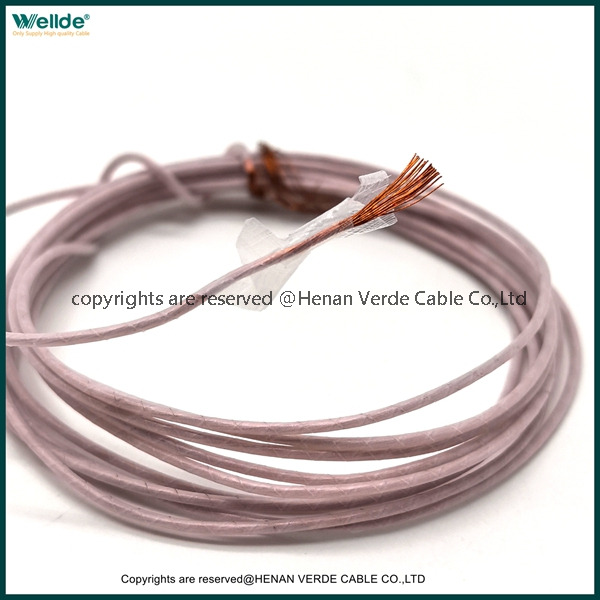

PTFE High-temperature Wire
Wellde
Support
AWG/Color/Length
Product Information
Item | Specification |
|---|---|
Wire Gauge | 26AWG |
Conductor | Stranded Bare Copper Conductor |
Insulation | Pink PTFE Film Wrapping |
Rated Voltage | 600V |
Operating Temperature Range | -200℃ ~ 260℃ |
Cable Features | Chemical corrosion resistance, low dielectric constant, high temperature resistance, lightweight & flexible |
Recommended Applications | Temperature sensor leads, laboratory analytical instruments, aerospace onboard components, chemical testing equipment, internal wiring for precision medical instruments |
Compliance Documents | RoHS, CE, Factory Test Report |
FAQ
Q1: How to choose PTFE wire and silicone high-temperature wire?
A1: PTFE has a higher upper limit of temperature resistance and stronger resistance to chemical solvents; Silicone cables are softer and more affordable. PTFE is preferred for contact strengthening materials and long-term working conditions above 200 ℃.
Q2: Can this 26AWG pink PTFE wire be used as a buried sensor lead?
A2: Yes, PTFE insulation is stable and heat-resistant, suitable for embedding temperature probes; If higher protection is required, please consult our multi-core PTFE wire harness solution.
Q3: What is the minimum order quantity?
A3: Regular specifications with low minimum order quantity, samples can be tested first, and bulk orders enjoy tiered pricing.
Q4: Can the customer model be printed on the surface of the wire?
A4: To meet the minimum order quantity, text labels can be printed on the surface of the wire.
