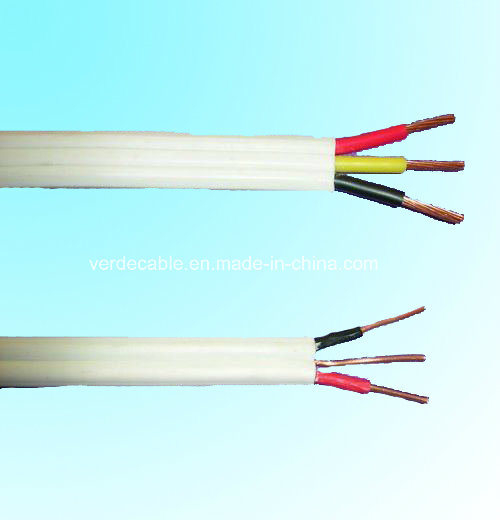

Copper Conductor PVC insualted Flat Cable
Application: Suitable for Electrical appliances, switch, lighting, distribute, surface wiring, indoor or outdoor
1.450/750V Copper or aluminum or CCA conductor PVC insualted flat cable as per IEC227,228 standard.
2.More than 15 years manufacture experience
3.Competitive price and assured SGS qualified quality.
4.Core number: 2, 3,4
5.Size:1.0,1.5,2.5,4,6,10,16
6.Color:we can produce according to the requirement of the customer.
| Conductor | solid or stranded copper/aluminum |
| Insulation | PVC |
| Sheath | PVC |
| Shape | flat |
| core number | 2/3 |
| Rated voltage | under or up to 450/750V |
| sectional area(mm2) | 0.75~10mm2 |
| Color | red,yellow,blue,green,black or customized |
| Package | plastic bag or wooden case |
Technical Data
| Type | Name | Properties |
| BVVB | Copper-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70ºC |
| BLVVB | Aluminum-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70ºC |
| Core number & sectional area, mm | Conductor structure, Nr./mm | Stipulated insulation thickness, mm | Stipulated sheath thickness, mm | Average external size, mm | 20°C , DC, resistance ≤Ω/km | ||
| Min. | Max. | Copper-core | Aluminum-core | ||||
| 2×0.75 2×1.0 2×1.5 2×2.5 2×4 2×4 2×6 2×6 2×10 3×0.75 3×1.0 3×1.5 3×2.5 3×4 3×4 3×6 3×6 3×10 | 1/0.97 1/1.13 1/1.38 1/1.78 1/2.25 7/0.85 1/2.78 7/1.04 7/1.35 1/0.97 1/1.13 1/1.38 1/1.78 1/2.25 7/0.85 1/2.78 7/1.04 7/1.35 | 0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.8 1.0 0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.8 1.0 | 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.2 0.9 0.9 0.9 1.0 1.1 1.1 1.1 1.1 1.2 | 3.8×5.9 3.9×6.1 4.4×7.0 5.1×8.4 5.6×9.2 5.7×9.5 6.2×10.4 6.4×10.8 7.9×13.4 3.8×7.9 3.9×8.4 4.4×9.6 5.1×11.6 5.8×13.1 5.9×13.5 6.2×14.5 6.4×15.1 7.9×19.0 | 4.6×7.1 4.8×7.4 5.3×8.5 6.2×10.1 6.7×11.1 6.9×11.5 7.5×12.5 7.8×13.0 9.5×16.2 4.6×9.6 4.8×10.1 5.3×11.7 6.2×14.0 7.0×15.8 7.1×16.3 7.5×17.5 7.8×18.2 9.5×23.0 | 24.5 18.1 12.1 7.41 4.61 4.61 3.08 3.08 1.83 24.5 18.1 12.1 7.41 4.61 4.61 3.08 3.08 1.83 | - - - 12.1 7.41 - 4.61 - 3.08 - - - 12.1 7.41 - 4.61 - 3.08 |
