Power Transmission Cable Standard Cable ACSR bare overhead conductor

Product Highlights

1. Increase the cross-sectional galvanized steel reinforcement core, significantly improve the overall rated tensile strength, and meet the requirements of ultra large span installation

2. Reasonably match the proportion of aluminum steel sections, taking into account both current carrying capacity and mechanical tension

3. Accurately control the twisting pitch, ensure even force distribution, and avoid single point stress concentration and strand breakage

4. Suitable for complex terrains such as mountains, canyons, and rivers where it is difficult to increase support towers

5. Effectively control the maximum sag of the line and reduce the hidden danger of insufficient safety distance from the line to the ground

6. Can be matched with various heavy-duty power fittings, with strong construction compatibility

Product Information

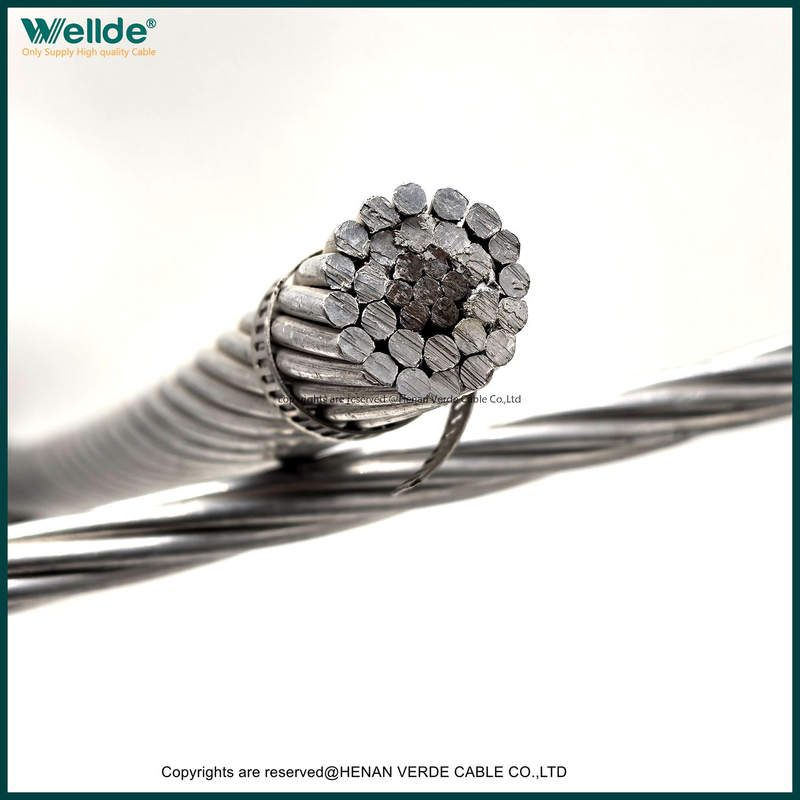

• Product Name: High tensile ACSR steel core aluminum stranded wire

• Structural features: Increase the proportion of steel core and enhance overall mechanical strength

• Applicable scenarios: Cross domain transmission projects in mountainous areas and rivers with large spans

• Optional specifications: Multiple aluminum steel section ratio models available for selection

• Test items: Full testing of rated breaking force, DC resistance, and appearance dimensions

Application Scenarios

Mountain power grid, long-distance overhead transmission lines in plateau areas

River, lake and gorge crossing power channel

Distribution lines in forest and hilly areas
