ROHS Silk-Covered Wire

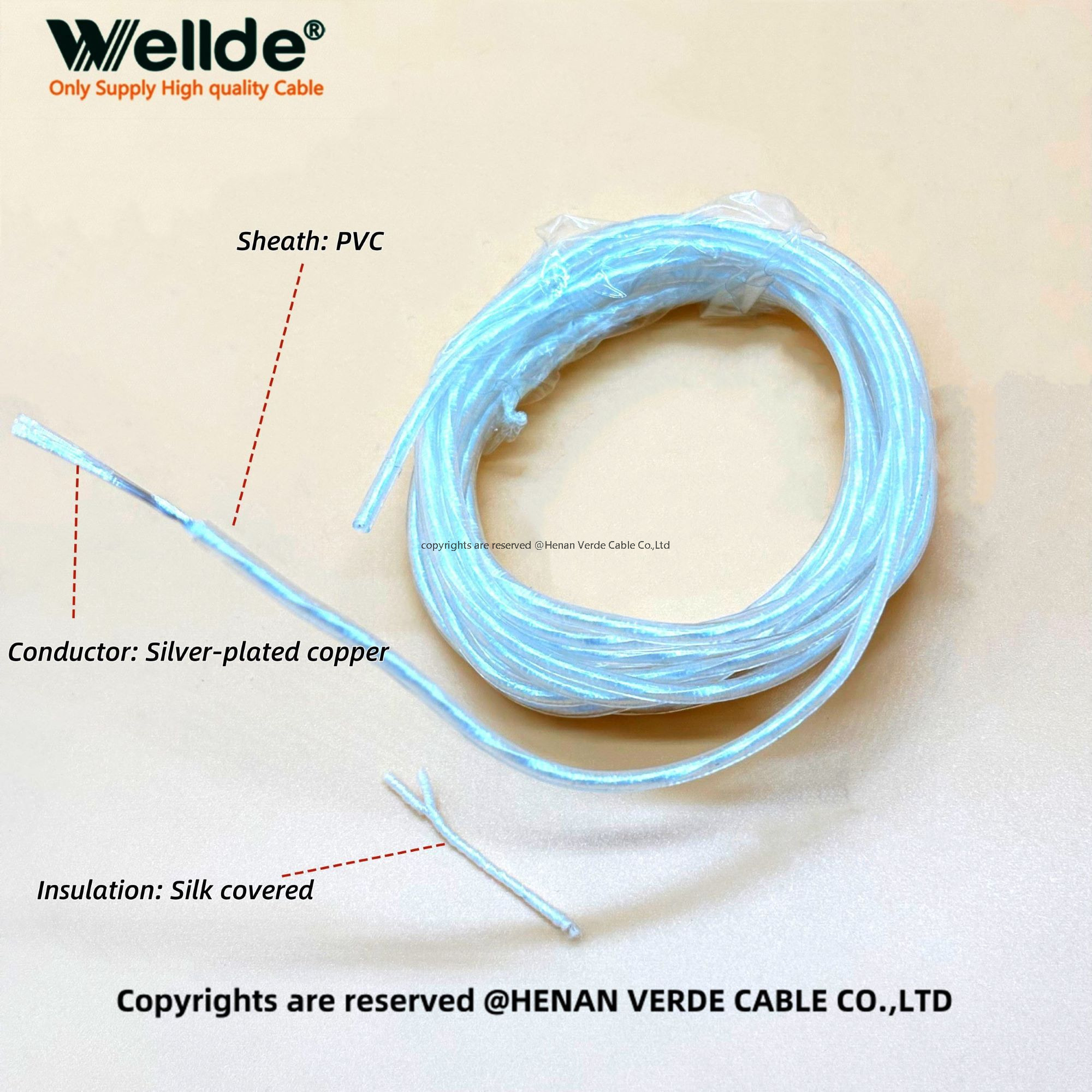

Silver Plated 0.5mm² Silk Covered Wire With PVC Sheath – 300V Rated For High-Frequency Coil Applications.

Looking for a wire that works well in high-frequency, low-voltage environments?
This 0.5mm² silver-plated silk-covered wire with PVC sheath is the ideal choice.
It is designed for coil winding in high-frequency transformers, RF inductors, and renewable energy systems.

Product Features:

Excellent High-Frequency Resistance

The silver-plated copper conductor ensures low resistance and stable signal performance at high frequencies.

Neat and Uniform Coil Winding

The silk insulation layer provides a smooth surface tension, making it easier to wind tightly and achieve even coils.

Reliable and Durable

Works stably over long periods, even in harsh or demanding environments. Perfect for low-voltage, high-frequency electronics.

Technical Specifications:

Conductor Silver-plated copper

Cross Section 0.5 mm²

Insulation Silk wrapped

Sheath PVC (Polyvinyl Chloride)

Rated Voltage 300V

Temperature Range -20°C to +105°C

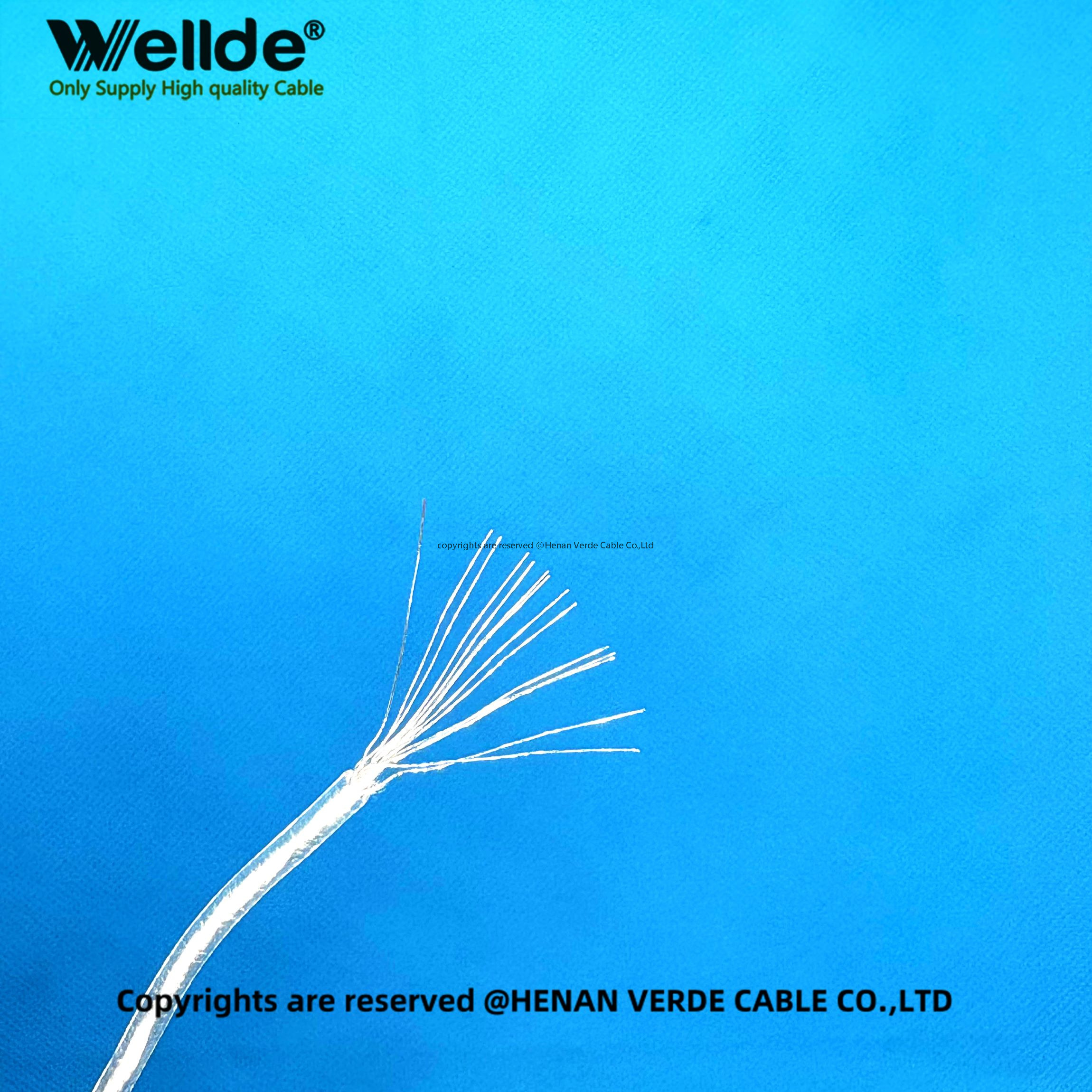

Structure Single core or multi-strand (optional)

Compliance RoHS compliant / Custom specs available

Applications:
This Heat-Resistant Silk Coil Wire Is Widely Used In:

High-frequency transformers

RF (radio frequency) inductors

Electric vehicle charging coils

Renewable energy systems

Wind turbine generators

Why Choose This Silk Covered Wire?

Designed for precise coil winding applications

Delivers stable performance in high-frequency circuits

Ideal for modern energy and industrial electronics
