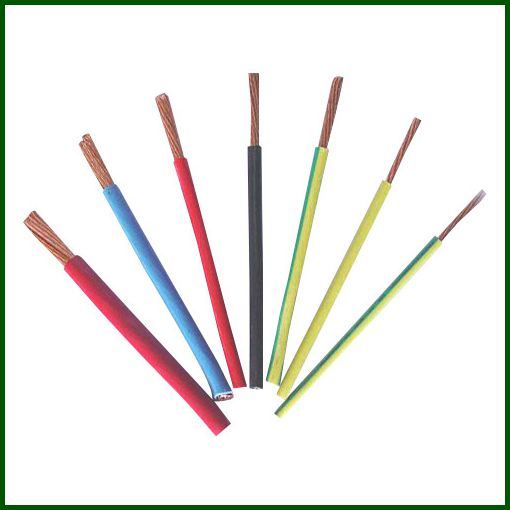

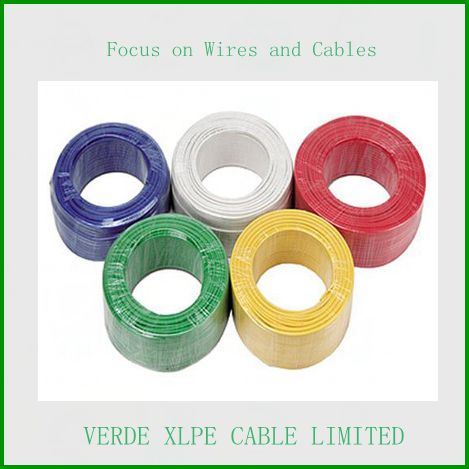

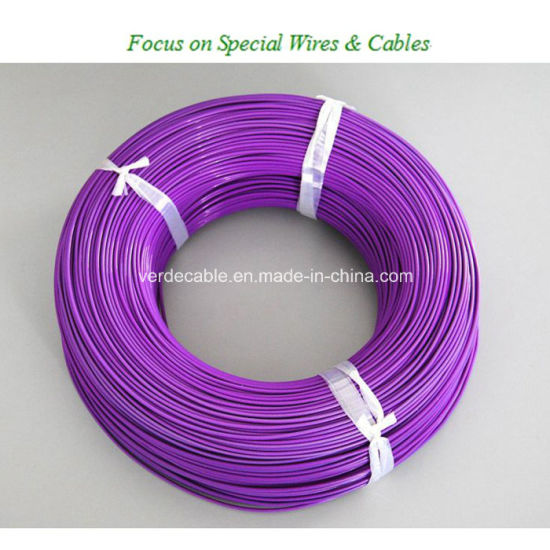

200ºC Heat resisting Auto cable Automotive wire for Internal using in the Car
1.Different Specification Automotive wire can be Customized by the client's special requirement.
2.OEM is available.
3.Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage
4.Technical Specification Type for Your choice
Type 1: FLRY-B
Flame Retardant Single core thin-wall Insulated wire
Temperature: -40'C ~+105'C
Conductor: bare copper stranded wires
Insulation: 105'C flame retardant PVC
Type 2: AV
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant PVC
Type 3: AVS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 4: AVS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 5: AVSS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 6: AVX
Temperature: -40'C ~+100'C
Conductor: bare copper stranded wires
Insulation: 105'C flame retardant PVC
Type 7: AEX (Heat resisting type)
Temperature: -40'C ~+120'C
Conductor: bare copper stranded wires
Insulation: 120'C Compounded XLPE
Type 8: QVR
Temperature: -25'C ~+70'C
Conductor: bare copper stranded wires
Insulation: 70'C flame retardant PVC
5.. Color:
red yellow blue green white black orange purple brown
different color according to the customer's request
6. One Parts of Specification for Automotive wire Auto cable
| Conductor | Insulation | |||
| Cross Section (mm2) | Structure | Diameter (mm) | Thickness | Overall. Dia. (mm) |
| (No./mm) | (mm) | |||
| 0.35 | 12/0.20 | 0.8 | 0.25 | 1.3 |
| 0.5 | 16/0.20 | 0.92 | 0.29 | 1.5 |
| 0.75 | 24/0.20 | 1.13 | 0.34 | 1.8 |
| 1 | 32/0.20 | 1.31 | 0.35 | 2 |
| 1.5 | 30/0.25 | 1.58 | 0.36 | 2.3 |
| 2.5 | 50/0.25 | 2.04 | 0.43 | 2.9 |
| 4 | 56/0.30 | 2.59 | 0.51 | 3.6 |
| 6 | 84/0.30 | 3.17 | 0.52 | 4.2 |
We list one parts of automotive wire we produce,if you want to know more information about automotive wire,pls send me email or telephone us:0086-13938400126
