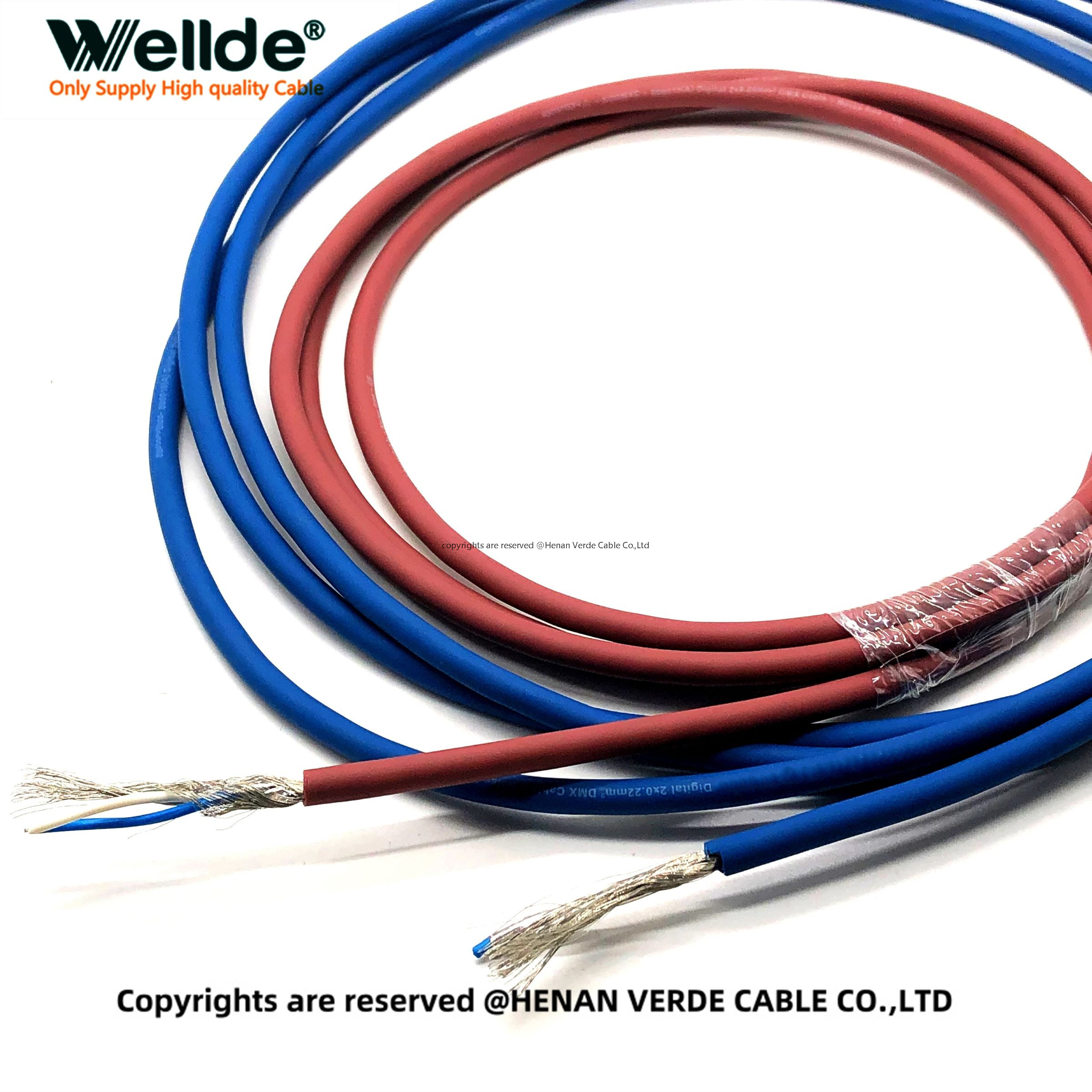

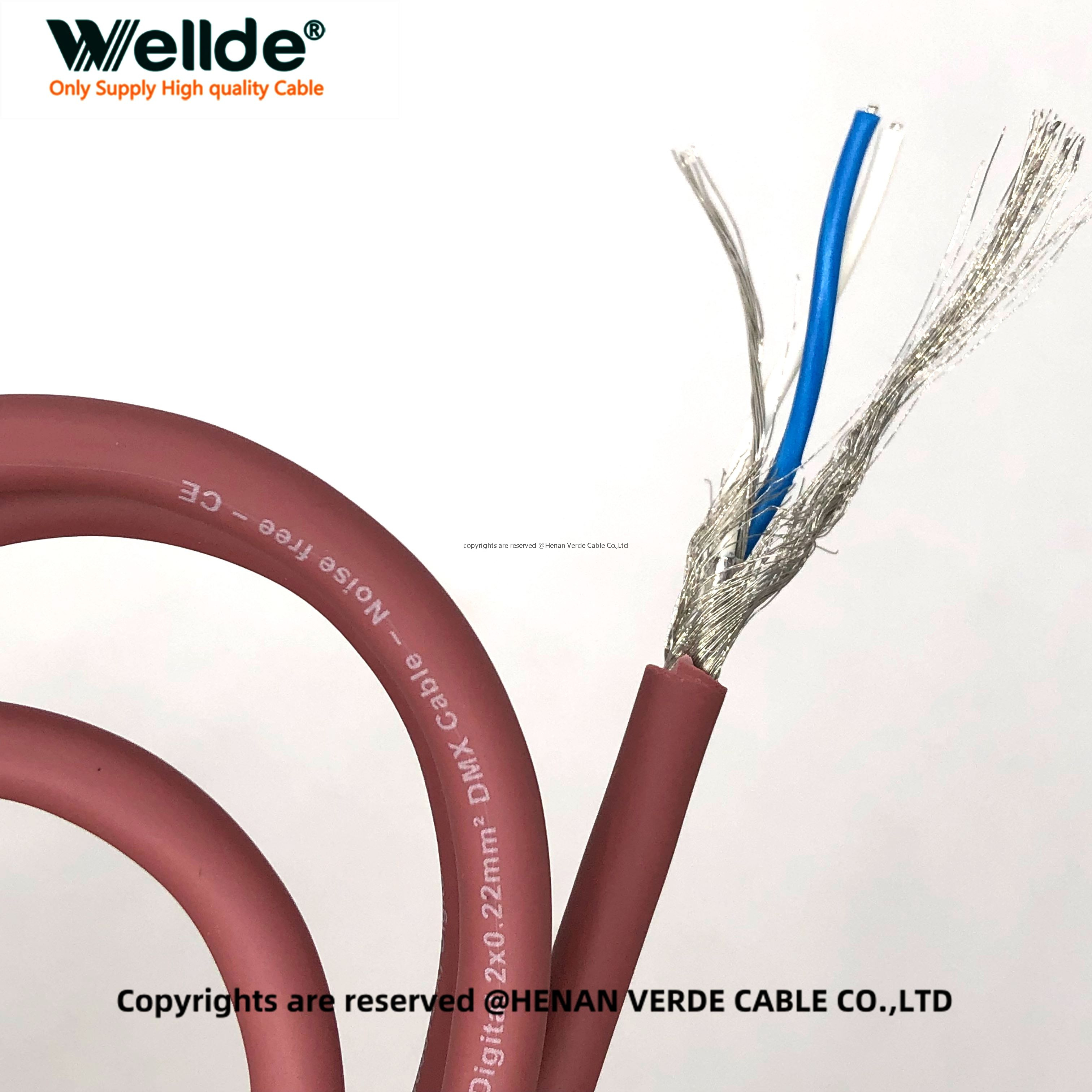

The cable uses high-purity tinned copper conductors to maintain low resistance and stable signal flow. This ensures precise and uninterrupted communication in digital DMX lighting systems .

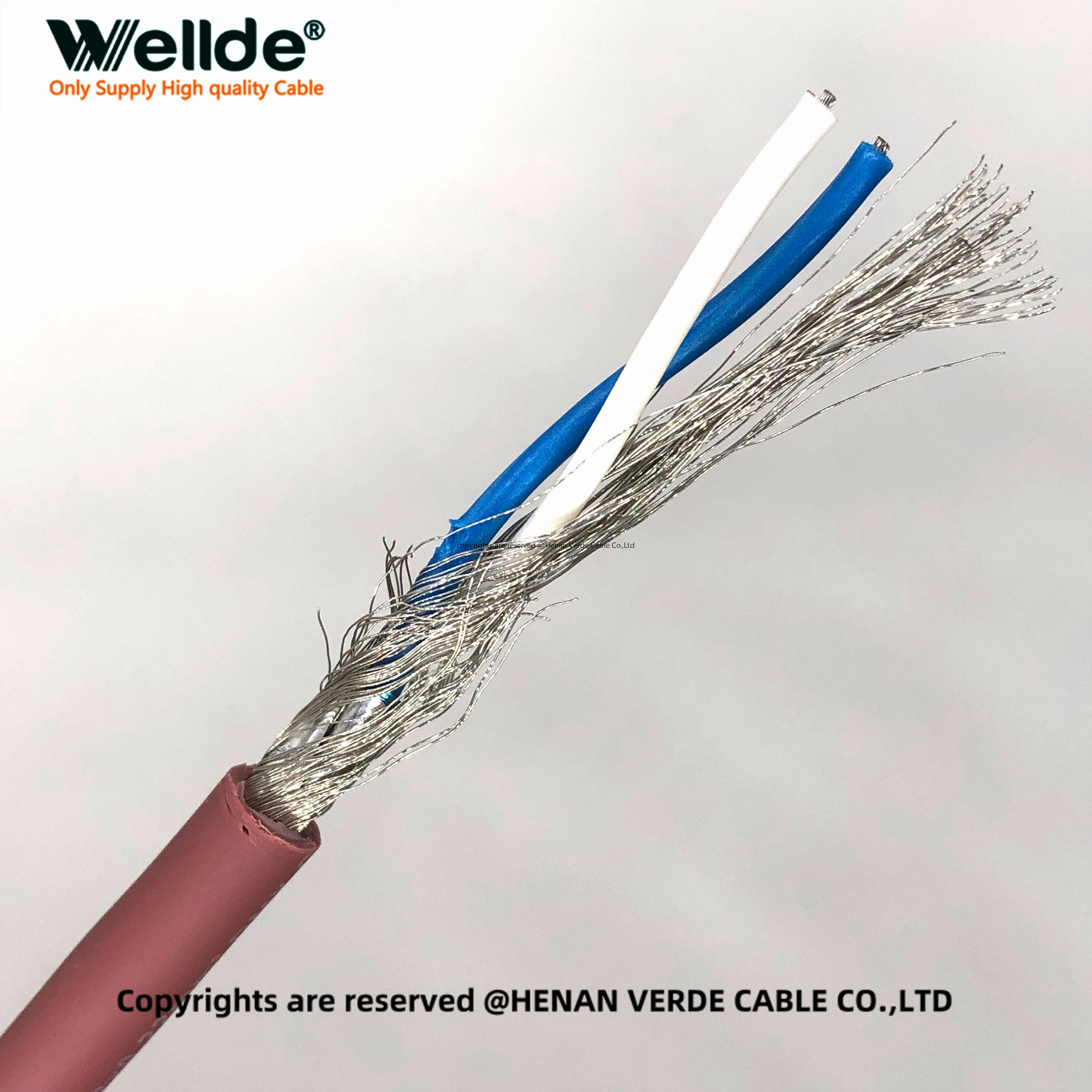

✅ Double Shielded Structure for Superior Interference Protection
Equipped with dual-layer shielding , this shielded twisted pair DMX cable effectively blocks electromagnetic interference (EMI), essential for stage lighting control and environments with high electronic noise.
✅ Twisted Pair Design & Flexible PVC Jacket for Easy Installation
The twisted pair structure minimizes crosstalk and signal distortion. Combined with a durable, flexible PVC jacket .
✅ Designed for Harsh Environments: Cold Resistant & Heat Tolerant
With a wide temperature range of -30°C to +105°C , this cold-resistant DMX cable performs reliably in both indoor and outdoor settings. It's an ideal choice for architectural lighting projects and mobile stage setups exposed to extreme conditions.
✅ 110Ω Impedance & CE Approved for Global Compatibility
Q1: Is this DMX cable compatible with DMX512 and DMX512-A systems?
Yes, this DMX512 signal cable fully supports both DMX512 and DMX512-A protocols, ensuring seamless integration with all standard lighting controllers and fixtures.
Q2: Can this cable be used outdoors or in mobile setups?
Absolutely. The cable features a cold-resistant PVC jacket and wide temperature tolerance (-30°C to +105°C), making it suitable for outdoor lighting systems , touring setups, or architectural installations.
Q3: What's the difference between this and a regular microphone or audio cable?
Unlike audio cables, this DMX cable has 110Ω impedance and double shielding , optimized for digital signal integrity and noise immunity required by lighting control systems.
Q4: Is custom length or OEM branding available?
Yes, we offer custom cable lengths , OEM branding , and packaging to meet project-specific or distributor requirements.
| Parameter | Specification |
|---|---|
| Conductor Material | Tinned Copper |
| Structure | 2 Conductors × 0.22mm² |
| Insulation | Foaming PE |
| Shielding | Double Shielded: Aluminum Foil + Tinned Copper Braid |
| Pairing | Twisted Pair Structure |
| Jacket Material | Flexible PVC |
| Impedance | 110 ±10 Ω (Ohms) |
| Rated Voltage | 300/500V |
| Operating Temperature | -30°C to +105°C |
| Cold Resistance | Yes (suitable for outdoor and low-temperature use) |
| Flame Retardant | Yes (PVC jacket is flame-retardant) |
| Color | Black (custom colors available on request) |
| Outer Diameter | Approx. 4.5mm ~ 5.0mm (depending on jacket type) |
| Certifications | CE compliant |
| Standards | Compliant with DMX512 / DMX512-A protocol |
| Packaging | 100m, 200m, or custom roll length |
| OEM/ODM | Available |
