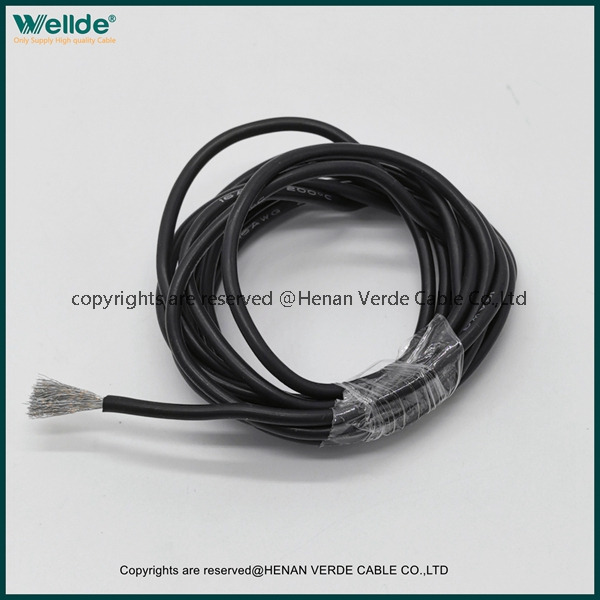

Silicone Cable
Wellde
Silicone Insulated and Silicone Sheathed Flexible Cable High Temperauter Resistantance Wire Cable
Rated voltage 300/500V,450/750V Conductor class: class5
Conductor material: Stranded Copper or Stranded Tinned Copper
Insulation: PVC or Rubber
Sheathing: PVC or Rubber
Specification:
Core Number:1, 2, 3, 4, 5
Section Area:0.5mm2, 0.75mm2, 1.0mm2, 1.5mm2, .............16mm2,25mm,........185mm2
Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request
More specification can be Customized as per the customer's request.
Sectional | Conductor | Diameter mm | Insulation Thickness mm | Pleach Thickness mm | Outer | Max.Conductor | M/coil |
1.0 | 32×0.20 | 1.30 | 0.60 | 0.15 | 3.00 | 20.0 | 200 |
1.5 | 48×0.20 | 1.64 | 0.70 | 0.20 | 3.50 | 13.7 | 100 |
2.5 | 49×0.25 | 2.10 | 0.80 | 0.20 | 4.10 | 8.2 | 100 |
4.0 | 56×0.30 | 2.80 | 0.80 | 0.20 | 4.80 | 5.09 | 100 |
6.0 | 84×0.30 | 3.60 | 0.80 | 0.20 | 5.60 | 3.39 | 100 |
10 | 84×0.40 | 4.60 | 1.00 | 0.25 | 7.10 | 1.95 | 100 |
16 | 126×0.40 | 5.80 | 1.20 | 0.30 | 8.80 | 1.24 | 100 |

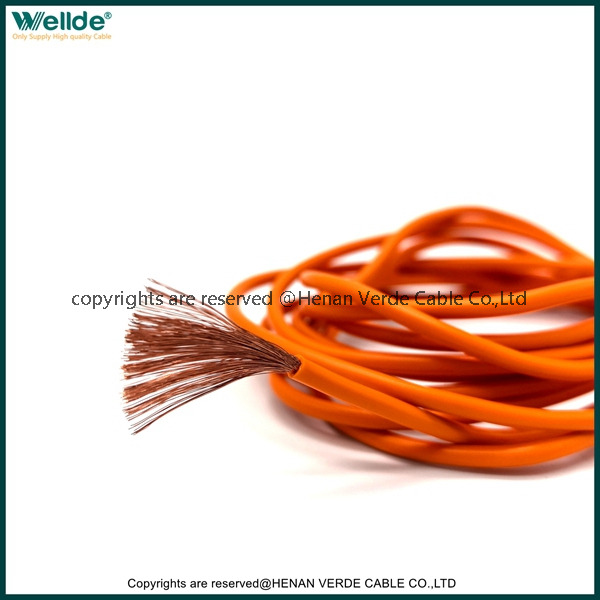

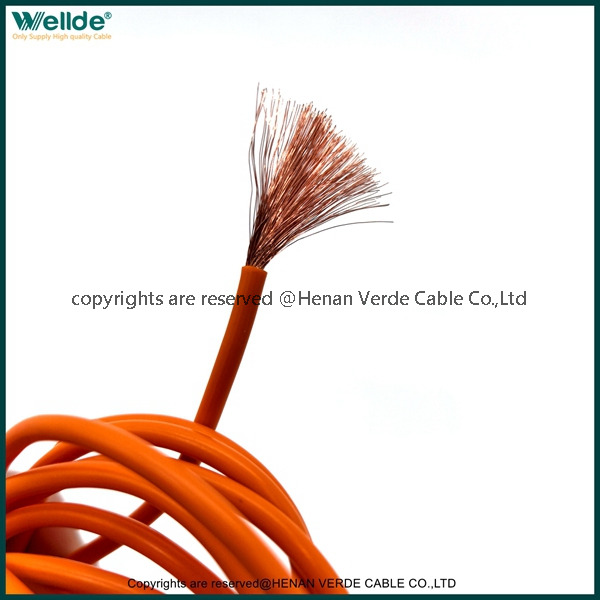

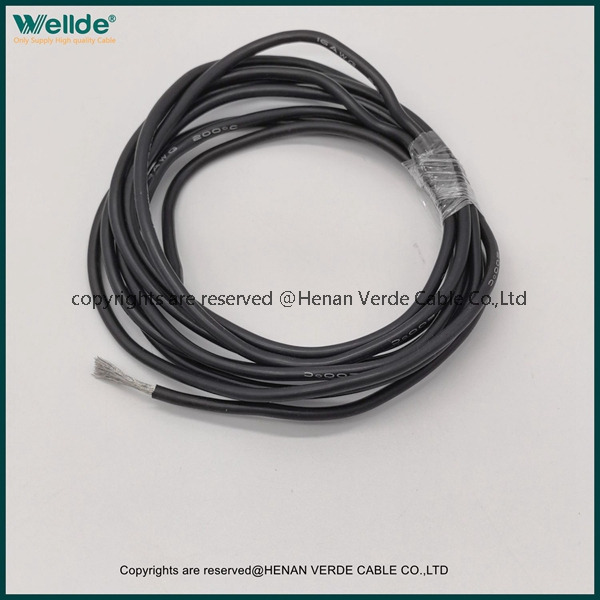

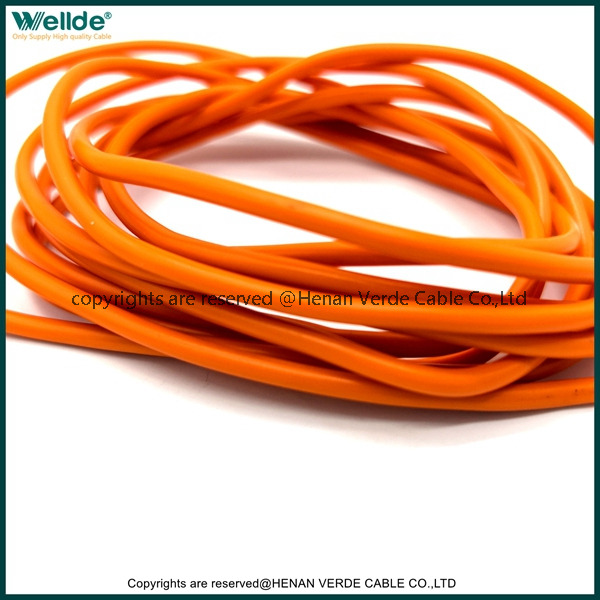

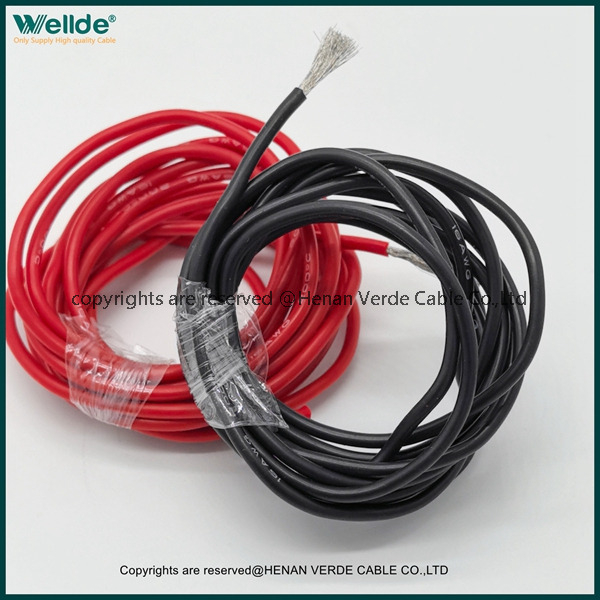

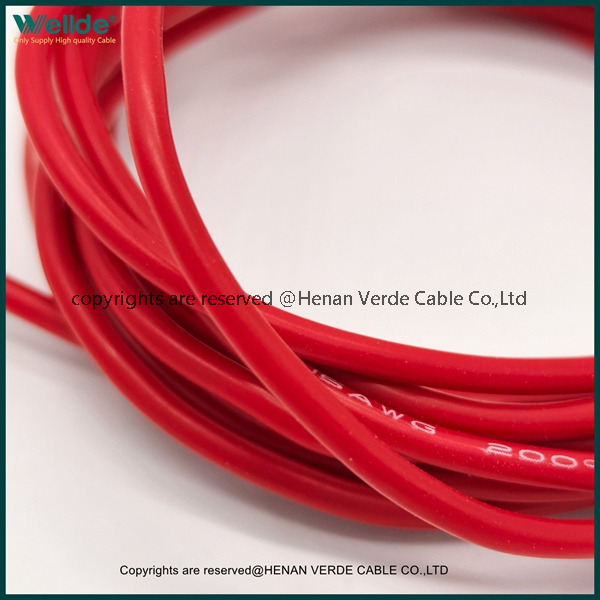

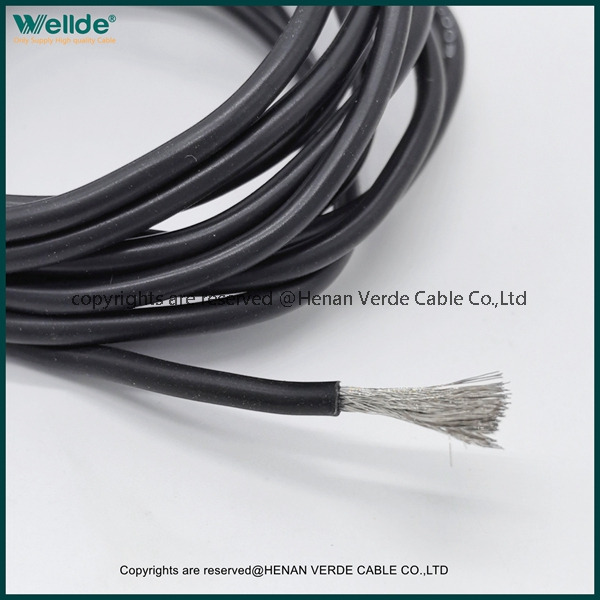

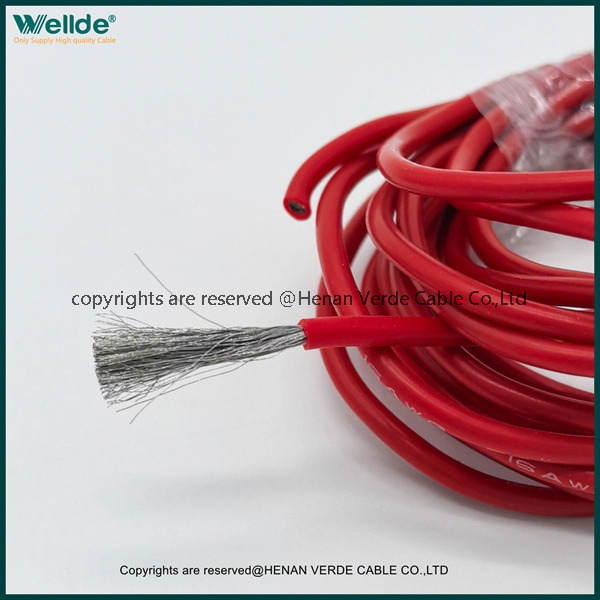

Detail images
Here just listed parts of specifications,if you want to know more relative cables,pls send us e-mail or other ways to contact us.
